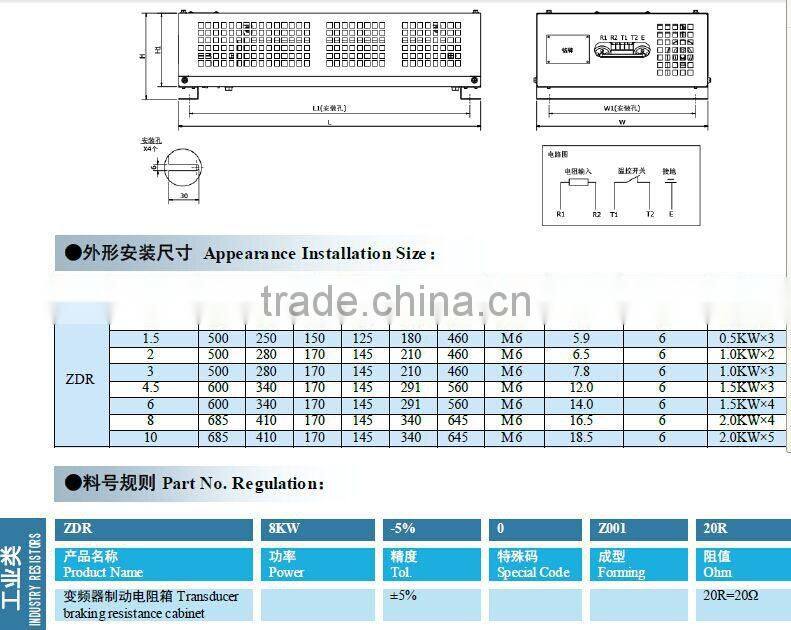

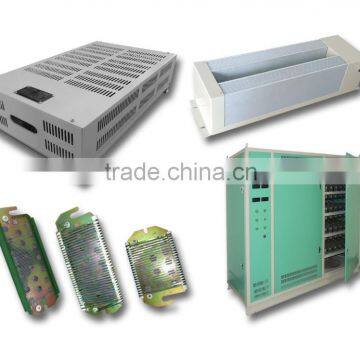

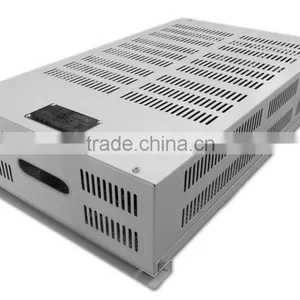

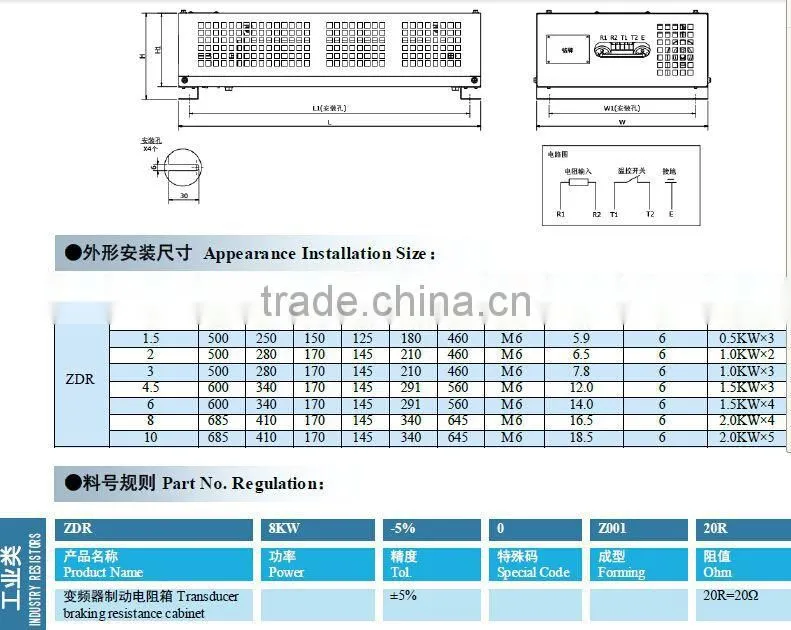

ZDR High voltage Transducer Braking Resistance Power Cabinet
This resistance cabinet is made of ripple resistors,apply to high power,high current braking equipments, test equipments ,
elevators,cranes dynamic braking circuit.The operating voltage is DC 500v-2000v .Rated power is 1KW-10KW.
1, Power range: 1KW-10KW
2, Voltage range: 0.5KV-2KV can choose
3, Resistance value range: 1R-10KR
4, Withstand voltage: 2.5KV-5KV/1min 50Hz can choose
5, IP Level: IP20
6, Vibration: 0.5g
7, Heat dissipation Method :Natural cooling
8, Rated Temperature rise:375℃
9, Temperature excursion: 80-400ppm/℃
10,Transfer fluid material: 0Cr25AL5/Ni80Cr20 can choose
11,Advantage: Higher Voltage
12,Disadvantage:Low Power, and weak antiknock characteristic
13,Packaging:Carton packaging
