Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > HVG High 1/2W to 200 Watt Voltage Glaze Resistors

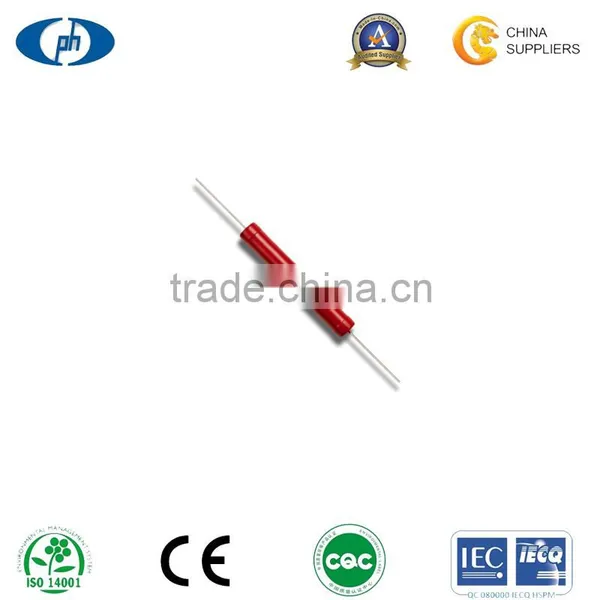

HVG High 1/2W to 200 Watt Voltage Glaze Resistors

Name: HVG High 1/2W to 200 Watt Voltage Glaze Resistors
Brand: PakHeng
SKU: 135030477
Availability: InStock

HVG High 1/2W to 200 Watt Voltage Glaze Resistors thumbnail-1

HVG High 1/2W to 200 Watt Voltage Glaze Resistors photo-1

Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

PakHeng

Model Number:

HVG

Contact Supplier Request Quote Chat Now

Shenzhen Pak Heng Electronics Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hk

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name PakHeng

Model Number HVG

Type Fixed Resistor

Technology Thick Film

Package Type Surface Mount

Resistance 100K~2000M

Resistance Tolerance 5%,10%

Rated Power 1/2W,1W,2W,80W,100W,200W

Temperature Coefficient 400ppm/℃

Operating Temperature high

HVG High 1/2W to 200 Watt Voltage Glaze Resistors

1, Thick filming resulted in high surge-resist & stability.

2, Operating ambient temperatur: -55℃~+125℃.

3, High resistance value and working voltage.

4, Good high-frequency performance.

5, Resistance tolerance: 5%,±10%.

Construction Drawing:

A, Ceramic core

B, Glaze resistive Film

C, Tinned copper lead wire or screw

D, Protective coating

E, Iron Cap

Dimensions and Voltage Performance:

Part No.	Power	Resistance range	Dimensions				Max. working voltage	Max.insulation voltage
Part No.	Power	Resistance range	L(max.)	D(max.)	d±0.05	L1±3	Max. working voltage	Max.insulation voltage
HVG012	1/2W	1M~1000M	28.0	6.0	0.8	30.0	8KV	8KV
HVG01B	1W	100K~1000M	30.0	9.0	1.0	30.0	10KV	10KV
HVG02B	2W	100K~2000M	50.0	9.0	1.0	30.0	15KV	15KV
HVG03B	3W	100K~2000M	50.0	9.0	1.0	30.0	15KV	15KV
HVG05B	5W	100K~2000M	70.0	11.0	1.0	30.0	20KV	20KV
HVG08B	8W	100K~2000M	100.0	11.0	1.0	30.0	25KV	25KV
HVG10B	10W	1M~2000M	147.0	11.0	M4	6.0	35KV	35KV
HVG20B	20W	100K~100M	120.0	18.0	M5	10.0	30KV	30KV
HVG30B	30W	100K~100M	120.0	20.0	M5	10.0	30KV	30KV
HVG50B	50W	100K~100M	120.0	22.0	M6	10.0	30KV	30KV
HVG80B	80W	100K~51M	135.0	28.0	M8	10.0	30KV	30KV
HVG100	100W	100K~51M	170.0	28.0	M8	10.0	35KV	35KV
HVG200	200W	100K~51M	320.0	33.0	M10	10.0	80KV	80KV

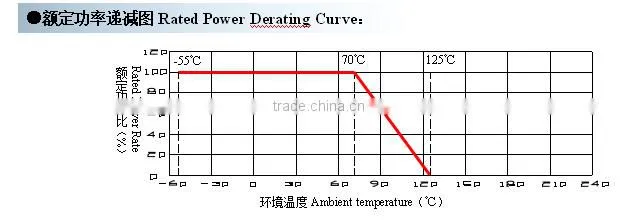

Performance Test:

Test Item	Test Condition	Performance
Temperature coefficient	Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate .	±400ppm/℃
Short time overload	2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds.	ΔR≤±(2%R0+0.05Ω)
Pulse overload	At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ).	ΔR≤±(1%R0+0.05Ω)
Resistance to soldering heat	Immerge into 350±10℃ tin stove for 2~3 seconds.	ΔR≤±(1%R0+0.05Ω)
Solderability	Immerge into 245±3℃ tin stove for 2~3 seconds.	The area of soldering is over 95%
Temperature cycling	At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles.	ΔR≤±(1%R0+0.05Ω)
Load life in humidity	Overload rated voltage or ing voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity.	ΔR≤±(5%R0+0.05Ω)
Load life in heat	Overload rated voltage or ing voltage (get the lower ) for 1000 hours (1.5 hours on and half-hour off) at the 70±2℃.	ΔR≤±(5%R0+0.05Ω)
Nonflammability	Respectively load AC voltage by 5,10,16 times rared power for 5 minutes.	No visible flame.
