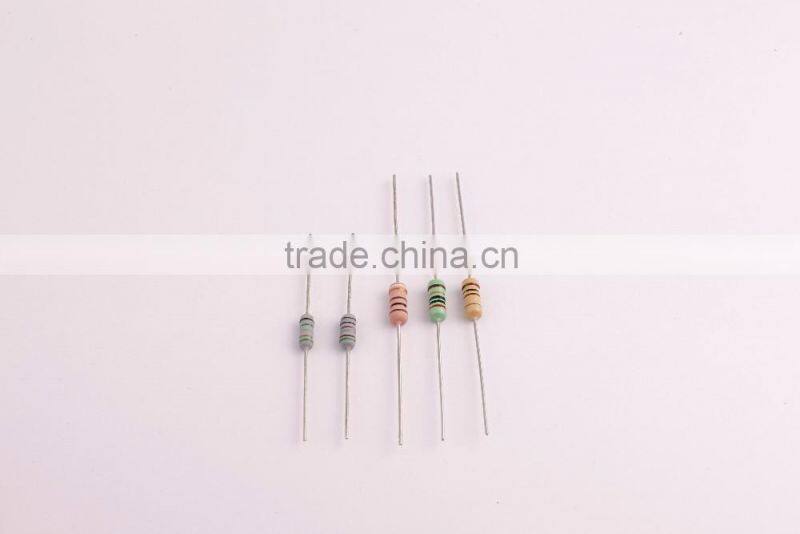

Shenzhen Led Display Nonflatmmable Carbon Film Resistor
1, Stable performance, extensive resistance, small size,high operating temperature and high ultimate voltage.
2, Highly adaptive pulse load, good high frequency performance.
3, Operating ambient temperature: -55℃~+125℃.
4,The surface is nonflammable, the normal size coating is birck red and the small size coating is green.
5,Resistance tolerance:±2%,±5%,±10%.
A, High heat exchanged Ceramic core.
B, High stability Electric conduction film.
C, Iron Cap.
D, Silicon resin coating.
E, Color Ring.
F, Tinned copper lead wire or CP lead wire.
Dimensions and Voltage Performance:
|
Part No. |
Power |
Resistance range |
Dimensions(mm) |
ing voltage |
Max.overload voltage |
Max.Pulse voltage |
voltage |
||
L±1 |
D±0.5 |
d±0.05 |
|||||||
|
HCC016 HCR016 |
1/6W |
0R~22M |
3.5 |
1.7 |
0.41 |
200V |
400V |
500V |
220V |
|
LCC14S LCR14S |
1/4WS |
0R~22M |
3.5 |
1.7 |
0.41 |
200V |
400V |
500V |
220V |
|
HCC014 HCR014 |
1/4W |
0R~22M |
6.0 |
2.3 |
0.45 |
250V |
500V |
750V |
300V |
0.52 | |||||||||
|
LCC12S LCR12S |
1/2WS |
0R1~22M |
6.0 |
2.3 |
0.45 |
250V |
500V |
750V |
300V |
0.52 | |||||||||
HCR012 |
1/2W |
0R1~22M |
9.0 |
3.2 |
0.58 |
350V |
700V |
1000V |
500V |
LCR01S |
1WS |
0R1~22M |
9.0 |
3.2 |
0.58 |
350V |
700V |
1000V |
500V |
HCR01B |
1W |
0R1~22M |
11.0 |
4.5 |
0.75 |
500V |
1000V |
1000V |
710V |
LCR02S |
2WS |
0R1~22M |
11.0 |
4.5 |
0.75 |
500V |
1000V |
1000V |
710V |
HCR02B |
2W |
0R1~22M |
15.0 |
5.0 |
0.75 |
500V |
1000V |
1000V |
710V |
LCR03S |
3WS |
0R1~22M |
15.0 |
5.0 |
0.75 |
500V |
1000V |
1000V |
710V |
HCR03B |
3W |
0R1~22M |
24.0 |
8.0 |
0.75 |
700V |
1200V |
1200V |
1000V |
LCR05S |
5WS |
0R1~22M |
24.0 |
8.0 |
0.75 |
700V |
1200V |
1200V |
1000V |
If the calculated rated voltage is higher than the max. working voltage, it will be got the lower value. |
Nonflammable Carbon Film Resistors(LCR/HCR/LCC/HCC)
Features:
1,Stable performance, extensive resistance, small size, high operating temperature and high ultimate voltage.
2, Highly adaptive pulse load, good high frequency performance
3, Operating ambient temperature:-55 to +125.
4, The surface is nonflammable, the normal size coating is brick red and the small size coating is green.
5, Resistance tolerance:±2%,±5%,±10%.
Performance Test:
Test Item Test Condition Performance
Temperature coefficient ±1000ppm/
Solerability The soldering area is over 95%
Temperature cycling R≤±(1% R0+0.05R)
Load life in humidity R≤±(5% R0+0.05R)
(LCR/HCR)Nonflammable carbon film Resistors |
|
±5% ±2% ±10% |
0R1-22M |
Load life in heat R≤±(5% R0+0.05R)
Nonflammability No visible flamme
