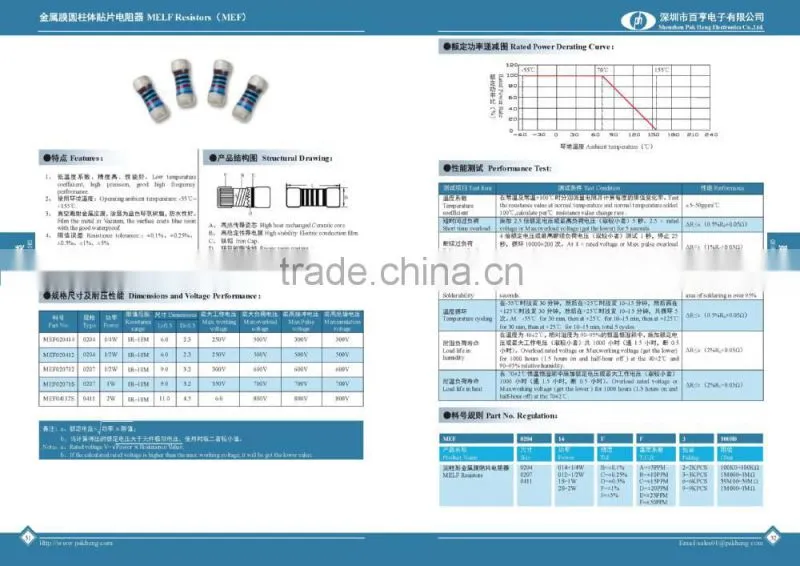

High Precisioin Melt Chip 2R 30R 40R 50R 10R 500 ohm Resistor
MELF RESISTORS
1,low temperature coefficient, high precision, good high frequency performance.
2,Operating ambient temperature: -55 to +155.
3,Film the metal in Vacuum, the surface coats blue resin with the good waterproof.
4, ±0.1%, ±0.25%,±0.5%,±1%.±5%
Performance Test:
Test Item Test Condition Performance
Temperature coefficient ±5-50ppm/
Short time overload R≤±(0.5%R0+0.05R)
Pulse overload R≤±(1% R0+0.05R)
Resistance to soldering heat R≤±(0.5% R0+0.05R)
Solerability The soldering area is over 95%
Temperature cycling R≤±(0.5% R0+0.05R)
Load life in humidity R≤±(2% R0+0.05R)
Load life in heat R≤±(2% R0+0.05R)
Description |
Size |
Tolerance |
Range |
||
|
GRM Chip Resistors |
0201 0402 0603 0805 1206 1210 2010 2512 (0603 1005 1608 2012 3216 3225 5025 6432) |
±5% ±1% |
0R-22M |
||
|
PRM High Precision Chip Resistors |
0402 0603 0805 1206 1210 2010 2512 (1005 1608 2012 3216 3225 5025 6432) |
±0.5% ±0.25% ±0.1% |
10R-1M |
||
|
MEF Melf Resistors |
0204 0207 |
±1% ±0.5%±0.25% ±0.1%
|
1R-10M |
||
|
RCM Chip Array Resistors |
0402:4P-2R 8P-4R 0603: 4P-2R 8P-4R 10P-8R 16P-8R |
±5% ±1% |
10R-1M |
||
|
GRA Array Resistors |
1/8W: 4P-14P |
±5% ±2% ±1% |
10R-1M |
||
|
|
|
|||
