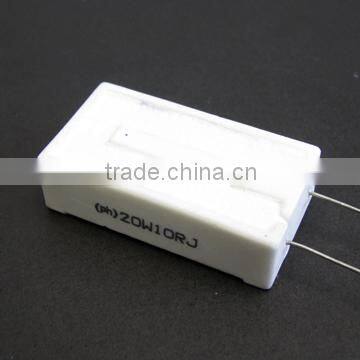

Neutral Grounding SQM 1R 10R to 100K ohm Cement Electric Resistor
Cement Resistors(RX/BRX/HRX)
1,Good heat-durability,low temperature coefficient,low noise,high load power,high insulating capacity
2,Operating ambient temperature:-55°C to +275°C
3,Resistance tolerance:±1%,±2%, ±5%,±10%
Forming Type & Power:
SQP:1W-11W,15W,17W,20W,25W
SBH:5W-11W,15W,17W,20W,25W
SQM:1W-11W,15W,20W
SQS:5W,7W,10W,15W,20W,25W
SQO:4W,5W,6W,7W,8W
SQZ:3W-11W,15W,17W,20W,25W
SQH:3W-11W,15W,17W,20W,25W,30W,40W,50W,100W
SHG:10W,11W,15W,20W,25W,30W,40W
Z4-16,Z5-16:4W,10W
ZC-11:5W
M450:80W
Tolerance:±1%,±2%, ±5%, ±10%
Range:0R01-30K
Description |
Forming Type |
Size |
Tolerance |
Range |
|
RX/BRX/HRX Cement Resistors
NRX Non-inductive Cement Resistors
|
SQP |
1W-11W,15,17W,20W,25W |
±5% ±1% |
RX/BRX/HRX 0R01-100K
NRX:0R1-47R |
SBH |
5W-11W,15,17W,20W,25W |
|||
SQM |
1W-11W,15,17W,20W |
|||
SQS |
5W,7W,10W,15W,20W,25W |
|||
SQO |
4W,5W,6W,7W,8W |
|||
SQZ |
3W-11W,15,17W,20W,25W |
|||
SQH |
3W-11W,15,17W,20W,25W 30W,40W,50W,100W |
|||
SHG |
10W,11W,15W,20W,25W,30W,40W |
|||
Z4-16, Z5-16 |
4W,10W |
|||
ZC-11 |
5W |
|||
M450 |
80W |
|||
E |
2W,3W,5W,7W,10W, 2W+2W,3W+3W,5W+5W,7W+7W |
|||
|
MPR Metal Plate Non-inductive Cement Resistors
|
EC |
5W |
±5% ±10% |
0R01-4R7 |
|
Heated Cement Resistors
|
B |
16W |
±5% ±10% |
0R1-220R |
|
Temperature Fuse Cement Resistors
|
M |
5W,7W,10W |
±5% ±10% |
0R1-47K |

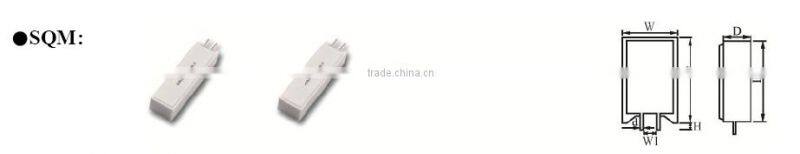

Part No. |
Power |
Dimensions(mm) |
Resistance range |
||||||||
L±1.5 |
W±1 |
D±1 |
H±1 |
d±0.05 |
W1±1 |
RXR |
BRX |
HRX |
NRX |
||
RXR01B(NRX) |
1W |
10.0 |
10.0 |
5.2 |
3.5 |
0.65 |
4.0 |
0R1~100R |
|
|
0R2~2R7 |
RXR02B(HRX/NRX) |
2W |
20.5 |
11.0 |
7.0 |
4.0 |
0.75 |
4.0 |
0R1~820R |
|
560R~100K |
0R1~10R |
RXR03B(BRX/HRX/NRX) |
3W |
25.0 |
12.0 |
8.0 |
4.0 |
0.75 |
4.0 |
0R1~3K3 |
1R~120R |
560R~100K |
0R1~27R |
RXR04B(BRX/HRX/NRX) |
4W |
25.0 |
13.0 |
10.0 |
4.0 |
0.75 |
4.0 |
0R1~3K3 |
1R~120R |
560R~100K |
0R1~27R |
RXR05B(BRX/HRX/NRX) |
5W |
25.0 |
13.0 |
10.0 |
4.0 |
0.75 |
4.0 |
0R1~3K3 |
1R~120R |
560R~100K |
0R1~27R |
RXR06B(BRX/HRX/NRX) |
6W |
39.0 |
13.0 |
10.0 |
4.0 |
0.75 |
4.0 |
0R1~7K5 |
1R~390R |
820R~100K |
0R2~39R |
RXR07B(BRX/HRX/NRX) |
7W |
39.0 |
13.0 |
10.0 |
4.0 |
0.75 |
4.0 |
0R1~7K5 |
1R~390R |
820R~100K |
0R2~39R |
RXR08B(BRX/HRX/NRX) |
8W |
39.0 |
13.0 |
10.0 |
4.0 |
0.75 |
4.0 |
0R1~7K5 |
1R~390R |
820R~100K |
0R2~39R |
RXR09B(BRX/HRX/NRX) |
9W |
51.0 |
13.5 |
10.0 |
4.0 |
0.75 |
4.0 |
0R1~12K |
1R~470R |
1K~100K |
0R2~47R |
RXR10B(BRX/HRX/NRX) |
10W |
51.0 |
13.0 |
10.0 |
4.0 |
0.75 |
4.0 |
0R1~12K |
1R~470R |
1K~100K |
0R2~47R |
RXR11B(BRX/HRX/NRX) |
11W |
51.0 |
13.0 |
10.0 |
4.0 |
0.75 |
4.0 |
0R1~12K |
1R~470R |
1K~100K |
0R2~47R |
RXR10S(BRX/HRX/NRX) |
10Ws |
35.0 |
16.0 |
9/12 |
5.0 |
0.75 |
8.0 |
0R1~6K2 |
1R~330R |
560R~100K |
0R1~33R |
RXR15S(BRX/HRX/NRX) |
15Ws |
35.0 |
16.0 |
9/12 |
5.0 |
0.75 |
8.0 |
0R1~6K2 |
1R~330R |
560R~100K |
0R1~33R |
RXR15B(BRX /NRX) |
15W |
51.0 |
13.0 |
10.0 |
4.0 |
0.75 |
4.0 |
0R1~12K |
1R~470R |
|
0R2~47R |
RXR20B(BRX /NRX) |
20W |
35.0 |
16.0 |
9/12 |
5.0 |
0.75 |
8.0 |
0R2~12K |
1R~660R |
|
0R2~66R |
RXR20B(BRX /NRX) |
20W |
49.0 |
20.0 |
10.0 |
4-15 |
0.75 |
8.0 |
0R2~12K |
1R~660R |
|
0R2~66R |
