Home > Products > Cement Resistors > MPR 5W+5W 7W 10W Metal Plate Noninductive Cement Resistor

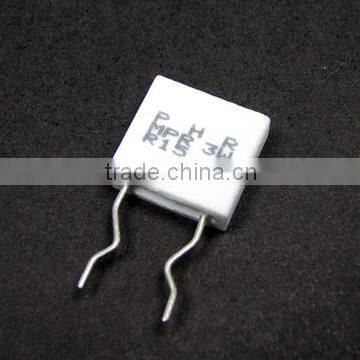

MPR 5W+5W 7W 10W Metal Plate Noninductive Cement Resistor

FOB Price

Negotiable / Piece

2000 Pieces(Min. Order)

Port Shenzhen Hongkong
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Pak Heng
Model Number	MPR5W+5W	Type	Fixed Resistor
Technology	Cermet	Package Type	Throught Hole
Resistance	0.01ohm to 4.7K ohm	Resistance Tolerance	± 5%, ± 10%
Rated Power	5W + 5W	Temperature Coefficient	350ppm
Operating Temperature	-55C to +275C

Packaging Details

E frank and bend forming tpye for cement resistor

Product Description

MPR 5W+5W 7W 10W Metal Plate Noninductive Cement Resistor

Metal Plate Noninductive Cement Resistors(MPR)

1.Operating ambient temperature: -55C to +275C
2.Low inductance. Resistance tolerance: ± 5%, ± 10%

3.Low inductance
4.Range: 0R01-4R7

Forming Type & Power:
E: 2W, 3W, 5W, 7W, 10W, 2W+2W, 3W+3W, 5W+5W, 7W+7W
EC: 5W

E Frank Forming Type Dimensions:

Part No.	Power	Resistance range	Dimensions (mm)						Max. working Voltage	Max.overload Voltage	Max.insulation Voltage
			A±1.5	B±1.5	C±1.5	H±1.5	P±1.5	d±0.05
MPR02B	2W	0R01~2R2	8.5	14.0	5.0	4~18	9.0	0.75	100V	100V	800V
MPR03B	3W	0R01~2R2	13.0	14.0	5.0	4~18	9.0	0.75	100V	100V	800V
MPR05B	5W	0R01~2R7	18.0	14.0	5.0	4~18	9.5	0.75	150V	150V	1000V
MPR07B	7W	0R01~2R7	18.0	14.0	5.0	4~18	9.5	0.75	150V	150V	1000V
MPR10B	10W	0R01~4R7	17.0	26.0	5.0	4~18	20.0	0.75	300V	300V	1000V
MPR2B2	2W+2W	0R01~4R7	10.0	26.0	5.0	4~18	10.0	0.75	200V	200V	1000V
MPR3B3	3W+3W	0R01~4R7	13.0	26.0	5.0	4~18	10.0	0.75	250V	250V	1000V
MPR5B5	5W+5W	0R01~4R7	17.0	26.0	5.0	4~18	10.0	0.75	300V	300V	1000V
MPR7B7	7W+7W	0R01~4R7	20.0	26.0	5.0	4~18	10.0	0.75	350V	350V	1000V
MPR5B5	5W+5W (EA type)	0R01~4R7	14.0	26.0	8.0	4~18	10.0	0.75	350V	350V	1000V

E Bend Forming Type Dimensions:

Part No.	Power	Resistance range	Dimensions (mm)						Max. working Voltage	Max.overload Voltage	Max.insulation Voltage
			A±1.5	B±1.5	C±1.5	H±1.5	P±1.5	d±0.05
02B	2W	0R01~2R2	8.5	14.0	5.0	13.0	9.0	0.75	100V	100V	800V
03B	3W	0R01~2R2	13.0	14.0	5.0	13.0	9.0	0.75	100V	100V	800V
05B	5W	0R01~2R7	18.0	14.0	5.0	13.0	9.5	0.75	150V	150V	1000V
07B	7W	0R01~2R7	18.0	14.0	5.0	13.0	9.5	0.75	150V	150V	1000V
10B	10W	0R01~4R7	17.0	26.0	5.0	13.0	20.0	0.75	300V	300V	1000V
2B2	2W+2W	0R01~4R7	10.0	26.0	5.0	13.0	10.0	0.75	200V	200V	1000V
3B3	3W+3W	0R01~4R7	13.0	26.0	5.0	13.0	10.0	0.75	250V	250V	1000V
5B5	5W+5W	0R01~4R7	17.0	26.0	5.0	13.0	10.0	0.75	300V	300V	1000V
7B7	7W+7W	0R01~4R7	20.0	26.0	5.0	13.0	10.0	0.75	350V	350V	1000V
5B5	5W+5W (EA type)	0R01~4R7	14.0	26.0	8.0	13.0	10.0	0.75	350V	350V	1000V

EC Frank Forming Type Dimensions:

Part No.	Power	Resistance range	Dimensions (mm)						Max. working Voltage	Max.overload Voltage	Max.insulation Voltage
			A±1.5	B±1.5	C±1.5	H±1.5	P±1.5	d±0.05
05B	5W	0R01~2R7	18.0	16.0	8.5	4~18	10	0.75	150V	150V	1000V

EC Bend Forming Type Dimensions:

Part No.	Power	Resistance range	Dimensions (mm)						Max. working Voltage	Max.overload Voltage	Max.insulation Voltage
			A±1.5	B±1.5	C±1.5	H±1.5	P±1.5	d±0.05
05B	5W	0R01~2R7	18.0	16.0	8.5	13.0	10	0.75	150V	150V	1000V

Performance Test:

Test Item	Test Condition	Performance
Temperature coefficient	Test the resistance value at normal temperature added 100℃,calculate per ℃ resistance value rate.	±350ppm/℃
Short time overload	2~4W:According 5 times rated voltage ,5~10W: According 10 times rated power to account the voltage or max .overload voltage (get the lower)for 5 seconds.	ΔR≤±(2%R0+0.05Ω)
Resistance to soldering heat	Immerge into the 350±10℃ tin stove for 2~3 seconds.	ΔR≤±(1%R0+0.05Ω)
Solderability	Immerge into the 245±3℃ tin stove for 2~3 seconds.	The soldering area is over 95%
Temperature cycling	At -55℃ for 30 min,then at +25℃ for 10~15 min,then at +275℃ for 30 min,then at +25℃ for 10~15min, total 5 cycles.	ΔR≤±(1%R0+0.05Ω)
Load life in humidity	Overload rated voltage or Max. working voltage(get the lower)for 1000 hours (1.5 hours on and half-hours off) at the 40±2℃ and 90~95% relative humidity.	ΔR≤±(5%R0+0.05Ω)
Load life in heat	Overload rated voltage or Max. working voltage(get the lower)m for 1000 hours (1.5 hours on and half-hours off) at the 70±2℃.	ΔR≤±(5%R0+0.05Ω)
Nonflammability	Respectively load AC voltage by5,10,16 times rated power for 5 min.	No visible flame

Part No. Regulation:

MPR

05B

E001

1R100

Product Name

Power

Tol.

SpecialCode

Forming

Ohm

Metal plate Non-inductive

cement resistors

02B=2W

05B=5W

2B2=2W+2W

03B=3W

07B=7W

3B3=3W+3W

J=±5%

K=±10%

E001=E7

E002=E13-4

E003=EC

0R100=0.1Ω

1R000=1Ω

4R700=4.7Ω

Cement Resistor
