china wholesale websites SQM Type Heater 5w ceramic 10k ohm resistor

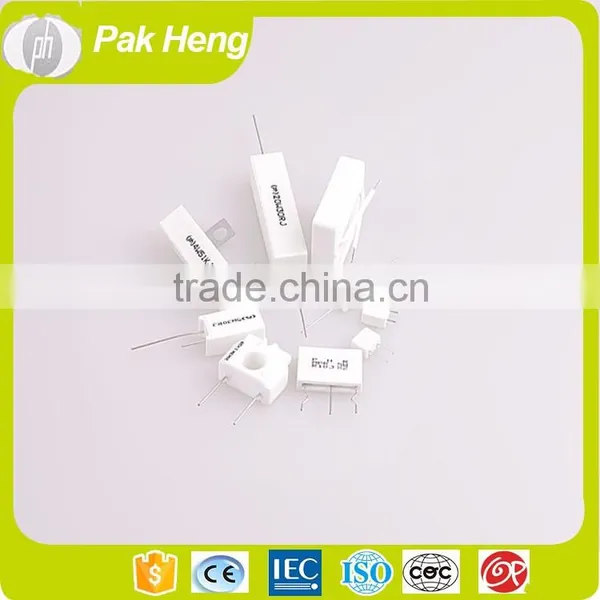

Cement Resistors
1,Good heat-durability,low temperature coefficient, low noise,high load power,high insulating capacity.
2,Operating ambient temperature:-55 to +275
3,Resistance tolerance:±1%, ±2% ±5%, ±10%
Performance Test:
Test Item Test Condition Performance
Temperature coefficient ±300ppm/
Short time overload R≤±(2%R0+0.05R)
Resistance to soldering heat R≤±(1% R0+0.05R)
Solerability The soldering area is over 95%
Temperature cycling R≤±(1% R0+0.05R)
Load life in humidity R≤±(5% R0+0.05R)
Load life in heat R≤±(5% R0+0.05R)
Nonflammability No visible flame
Description |
Forming Type |
Size |
Tolerance |
Range |
|

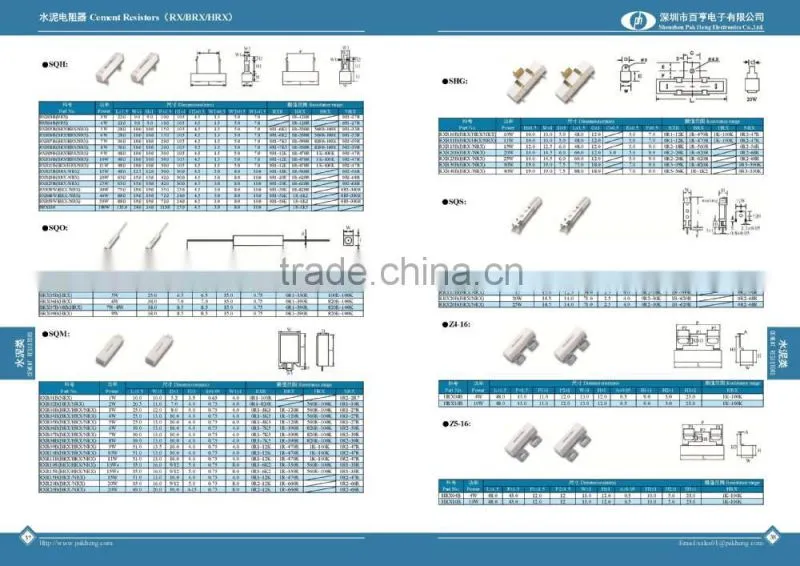

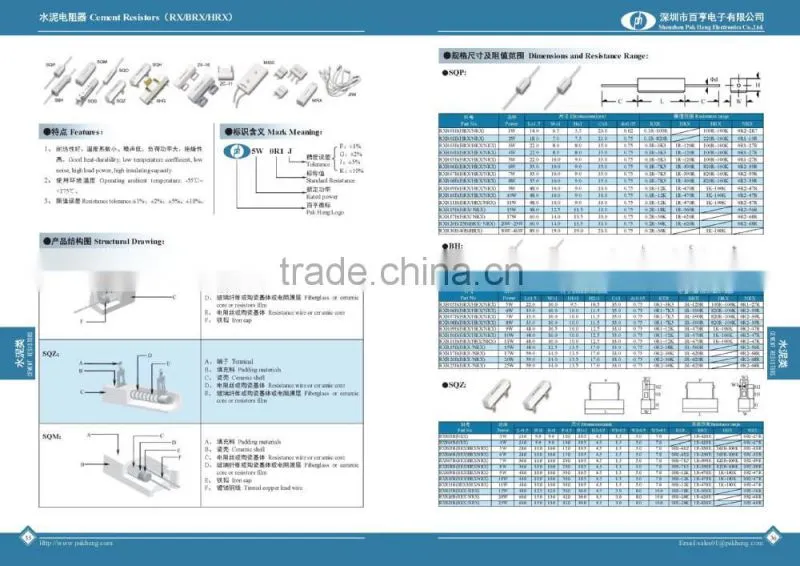

RX/BRX/HRX Cement Resistors
NRX Non-inductive Cement Resistors
|
SQP |
1W-11W,15,17W,20W,25W |
±5% ±1% |
RX/BRX/HRX 0R01-100K
NRX:0R1-47R |
SBH |
5W-11W,15,17W,20W,25W |
|||
SQM |
1W-11W,15,17W,20W |
|||
SQS |
5W,7W,10W,15W,20W,25W |
|||
SQO |
4W,5W,6W,7W,8W |
|||
SQZ |
3W-11W,15,17W,20W,25W |
|||
SQH |
3W-11W,15,17W,20W,25W 30W,40W,50W,100W |
|||
SHG |
10W,11W,15W,20W,25W,30W,40W |
|||
Z4-16, Z5-16 |
4W,10W |
|||
ZC-11 |
5W |
|||
M450 |
80W |
|||
E |
2W,3W,5W,7W,10W, 2W+2W,3W+3W,5W+5W,7W+7W |
|||
|
MPR Metal Plate Non-inductive Cement Resistors
|
EC |
5W |
±5% ±10% |
0R01-4R7 |
|
Heated Cement Resistors
|
B |
16W |
±5% ±10% |
0R1-220R |
|
Temperature Fuse Cement Resistors
|
M |
5W,7W,10W |
±5% ±10% |
0R1-47K |
