Power Adapter DC 5V / 2A Warranty 1 Year Video Converter

Name: Power Adapter DC 5V / 2A Warranty 1 Year Video Converter
Brand: Pway
SKU: 135022109
Availability: InStock

Shenzhen City Pin Wei Technology Limited

Power Adapter DC 5V / 2A Warranty 1 Year Video Converter thumbnail-1

Power Adapter DC 5V / 2A Warranty 1 Year Video Converter photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Pway

Model Number:

PW-STF501

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Pway

Model Number PW-STF501

Place of Origin Guangdong, China

Power adapter DC 5V / 2A warranty 1 year video converter

Product Description

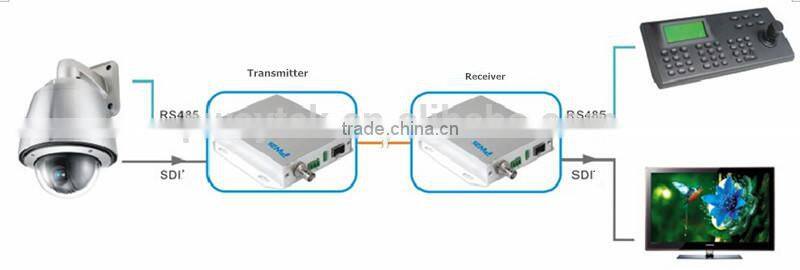

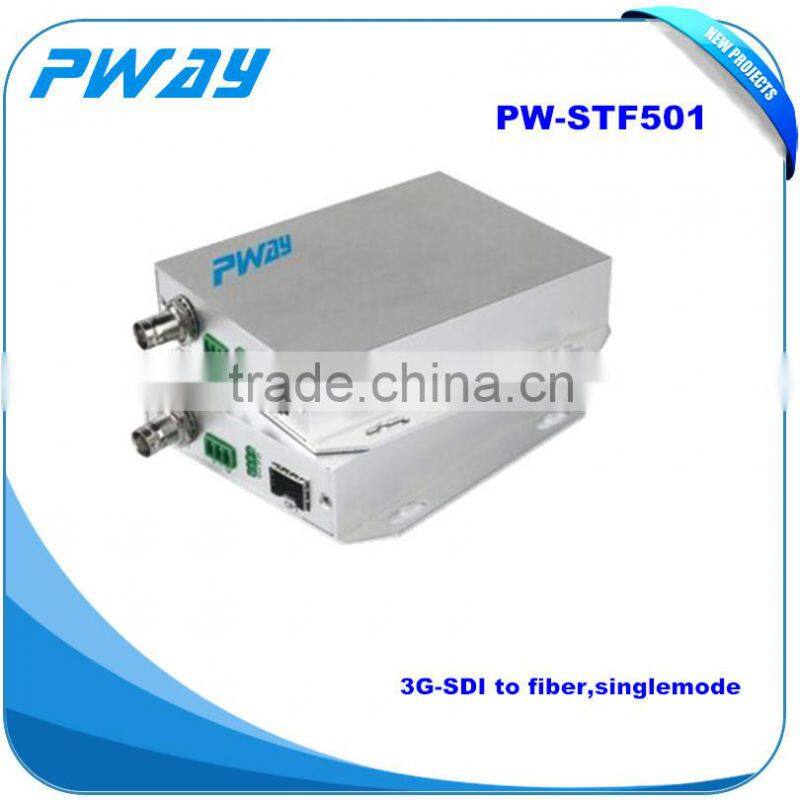

It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.

Features

Parameter		Description
Video	connector	BNC
	The interface bandwidth	1.4835Gbps,1.485Gbps,2.97Gbps
	impedance	75Ω
	Resolution	19201080@60Hz; 19201080@50Hz; 19201080@30Hz; 19201080@25Hz; 19201080@24Hz; 1280720@60Hz; 1280*720P@50Hz; 525i; 625i
RS485	connector	Industrial terminals
RS485	Baud rate	Self-adaptive, Max:115200bps
Optical fiber	Self-adaptive, Max:115200bps	LC/SC
	type	Single-mode
	Wavelength	Single-mode 1310nm
	bandwidth	2.97Gbps/1.25Gbps
	Transmission distance	Single-mode:3/20/40/80km
Other	Power	Power adapter:DC 5V/2A
	Power dissipation	MAX 2.5W
	Temperature	-5℃ ~ +70℃
	Humidity	5% ~ 90%
	Size	120mmX97.5mmX25.2mm
	Warranty	1 year
