AV&S-video &VGA to HDMI video converter resolution up to 1080p full hd receiver
Product Introductions:

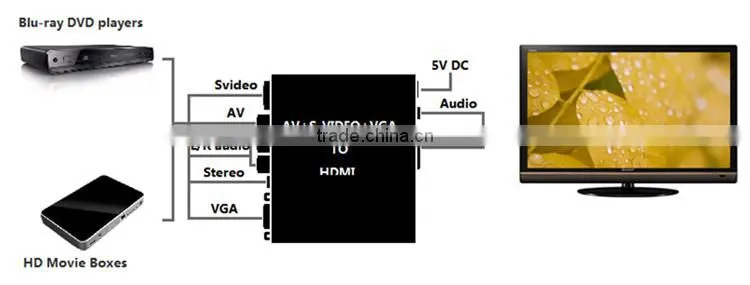

VGA+CVBS+S-video to HDMI signal converter which will convert VGA/Svideo/CVBS video signal and stereo audio signal to HDMI signal.
It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and
security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Specification of product :
- Install in seconds, no need of setting.
- Auto detect the input resolution, no need of setting.
- Supports convert VGA video and stereo audio into complete HDMI.
- Supports convert CVBS video and stereo audio into complete HDMI.
- Supports convert S-video video and stereo audio into complete HDMI.
- Supports highest video resolution up to 1080p.
- Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
- Supports 8bit per channel (24bit all channel) deep color.
- Supports OSD( On Screen Display ) menu operation.
Signal Inputs/Output |
| |
Input Video Signal | 0.5-1.0 volts p-p | |
Input DDC Signal | 5 volts p-p (TTL) | |
Input Video / Resolution | VGA | 640x480p/800x600p/1024x768p/1280x720p/ 1280x768p/1280x800p/1280x1024p/1360x768p /1600x1200p/1920x1080p/1920x1200p |
CVBS | NTSC / PAL | |
Svideo | NTSC / PAL | |
Output Video / Resolution | HDMI | 480i / 576i / 1080i |
480p/576p/720p/1080p/ 640x480p/800x600p/1024x768p/ 1280x768p/1280x800p/1280x1024p/ 1360x768p/1600x1200p/1920x1200p | ||
Operating Frequency |
| |
Vertical Frequency Range | 50/60Hz | |
Video Amplifier Bandwidth | 1.65Gpbs/165MHz | |
Mechanical |
| |
Size( L x W x H ) | 110 x 80 x 27 mm | |
Weight(Net) | 225 g | |
Warranty |
| |
Limited Warranty | 1 Year Parts and Labor | |
Environmental |
| |
Operating Temperature | 0 ℃ to +70℃ | |
Operating Humidity | 10% to 85 % RH (no condensation) | |
Storage Temperature | -10℃ to +80℃ | |
Storage Humidity | 5% to 95 % RH (no condensation) | |
Power Requirement |
| |
External Power Supply | 5V DC@1A | |
Power consumption (Max) | 5W | |
Regulatory Approvals |
| |
Converter Unit | FCC,CE, | |
Power Supply | CE,FCC | |
Accessories Adapter |
| |
AC Power Adapter | US standard, UK standard and so on | |
User Manual | English Version | |

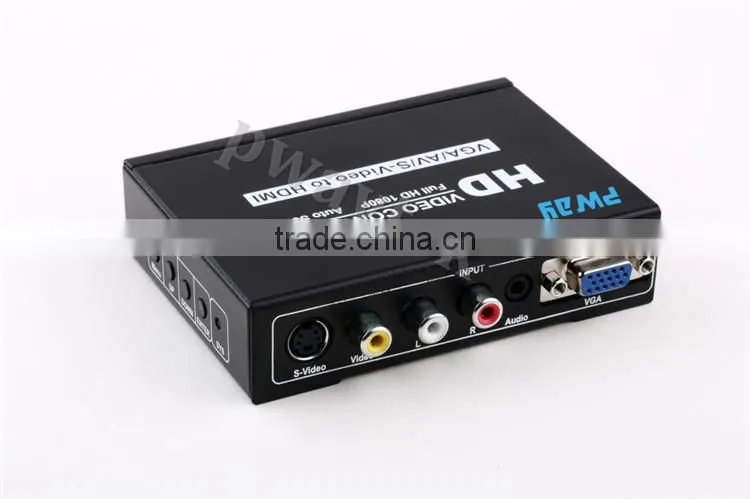

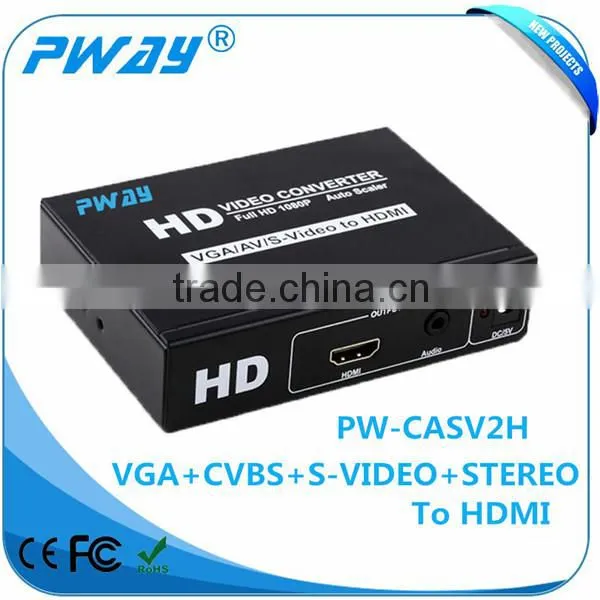

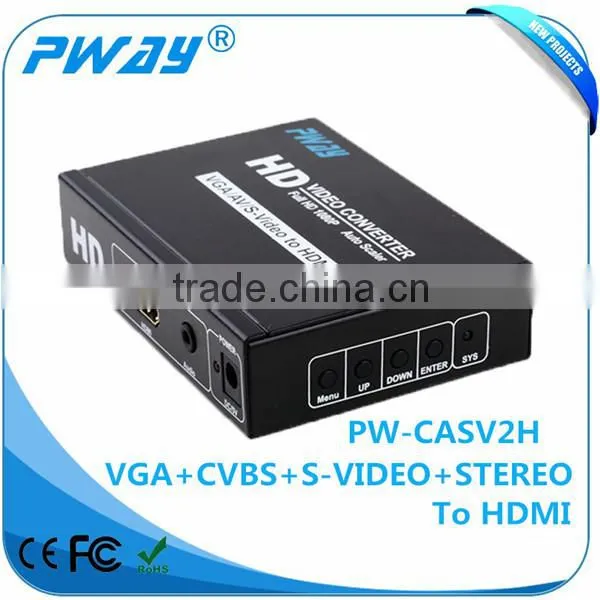

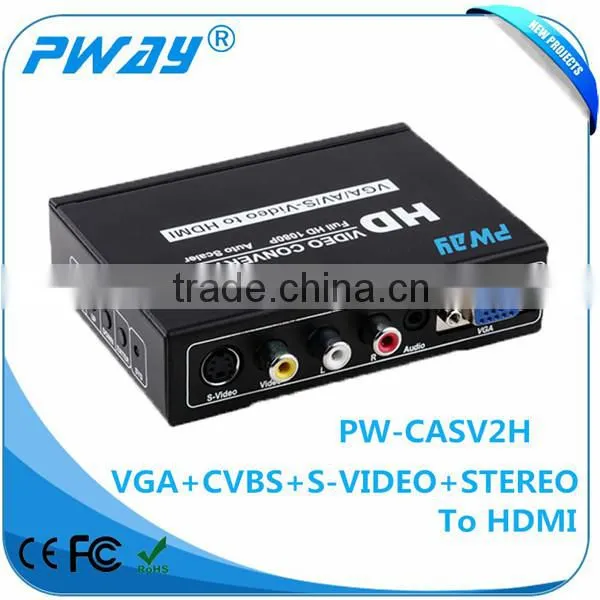

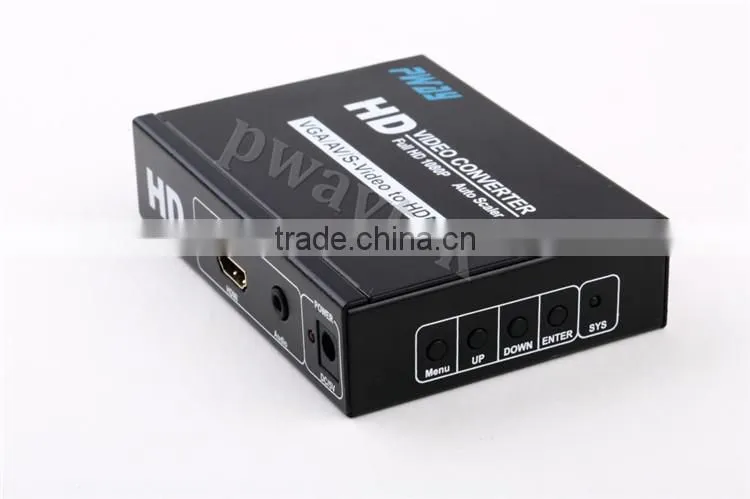

Product Pictures display:
Where is your factory ? Can I have a visit ?
Add: 5/FL, Block 3, Heng Chang Rong XingHui Technology Park, West Hua Ning Road, Da Lang Community,Longhua District, Shenzhen in CHINA.
Can I buy samples from your company?
We can provide samples .Contact me to talk about the details please.
How about the payment terms?
We accept T/T, western union......
What is the after-sales service?
One year warranty and professional engineers to solve your matter .If customer find quality problems within 15 days after received merchandise, please inform us, we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products itself. Then we will make solution with relevant department and feedback to customer on time.
Are you manufacturer or trading company?
We are manufacturer specialize in producing HDMI,DVI,VGA,S-VIDEO,AV transmitter and receiver,converter series products.
If you are not clear about how to use the products?
Each of your products with a manual, you can read it or you may consult us.
How long could I get reply of my inquiry?
You will get a reply within 24 hours.
How does your factory do regarding quality control?
Quality is a priority . Pwaytek people always attached great importance to quality controlling from start to finish.
