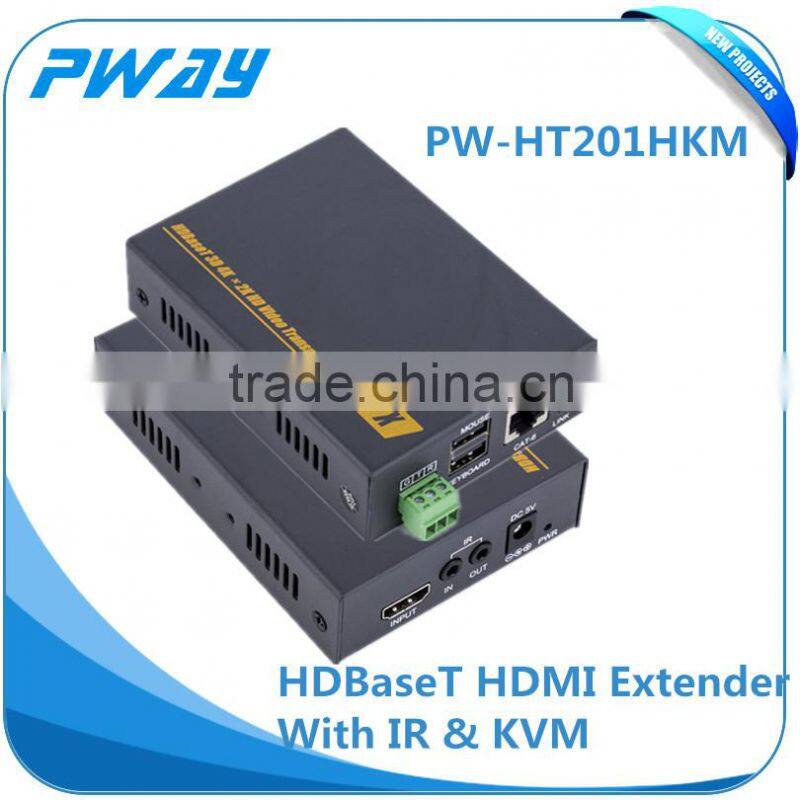

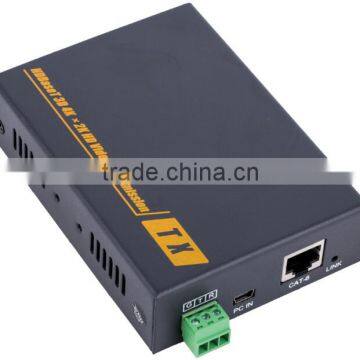

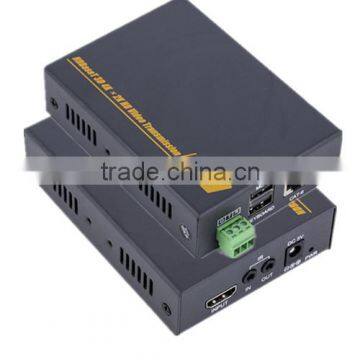

RS232 HDBaseT cable rj45 hdmi kvm extender 100m support USB keyboard
Features
- Transmits HDMI video signals up to 100m over a single CAT6 cable;
- Support video resolution up to 1920*1080P@60Hz and 4K*2K;
- Support HDBaseT technology;
- Support KVM, keyboard and mouse signal ,support IR transmission;
- Support RS232 signal bidirectional transmission, baud rate self-adaptive;
- Compliance with HDMI 1.4 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Parameter | Description | |
Video | Standards | HDMI 1.4; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 10.2Gbps | |
Resolution | 1920X1080P@60Hz,4K*2K | |
Connector | HDMI-A | |
Impedance | 100Ω | |
RS232 | Interface | Industrial terminal |
Signal direction | Bidirectional | |
Baud rate | Self-adaptive, Max:115200bps | |
Data bits | 8 | |
KVM | Interface | PC: MINI-USB Keyboard and mouse: USB-A |
Ethernet | Interface | RJ45 |
Transmission distance | 1080P: CAT6---100m 4K*2K: CAT6---70m | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 6W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 105*76*27mm | |
The warranty | 1 year free warranty | |
The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

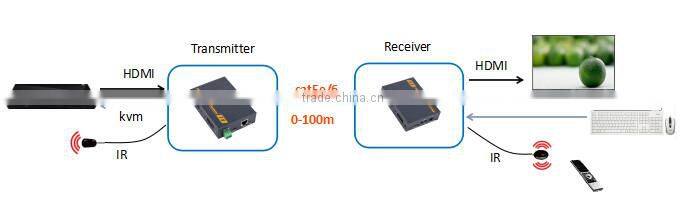

Application Diagram

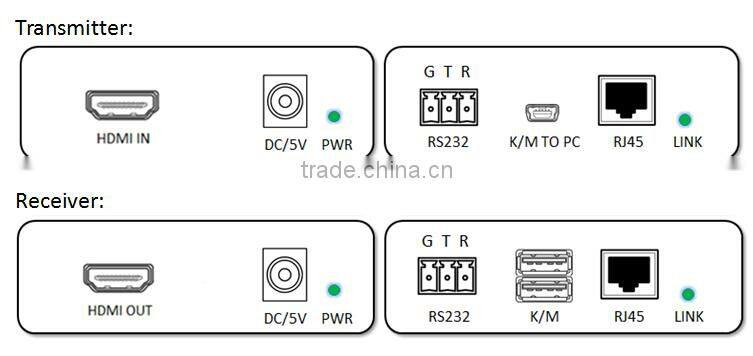

Connector Details:
If this product cannot meet your demand. Pls click on the image as below to browse more our main products. Hope you can find the one as you want.
More products:
