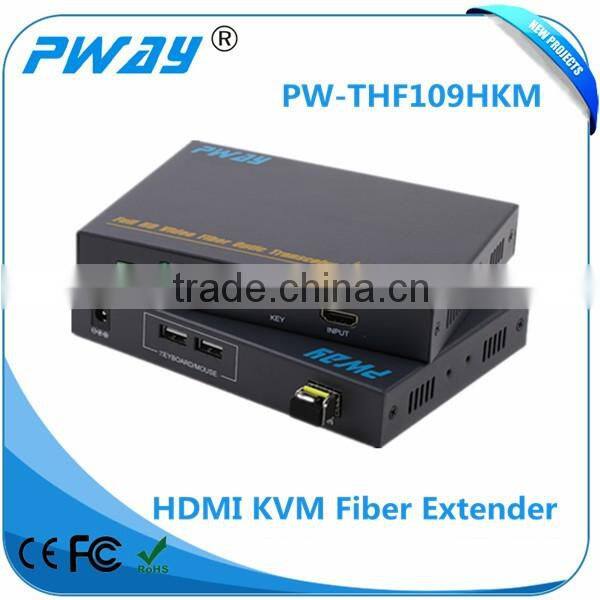

HDMI video transmitter up to 10km over one transmission cable
Descpription
The PW-THF109HKM Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
- Transmits HDMI video signals up to 10km over one fiber optic cable;
- Support video resolution up to 1920*1080P@60Hz;
- Support keyboard and mouse signal transmission;
- Support external stereo audio unidirectional transmission;
- Support RS232 signal unidirectional transmission, baud rate self-adaptive;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | 1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
Audio | Interface | 3.5mm earphone seat |
Signal type | Stereo | |
K/M | Interface | To PC: MINI-USB To keyboard and mouse: USB-A |
RS232 | Interface | Industrial terminal |
Signal direction | Unidirectional | |
Baud rate | Self-adaptive, Max:115200bps | |
Data bits | 8 | |
Optical fiber | Interface | LC connector |
Fiber type | Single-mode single fiber | |
Wavelength | Single-mode 1310nm | |
Interface bandwidth | 2.97Gbps | |
Transmission distance | standard 10km | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 6W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 136*130*30mm | |
The warranty | 1 year free warranty | |

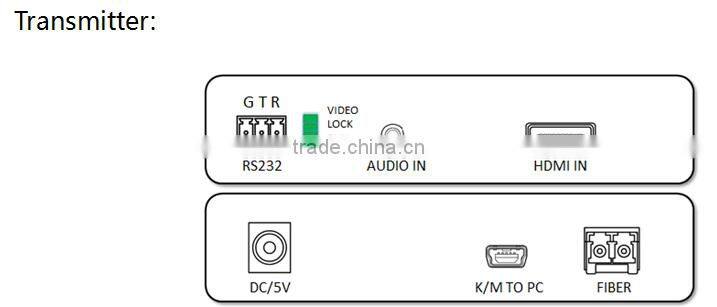

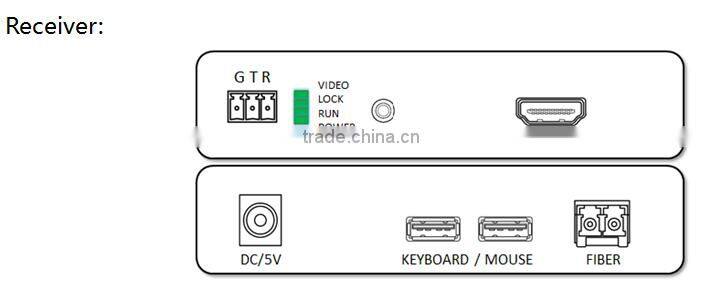

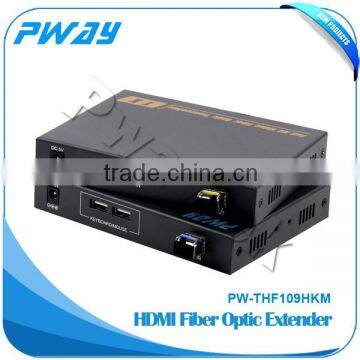

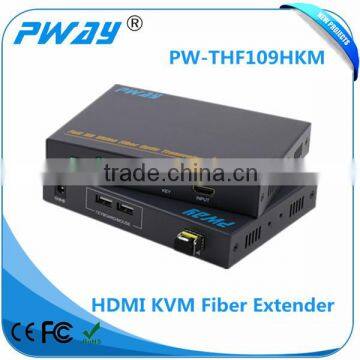

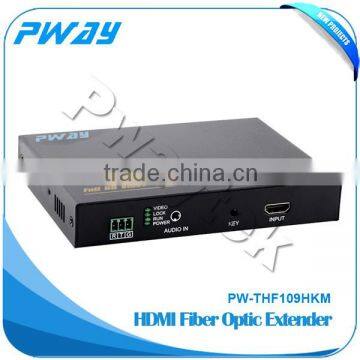

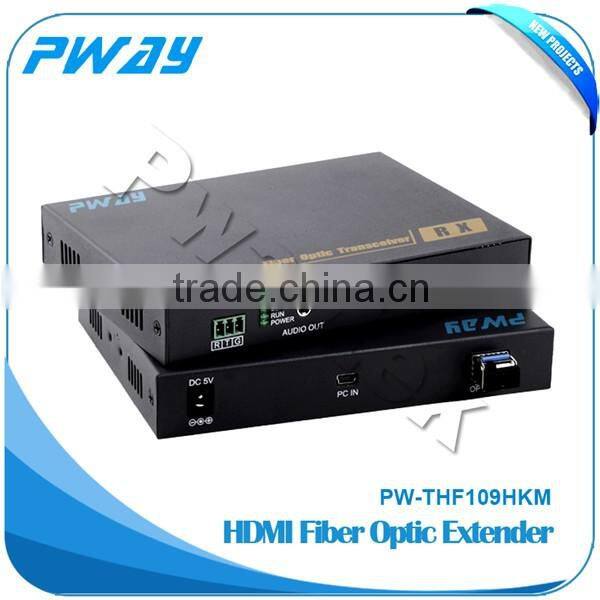

Panel
Port name | Description |
HDMI IN/OUT | HDMI signal input/output |
Audio IN/OUT | Stereo audio signal input/output |
RS232 | Serial port( G: Ground, T: transmit, R: receive ) |
DC/5V | Power adapter socket |
FIBER | SFP module---LC connector |
K/M TO PC | Mini-USB connect to PC |
KEYBOARD/MOUSE | USB connect to keyboard and mouse |
LED indicator | Description |
VIDEO | Video signal connection indicator |
LOCK | Video signal lock indicator |
RUN | System status indicator |
POWER | System power indicator |
Note: HDMI audio output is default, when detect external audio input, switch to external audio.
Installation
- Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
- Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
- Connect the HDMI output port of receiver to the display device with HDMI cable,
- Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

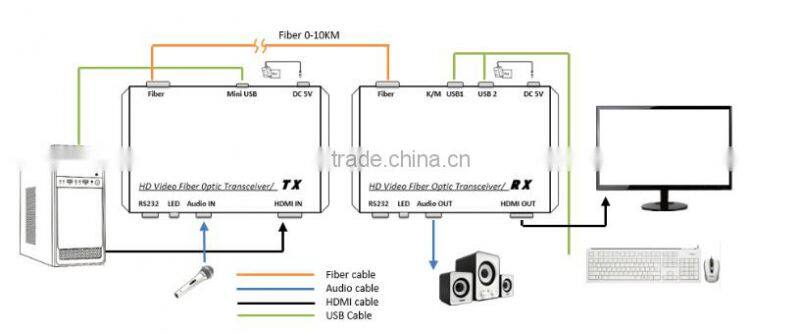

Diagram
