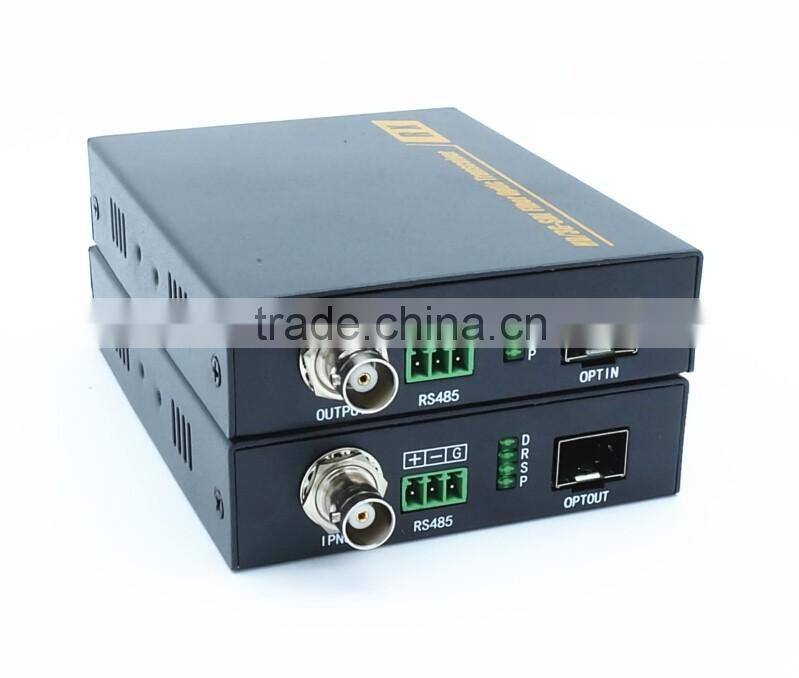

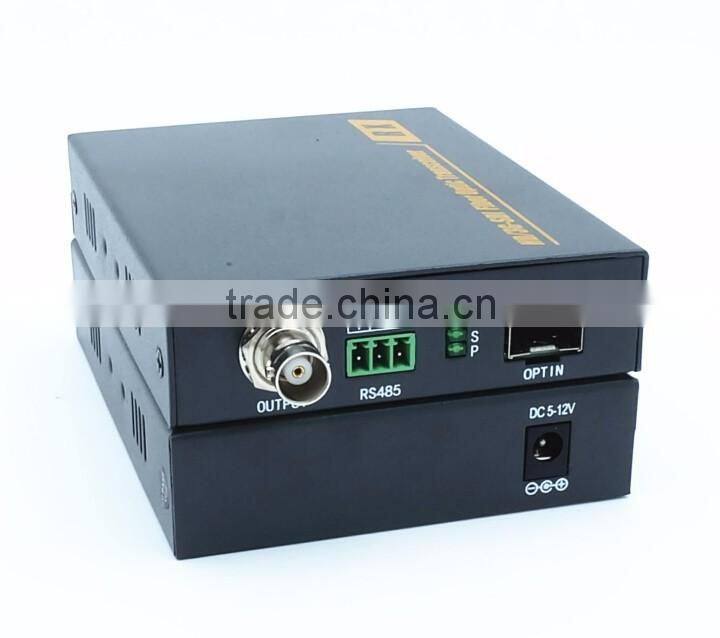

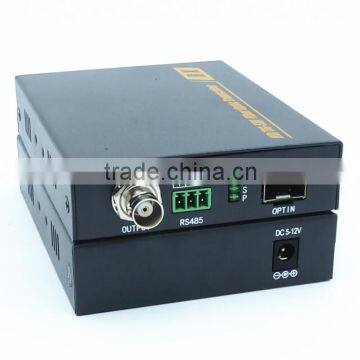

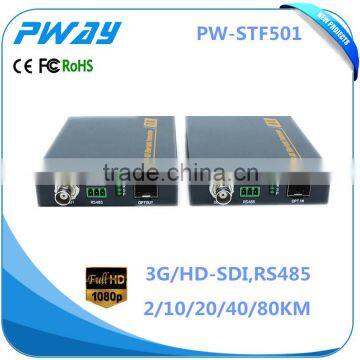

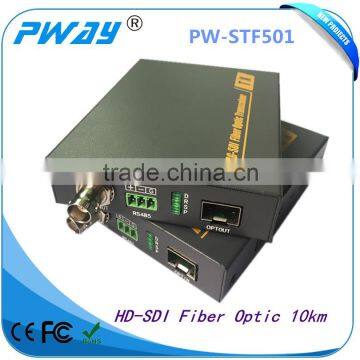

hd/3g sdi to fiber optical converter 1080p with RS485 10km
Introduction
It is a HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.
Support SMPTE292M.SMPTE259M.SMPTE424 signal. The device comprise of transmitter and receiver: transmitter convert SDI signal to optical signal; receiver convert optical signal to SDI signal and output.
Features
- HD/3G-SDI video and audio transmission
- Automatic dopt to rate SDI 270Mbps, 1.485Gbit,2.97bit
- Support 2 ways reverse RS485 data control.
- Built in equilizer,reclocker,cable driver
- Pathological test
- Support OEM
|
Parameter
|
Description |
|
|
Video
|
connector |
BNC female joint |
The interface bandwidth |
1.4835Gbps,1.485Gbps,2.967Gbps,2.97Gbps |
|
impedance |
75Ω |
|
Resolution |
1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz; 1280*720P@50Hz; 525i; 625i |
|
|
RS485
|
connector |
Industrial terminals |
Baud rate |
Support various rate |
|
|
Optical fiber |
connector |
LC |
type |
Single-mode |
|
Wavelength |
Single-mode 1310nm |
|
bandwidth |
2.97Gbps |
|
Transmission distance |
Single-mode:5/20/40/80km |
|
|
Other |
Power |
Power adapter:DC 5V/2A |
Power dissipation |
MAX 2.5W |
|
Temperature |
-5℃ ~ +70℃ |
|
Humidity |
5% ~ 90% |
|
Size |
120mmX97.5mmX25.2mm |
|
Warranty |
1 year |
|

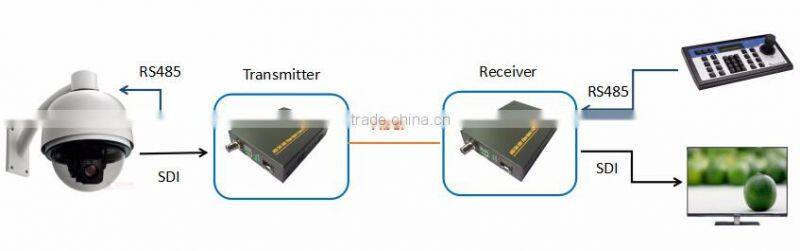

Application Diagram
