HDMI audio video Ip hdmi extender supporting 3D and TCP/IP up to 120m
Product Introductions:
The PW-DT103 extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080P, IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Specification of product :
- Transmits HDMI video and audio signals up to 120m over a single CAT6 cable;
- Support video resolution up to 1920*1080P@60Hz;
- Support IR signal transmission;

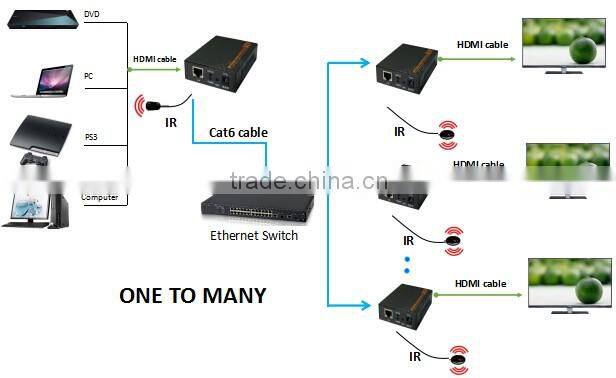

- Support TCP/IP, one to many application with Ethernet switch;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | 1920X1080P@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
IR | Interface | 3.5mm seat |
Signal direction | Unidirectional | |
UTP | Signal type | Digital |
IR frequency | 38kHz | |
Interface | RJ45 | |
Transmission distance | CAT6---120m | |
Other | Power supply | The power adapter: DC 5V/1A |
Power dissipation | MAX 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 100*60*25mm | |
The warranty | 1 year free warranty | |

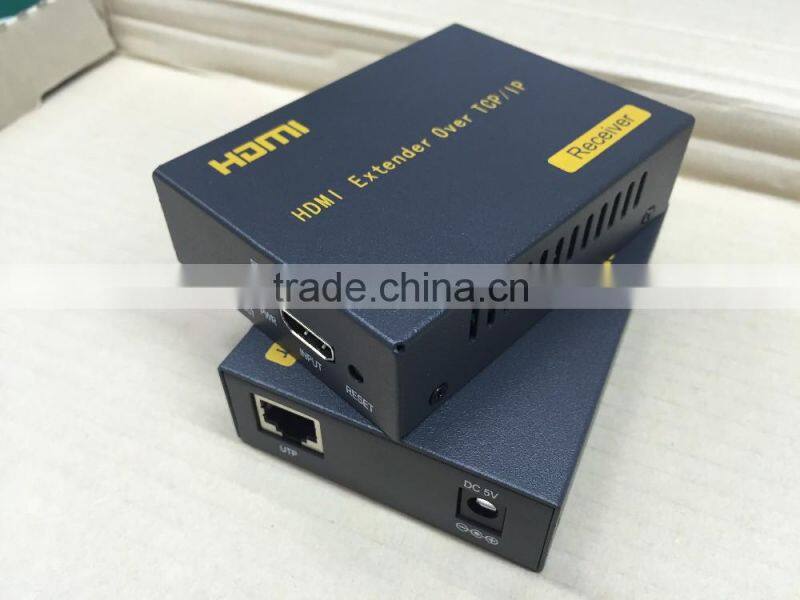

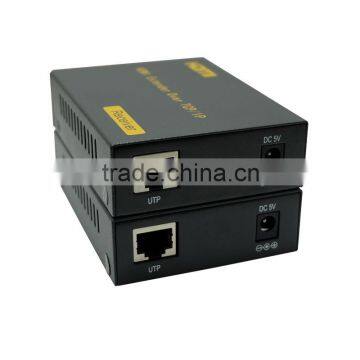

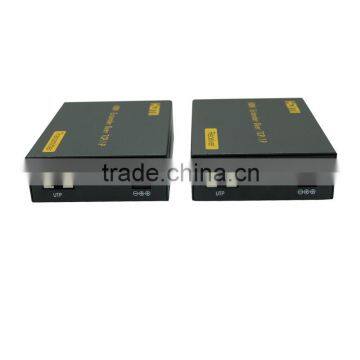

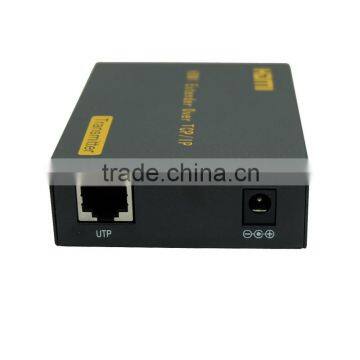

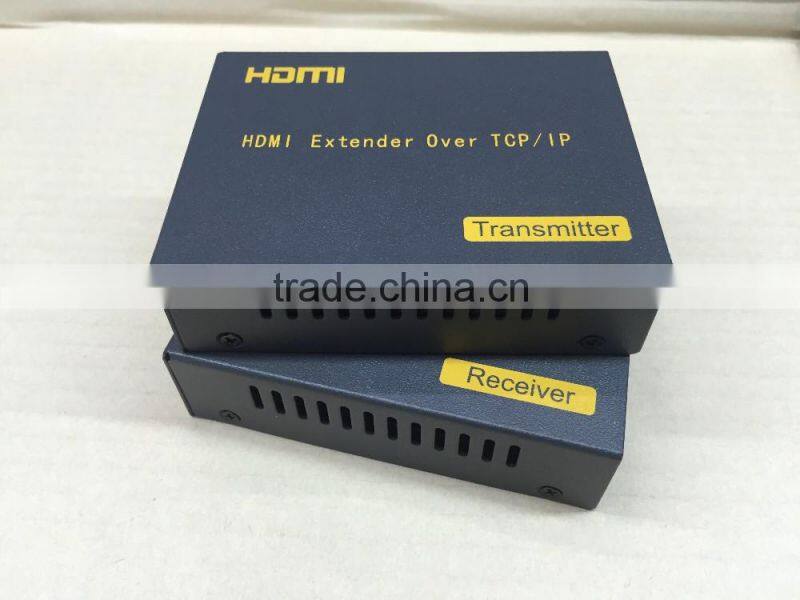

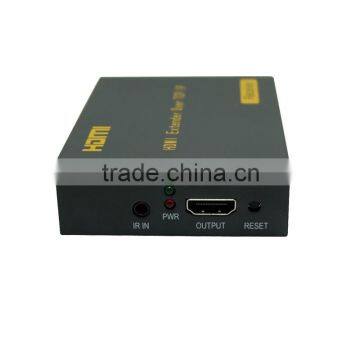

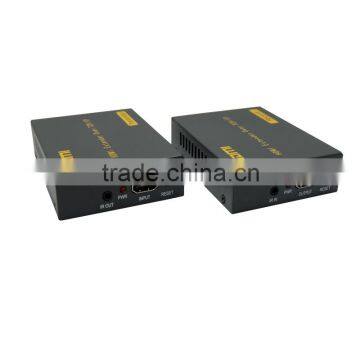

Product Pictures display:

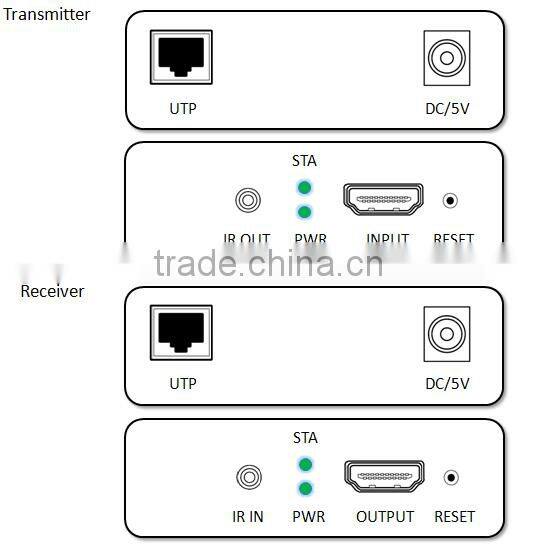

Port name | Description |
HDMI IN/OUT | HDMI signal input/output |
IR IN/OUT | IR signal input/output |
RJ45 | Ethernet interface |
DC/5V | Power adapter socket |
RESET | Press for 5 second to restore system setting to factory default |
LED indicator | Description |
STATUS | Video signal connection indicator |
POWER | System power indicator |
| After-sales service |
| If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time. |
| Customer service |
| Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication. |
| Warranty : |
|
Other products:
If this product can not meet your demand.Pls click on the image as below to browse more.Hope you can find the one as you want.
Where is your factory ? Can I have a visit ?
Add: 5/FL, Block 3, Heng Chang Rong XingHui Technology Park, West Hua Ning Road, Da Lang Community,Longhua District, Shenzhen in CHINA.
Can I buy samples from your company?
We can provide samples .Contact me to talk about the details please.
How about the payment terms?
We accept T/T, western union......
What is the after-sales service?
One year warranty and professional engineers to solve your matter .If customer find quality problems within 15 days after received merchandise, please inform us, we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products itself. Then we will make solution with relevant department and feedback to customer on time.
Are you manufacturer or trading company?
We are manufacturer specialize in producing HDMI,DVI,VGA,S-VIDEO,AV transmitter and receiver,converter series products.
If you are not clear about how to use the products?
Each of your products with a manual, you can read it or you may consult us.
How long could I get reply of my inquiry?
You will get a reply within 24 hours.
How does your factory do regarding quality control?
Quality is a priority . Pwaytek people always attached great importance to quality controlling from start to finish.
