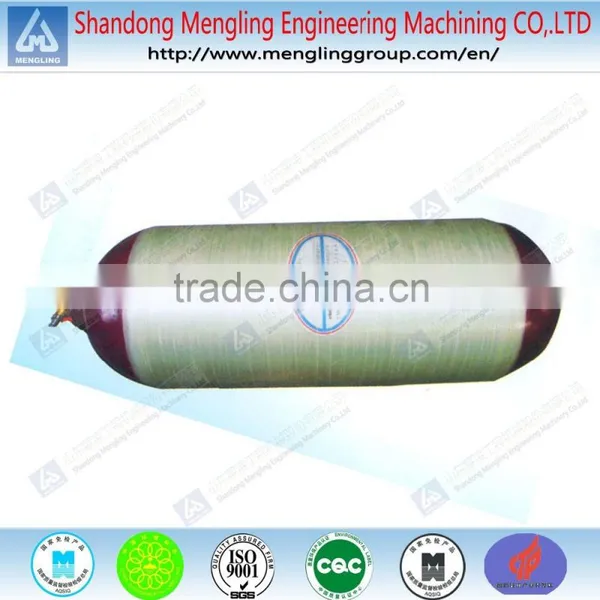

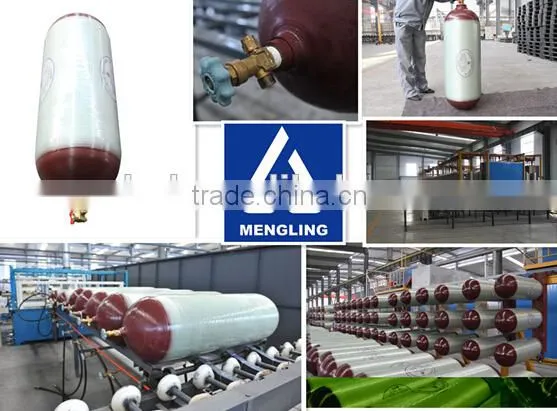

CNG convex bottom hydraulic gasy clinder for automobile
- 100000 Piece / Pieces per Month
- Qingdao Port
- T/T Credit Card PayPal
Product Details
| Standard or Nonstandard: | Standard | Structure: | General Cylinder | Power: | Hydraulic |
| Body Material: | Aluminum | Maximum Stroke: | 20Mpa | Shaft Diameter: | 325 mm |
| Place of Origin: | Shandong, China | Model Number: | 325 | Brand Name: | mengling |
Product Description
Product Description:
Material : 30CrMo+ CNG gas cylinder
Testing pressure: 20 Mpa
Thickness: 4.6 mm
Certifcation: ISO-11439;ECER-110;ISO-9809
| Model no. | outer diameter (mm) | voloum(L) | length(mm) | weight(kg) | pressure(mpa) | water pressure test(mpa_) | material | cylinder thickness(mm) |
| CNG-II-325-45-20T | 335.4 mm | 45 | 725 | 37.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-50-20T | 335.4 mm | 50 | 800 | 40.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-55-20T | 335.4 mm | 55 | 860 | 43.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-60-20T | 335.4 mm | 60 | 930 | 46.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-65-20T | 335.4 mm | 65 | 1000 | 49.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-70-20T | 335.4 mm | 70 | 1055 | 52.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-75-20T | 335.4 mm | 75 | 1120 | 55.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-80-20T | 335.4 mm | 80 | 1185 | 58.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-85-20T | 335.4 mm | 85 | 1250 | 61.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-90-20T | 335.4 mm | 90 | 1315 | 64.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |
| CNG-II-325-100-20T | 335.4 mm | 100 | 1450 | 67.5 | 20 mpa | 30 mpa | 30 CrMoo+ | 4.6 mm |

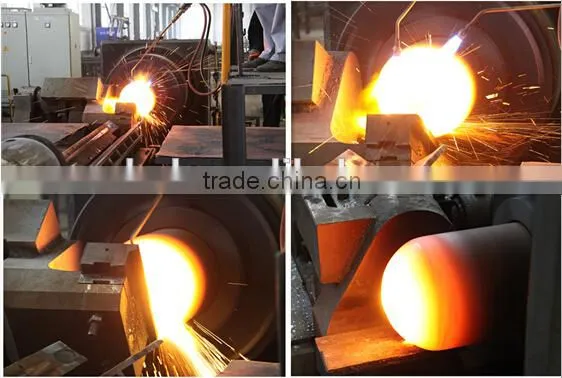

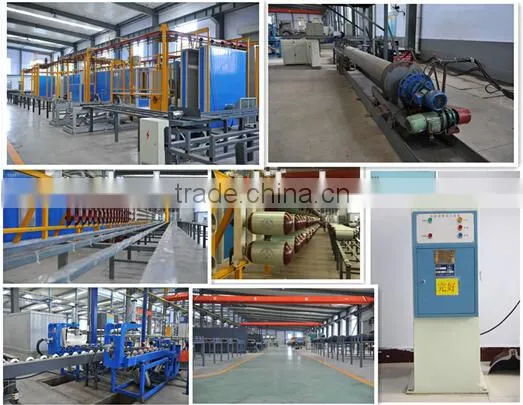

Production line :
Machining Equipment:
1. United States Haas CNC vertical boring and milling machining center
2. CNC horizontal lathe
3. precision turning round boring modular machine
4. digital milling machine
5. more than 500 Taiwan (sets) of mechanical processing equipment
Company information:
Shandong Mengling Engineering & machinery company is established in 1973.it has more than 40 years casting experience .Our company now has more than 2500 employees & also have advanced production technology including DISA production line ,V process, sand process, resin sand process.
Our Engineering Vehicle axle housing mainly used in heavy trucks and famous for good quality. Now our company have cooperated with Anhui Ankai; Anhui Hualing; Shanqi Hande, Shandong Lingong, Foton , CMAC. And our casting pump casing mainly supply to KSB.
Our factory ALSO has advanced testing equipments, the German Can Sisan coordinate measuring instrument, SPECTROR MAXX floor type direct reading spectrometer, JG-30D Charpy impact test, Number display Rockwell hardness meter,Micro micro hardness tester, WSW-200C universal testing machine, Metallurgical microscope....
We hope we could seek to build cooperation based on win-win idea.
Advantages:
1. Good quality and competitive price.
2. Believable after sale service.
3. Certificate: ISO9001:2008 16949
4.OEM acceptable
5. Advanced Machining Center: US Hass center.
6. Great production ability:250000 Tons/Year.
FAQ:
Q-Are you professional?
A-Yes, of course!!!
42 years experience
80 technical staff
Q-What are your dilivery terms?
A- 20-30 days after received deposit
Q-Are you a factory?
A-Yes
Q-What's your payment term?
A- T/T or L/C
Q-What's transportation do you have?
A-Ocean,air and courier
Please have no hesitate to contact me with following info:
Tel no.: 0086-539-7671-588
Mobile no.:0086-188-5396-7329
Fax: 0086-539-7671-599
