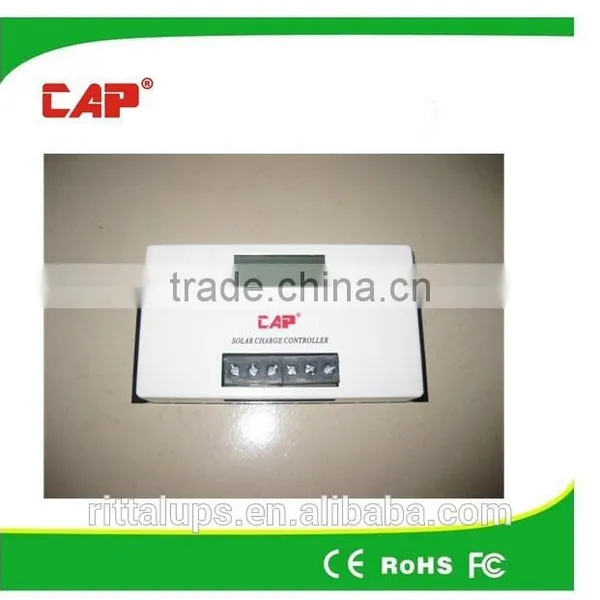

Wind / Solar Hybrid Controller for 1 kw System

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CAP

Model Number:

1KW wind & solar controller

Guangzhou Helizhanchuang Electric Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou huangpu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CAP

Model Number 1KW wind & solar controller

Application Charger Controller

Rated Voltage 12V

Maximum Current 60a

Wind Solar Hybrid solar charge controller
1.high power,energy saving

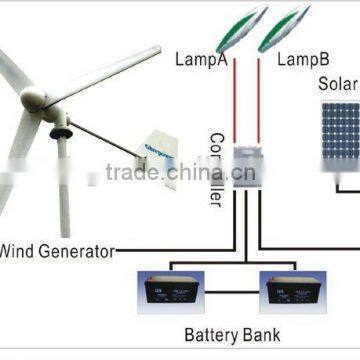

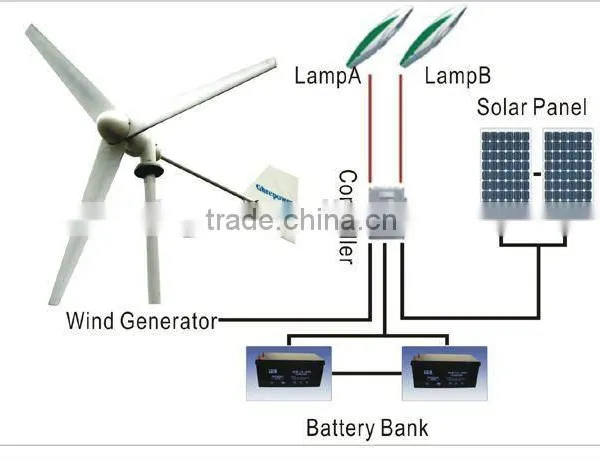

2. suitable for the wind solar hybrid system
3.long service time

Wind solar hybrid system controller features:

1. Ultra-low loss, conversion efficiency is as high as 97%.

2.The built-in MTTP (Maximum Power Point Tracking chip,), make solar panels power output always at its best

3. Current against-irrigation protection, prevent the equipment from damage

4.Automatic battery temperature sensing compensation, extend the battery life

5.According to the battery types,choose different charging mode.

6.It can connect DC load directly.

7.Charging design in three states(constant flow, constant pressure and floating charge)

8.LCD shows charging status instantly.

9.The PWM technology optimize various performance of battery.

Wind solar hybrid system controller Technical Parameter:

Model			OYD-S 40/60-12	OYD-S 40/60-24
Voltage serial number			12VDC	24VDC
Controller input	input voltage range		15-30VDC	30-55VDC
	Max charge current		40A/60A
	Largest open voltage of solar panel		55VDC
Max output current(DC load)			15A
Self-consumption of Controller			Less than 10mA
Overload protection of controller			It can insist 5 seconds when the maximum output current is in 2 times , more than 20 seconds when it is in 1.5 times
Battery charging control		Fast charging voltage (controller)	14.6V(Default value)		29.2V(Default value)
		Float charging voltage setting (controller)	13.4V(Default value)		26.8V(Default value)
		Equalized charging voltage setting(controller)	14.0V(Default value)		28.0V(Default value)
		Overcharge disconnect battery voltage	14.8V		29.6V
		Overcharge restore battery voltage	13.6V		27.2V
		Temperature compensation rate	-13.2mV/°C		-26.4mV/°C
		Battery Settings	(lead-acid, nickel cadmium battery) all can set by yourself
Battery discharge control		Over-discharge disconnect voltage	10.8V(Default value)		21.6V(Default value)
		Over-discharge restore voltage	12.3V		24.6V
		Voltage value	14.4V		28.8V
		Low cut-off voltage	10.5-12.5VDC		21.0-25.0VDC
		Low voltage to connect	12.0-14.0VDC		24.0-28.0VDC
Operate environment		Environment temperature	0-40°C(work fully)		40-60°C(drop work)
		operate elevation	It can be used below 5000m, stored below 16000m
Machine oover protection		grade	IP21
Accessory		Battery temperature sensor	BTS, remote monitoring control (optional)
