Specifications
Solar & wind controller1. lcd & led indication
2. Output stability voltage
3. Electronic brake (Automatic brake)
1. PWM CV charging
2. Output stability voltage
3. Electronic brake (Automatic brake)
4. Manual brake
5. Over voltage protection
6. Mini wind & solar hybrid controller
7. Numeral panel display

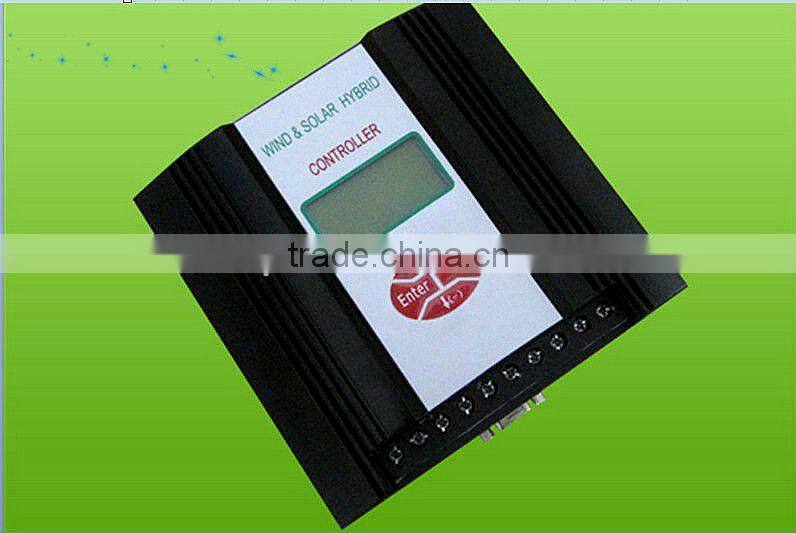

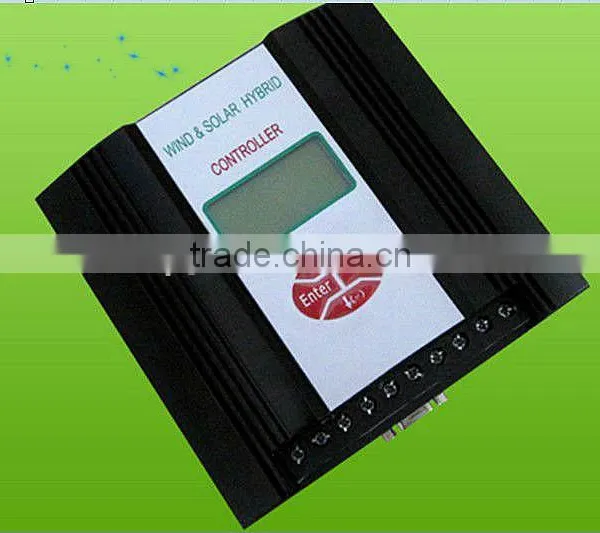

hybrid wind & solar controller for streetlight 100w
Specification:
Model | Angel-200 | Angel-300 | Angel-400 |
rated power (W) | 200W | 300W | 400W |
rated voltage (V) | 24 | 24 | 24 |
rotor diameter (m) | 1.44 | 1.44 | 1.44 |
start-up wind speed (m/s) | 2.5 | 2.5 | 2.5 |
rated wind speed (m/s) | 12 | 12 | 12 |
security wind speed (m/s) | 35 | 35 | 35 |
yawing type | Mechanism | Mechanism | Mechanism |
rated rotating rate (r/m) | 450 | 450 | 450 |
generator work way | magnetic saturation
| magnetic saturation
| magnetic saturation
|
generator material | casted iron | casted iron | casted iron |
blade material | Engineering plastic | Engineering plastic | Engineering plastic |
blade quantity | 3 | 3 | 3 |
tower Height (m) | 6 | 6 | 6 |
tower Diameter (mm) | 89 | 89 | 89 |
suggested battery capacity
| 12V150AH 2pcs | 12V150AH 2pcs | 12V150AH 2pcs |
Wind turbine system Features:
1.Magnetic saturation generator design, 20years designed life.
(number of patent: 201020296641.3)
2.1.5-2m/s start-up wind speed under low torque start-up technique.
(number of patent: 201020259729.8)
3. Mechanical automatic yawing.
4. Match controller with release voltage charging, electronic and manual brake, and numeral panel display.
PWM controller charge system patent: 200910213782.6,
Electronic brake system patent: 200910213784.5
5. Supporting off grid and grid tie wind power system and wind-solar Hybrid system.
6. It's weight is very light, and east to install:7.5-8kgs
7. The tail and connection of bearing processed with reinforced rib, it can afford strong wind.
8. With high technology of untwisting function--carbon brush. It protects all the system with avoid cables twist
