manufacturers power converter solar system inverter 12v 48v 100w-3000w
Specifications

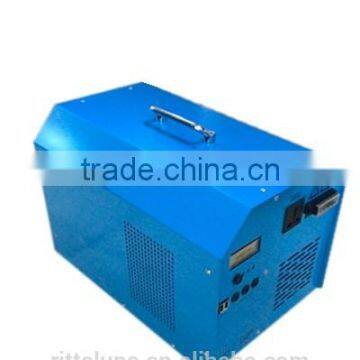

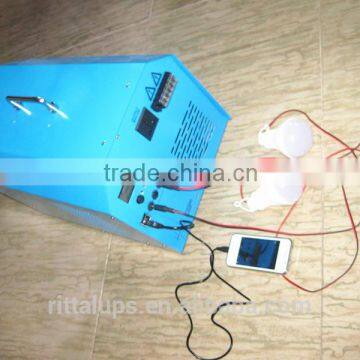

This is a complete solar sytem for home or for trip. It is easy to carry and very convenient.
Solar Controller Inverter Battery all in one mechinery. It can use directory after connecting with solar panel, and produce electric power.
MODEL |
115V Models |
230V Models |
|
|
|||||
OUTPUT |
|
|
|||||||
Power Levels crated at nominal inputs |
500VA/300W;1000VA/600W;2000VA/1200W; 3000VA/2000W; 4500VA/3KW |
500VA/300W;1000VA/600W;2000VA/1200W; 3000VA/2000W; 4500VA/3KW |
|
|
|||||
Output Voltage |
120V |
230V |
|
|
|||||
Phase |
Single phase |
|
|
||||||
Voltage Waveform |
Pure Sine Wave |
|
|
||||||
Power Factor |
0.6 |
|
|
||||||
Output Frequency(Synchronized to Mains) |
Auto Select for 50/60Hz |
|
|
||||||
Regulation (Nominal) |
10%-18% |
|
|
||||||
Regulation(Battery mode) |
±0.1HZ |
|
|
||||||
Transfer time |
8ms Typical |
|
|
||||||
INPUT |
|
|
|||||||
Nominal Voltage |
110V/120V Selectable |
220V/230V/240V Selectable |
|
|
|||||
Phase |
Single |
|
|
||||||
Voltage range |
90 - 145VAC or 170-280VAC ( Narrow Range ) |
|
|
||||||
50-145VAC / 90-280VAC (Wide Range) |
|
|
|||||||
BATTERY |
|
|
|||||||
Charger Current |
500VA/300W/12VDC:10 Amp + / - 1Amp;1000VA/600W/12VDC/:10Amp + / - 1Amp; 2000VA/1200W/24VDC:10 Amp + / - 1Amp |
|
|||||||
|
|
||||||||
Overcharge Protection |
500VA/300W: 15V +/- 0.3V charger stops and fault |
|
|||||||
1000VA/600W:15V +/- 0.6V charger stops and fault |
|
|
|
|
|||||
2000VA/1200W: 30V +/- 0.6V charger stops and fault |
|
|
|
|
|||||
EFFICIENCY |
|
|
|
||||||
AC to AC |
>95% |
|
|
|
|
||||
DC to AC |
>80% |
|
|
|
|
||||
INDICATOR |
|
|
|
||||||
AC Mode |
Green LED lighting |
|
|
|
|
||||
Battery Mode |
Yellow LED lighting |
|
|
|
|
||||
Battery Charging Mode |
Green LED flashing every 2 seconds |
|
|
|
|
||||
Overload |
Red LED flashing every 0.5 second |
|
|
|
|
||||
Fault |
Red LED lighting |
|
|
|
|
||||
AUDIBLE ALARM |
|
|
|
||||||
Low Battery at Battery Mode |
Sounding every 2 seconds |
|
|
|
|
||||
Overload |
Sounding every 0.5 second |
|
|
|
|
||||
Fault |
Continously sounding |
|
|
|
|
||||
Protection |
|
|
|
||||||
Full Rrotection |
Deep Discharge, Overcharge, and Overload protection |
|
|
|
|
||||
ENVIRONMENTAL AND SAFETY |
|
|
|
||||||
Operating Temperature |
Up to 1500 meters:0 °C to 40°C (32°F to 104°F) |
|
|
|
|
||||
Transit/storage Temp. |
15°C below zero to 50°C (5°F to 131°F) |
|
|
|
|
||||
Relative Humidity |
0 - 90% non condensing |
|
|
|
|
||||
Quality control system |
ISO 9001:2000, ISO 14002-2004 |
|
|
|
|
||||
PHYSICAL |
|
|
|
||||||
Appearance |
Size(mm)L x W x H |
224 x 255 x 80 |
|
|
|
|
|||
Weight(Kg) |
500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ; 2000VA / 1200W :2.5kg |
|
|
|
|
||||
Carton BOX(mm)L x W x H |
414*311*560(3pcs) |
|
|
|
|
||||
Gross Weight Weight(Kg) |
500VA / 300W:7.4kg ; |
|
|
|
|
||||
|
|||||||||
home solar energy system
1.Controller Inverter Battery Hybrid in one box
2.Light in weight, easy operation, with USB, DC, AC Output
3.Long working life with LCD screen
4.Directly from Factory
5.Delivery in 7-15 days
6.Accept OEM made
