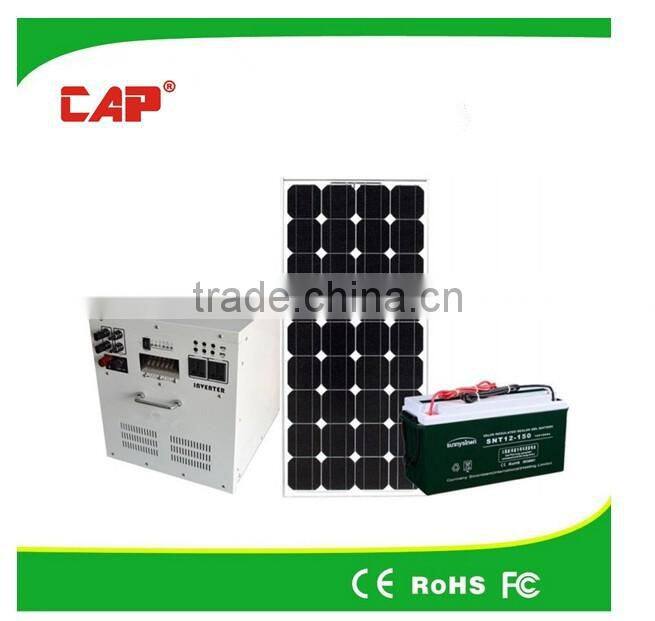

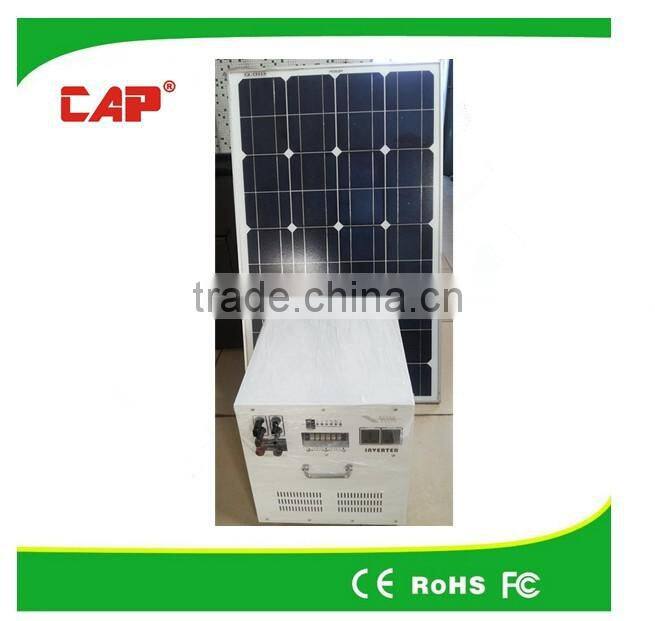

full power 300w small solar system/portable solar energy system use for home
Inverter and controller independent equivalent to two solar panels. The high-performance battery, equipped with casual, equivalent and flexible aluminum alloy frame. The main advantage of the solar power with light weight is being easy to carry, and acting freely and flexibly. When there is sun, there is assurance that the battery is charging at anytime and anywhere and meets people's fundamental demand for electricity at last. It provides power for laptop computers, small power tools; as a family emergency power, temporary vehicle maintenance, long-distance travel, field work, off-road adventure, field search, can be illuminated for up to 40 hours.
Model |
L-1 |
||
|
Power Rating (W) W |
100 |
||
Battery Voltage (V) |
12 12 12 |
||
Solar Panel |
Maximum Voltage (V) |
25 |
|
|
Maximum Current (A) |
20 |
|
|
MPPT Function |
user option |
|
|
Inverter Output
|
Voltage (V) |
220±3% |
|
|
Frequency (Hz) |
50±0.5 |
|
|
Wave Form |
pure sine wave |
|
|
THD (%) |
≤3% for linear load,<5% for nonlinear load ,all of them in full load condition |
|
|
Dynamic Response Time (ms) |
<10 |
|
|
Efficiency (%) |
≥85% linear load |
|
|
Overload Capacity |
overload 120% or short circuit automatically shut off the inverter, 1 seconds after automatic restart the inverter
|
|
Line complementary Input |
220V/50Hz |
||
Line complementary output |
DC priority design ,when battery voltage is too low, the inverter output is turned by line bypass output to load
|
||
|
DC Output |
USB Power Supply |
User option |
|
|
12V DC Power Supply |
|
|
|
Operating Temperature(°C)
|
-40 - +50 |
||
Type of Cooling |
temperature control forced ventilation |
||
Relative Humidity (%) |
0-90% non-condensate |
||
Indication LED Indicator |
solar panel (blue), battery normal (yellow), battery failure(red), power start (green/yellow), inverter normal (yellow), line normal (green)
|
||
Protection Function |
output overload and short circuit, battery low voltage and over charging protection, solar panel Polarity reverse connect protection, overheating protection, lightning protection |
||
Physical Size (Lcm×Wcm×Hcm) |
140*90*3 23*16*9 23*16*9 |
||
Net Weight (Kg) |
0.3 |
||
