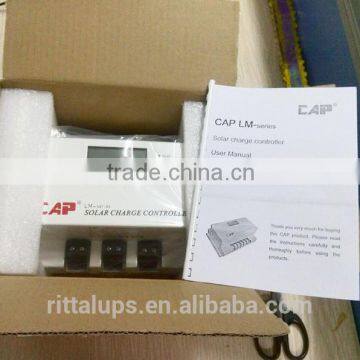

12v/24v/48v/96v/120v/240v 50a 60a 80a 100a MPPT controllere controller
MPPT advantage:
Maximum Power Point Tracking (MPPT in short) system is a system which allows PV panels to outputs more Power by adjusting working condition of the electrical module. In Figure1 A indicates that the ordinary controller, which makes PV battery work on 12V ,only outputs a power point of 53W (a general power point), B indicates that MPPT controller makes PV battery always work at the maximum power point, thus outputs the power point of 75W (the maximum power point)
Technical Data of solar charge controller Regulateor:
| Model series |
LM series A
LM01A/LM02A/LM03A/LM04A
|
LM series B
LM01B/LM02B/LM03B/LM04B
|
LM series C LM01C/LM02C/LM03/C/LM04C |
| Nominal voltage | 12/24 V, automatic recognition |
48/96 V, automatic recognition |
36/72 V, automatic recognition |
| MPPT Range/Operating Voltage |
12V battery: 17~140V,
24V battery: 34~140V
|
48V battery: 65~140V,
96V battery: 118~140V
|
36V battery: 48~140V,
72V battery: 84~140V
|
| Max DC Voltage | 150V |
||
| Charging Method | Three stages; bulk, absorption, floating |
||
| Boost voltage | 14.5/ 29.0 V (25'C),2 hours |
58/116V (25'C),2 hours |
43.5/87V (25'C),2 hours |
|
Equalization
voltage
|
14.8/29.6 V (25'C),2 hours |
59.2/118.4V (25'C),2 hours |
44.4/88.8V (25'C),2 hours |
| Float voltage | 13.7/ 27.4 V (25'C) |
54.8/109.6 V (25'C) |
41.1/82.2 V (25'C) |
|
Low Voltage
Disconnect
Function
|
11.4- 11.9/22.8-23.8 V controlled
by state of charge 11.0/ 22.0 V
controlled by voltage
|
45.64- 47.6/91.2-95.2V controlled
by state of charge 11.0/ 22.0 V
controlled by voltage
|
34.2-35.7/68.4-71.4 V controlled by state of charge 33.0/ 66.0 V controlled by voltage |
|
Load reconnect
voltage
|
12.8/25.6V |
51.2/102.4V |
38.4/76.8V |
|
Temperature
compensation
|
Automatic with optional RTS installed / 5.0 mV per°C per 2V battery cell(Optional) |
||
|
Max. PV
current
|
10A/20A/30A/40A/50A/60A/70A/80A/90A/100A according to model number @ 50'C |
||
|
Max. load
current
|
10A-100A according to model number @ 50'C |
||
| Max Efficiency | 99.5% |
||
| LCD Display | Backlight, Charge Controller Parameter and Data Display |
||
| Communication | RS232/RS485/Ethernet(Optional) |
||
| Dimension | 230 x 150 x 85 mm |
||
| Weight | 1.2kg |
1.2kg |
1.2kg |
| Max wire size | 20 mm2 |
||
| Self consumption | 16mA |
30mA |
30mA |
|
Ambient
temperature range
|
-40 to+ 50°C |
||
| Humidity | 0~90%RH ( No condensing) |
||
| Protection | Polarity Reversal Protection, Overload, Over Charge, Short-circuit |
||
| Communication | RS232/RS485/Ethernet(Optional) |
||
| Case protection |
IP 22
|
||
Properties:
·12V/24V,36V/72V,48V/96V,120V, 192V optional
·Advanced maximum power point tracking technology to optimize using the solar system
·Peak conversion efficiency of 97 %, high Tracking efficiency of 99%.
·Very fast sweeping of the entire I-V curve, several seconds tracking speed.
·Widely used, automatic recognize day/night.
·Timer function with 1-15 hours option for street light.
·Unique dual timer function, enhance the flexibility of street light system.
·Sealed, Gel and Flooded battery option.
·Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.
·Electronic protection: over charging, over discharging, overload, short circuit.
·Reverse protection: any combination of solar module and battery, without causing damage to any component.
RJ45 interface with remote meter MT-5, convenient to check operating parameters of controllers.
CE TCT Certificate
Customers Service:
(1)Warranty :
Our product warranty is valid for 2 years after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.
(2)Lead time:
a.Sample orders(1-20pcs) will be delivered from our factory within 2 working days .
b.Bulk orders will be delivered from our factory within 3-5 working days.
(3)shippment :
By sea ,airway , EMS, DHL, FedEx, TNT, UPS or other express.
(4)Payment: T/T (Telegraphic transfer), and Western Union, Money Gram, L/C, D/A
