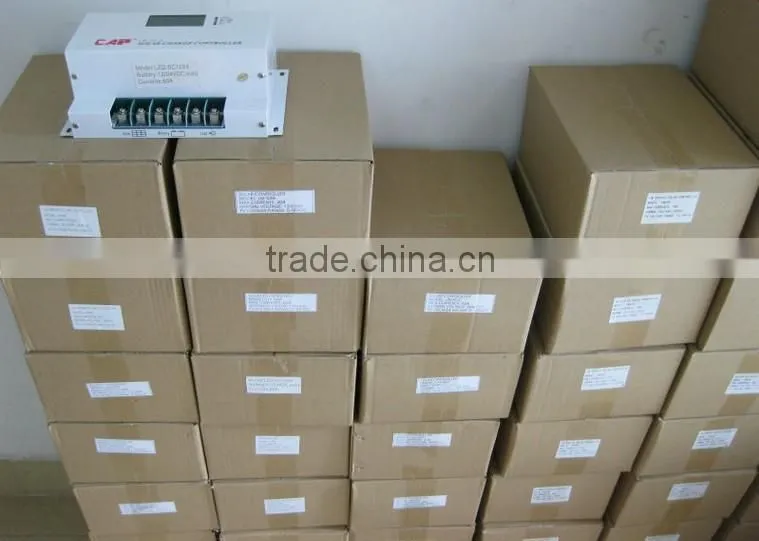

mppt solar controller 60A 24v
Decription of Functions:
1. The charge controller protects the battery from being overchargeed by the solar array and from being deep discharged by the Loads. The charging characteristics include several stages which include automatic adaptation to the ambient temperature.
2. The charge controller adjust itself automatically to 12V or 24V or 48V or 96V system voltage
3. The charge controller has a number of safety and LED&LCD display functions
Advangetage:
1. Clear, readable display of the state of charge
2. Acoustic signal when the state of charge changes
3. Low voltage disconnect regulated by state of charge or voltage
4. 20 mm2 connector clamps maximum
5. Complete electronic protection
Techinical Data
Model series |
LM series A |
LM series B |
Nominal voltage |
12/24 V, automatic recognition |
48/96 V, automatic recognition |
Boost voltage |
14.5/ 29.0 V (25'C),2 hours |
58/116V (25'C),2 hours |
Equalization |
14.8/29.6 V (25'C),2 hours |
59.2/118.4V (25'C),2 hours |
Float voltage |
13.7/ 27.4 V (25'C) |
54.8109.6/ 27.4 V (25'C) |
Low Voltage |
11.4- 11.9/22.8-23.8 V controlled |
45.64- 47.6/91.2-95.2V controlled |
Load reconnect |
12.8/25.6V |
51.2/102.4V |
Temperature |
-4 mV/cell*K |
-4 mV/cell*K |
Max. solar panel |
30A/40A/50A/60A according to model number @ 50'C |
30A/40A/50A/60A according to model number @ 50'C |
Max. load |
30A/40A/50A/60A according to model number @ 50'C |
30A/40A/50A/60A according to model number @ 50'C |
Dimension |
230 x 150 x 85 mm |
230 x 150 x 85 mm |
Weight |
1.2kg |
1.3kg |
Max wire size |
20 mm2 |
20 mm2 |
Self consumption |
16mA |
16mA |
Ambient |
-40 to+ 50°C |
-40 to+ 50°C |
Case protection |
IP 22 |
IP 22 |
