because of professional,so we are respectable
the description of bar beer equipment
commercial beer brewery brewing equipment for sale: This type beer equipment is one of our best selling.
And it mainly applies to bar, restaurant, hotel and so on. Complete beer equipment for home breweries with
production from 200L up to 1000L of beer per day. As well as it’s fine workmanship, excellent performance and
easy operation will be your best choise for brewing beer.
beer process flow diagram
1. (1)Infiltrating ,crushing malt
(2)Heating the brewing water in brew kettle
2. (1)Pumping a certain amount of appropriate temperature of hot water into mash tun
(2)starting rotary blade,uniformly putting into material ,stopping rotary blade when stirring uniformly .timing saccha
(3)Controlling of water temperature and water quantity,keeping appropriate saccharification temperature ,stirring in every 15 minutes
3. (1)refluxing turbid wort when saccharification ends .observing through the sight glass, beginning to filter when wort is charified
(2)washing the tank when the tank exposes in the filtration process ,water temperature 78
(3)Continue to filtrate after washing the tank,until sugar content meets the requirements.stopping washing the tank and filtrating
4.(1)pumping all the wort into brew kettle ,heated to boiling for 60 to 90 minutes
(2)in the first ten minutes of boiling,batch adding bitter hops
(3) adding sweet hops before the end of boiling
5. (1)after the end of boiling,immediately pumping wort into lauter tun&whirlpool tank.
(2)starting to cyclotron precipitation,lay aside for 30 minutes
6.(1)starding cold water valve and wort pump at the same time,cooling wort to a certain temperature in the plate heat exchanger
(2) after wort is cooling ,oxygenating to 8mg/l,pumping wortto fermentation tank
(3)adding special beer yeast into fermentation tank to ferment
7.(1)controlling fermentation temperature and pressure,when brix drop to 4.2,sealing tank to maintain pressure,automatically heating up to 12 °C,deoxidating cold diacetyl
(2)at the end of deoxidating cold diacetyl,cooling uniformly and slowly,precipitating yeast in this process
(3) wine temperature drop to 1 to 2 °C can be stored,tank bottom yeast mud can be recycled
beer equipment list
Each winemaker has his own understand when brewing beer. We are able to design the equipments
according to your personalized request. If you don’t have experience in this field, you can choose
our standard solution as below:
|
Model Eqiupment List |
ZH-1.0 |
Model Eqiupment List |
ZH-1.0 | ||
|
Milling System |
Malt Mill | 300Kg/h |
CIP Cleaning System |
Washing Tank | 1HL/2pcs |
| Work Bin | accessory | Washing Pump | 3m³/h | ||
|
Mashing System |
Mash Tun | 500L/1000L | Pipeline&valves | accessory | |
| Lauter Tun | 500L/1000L |
Cooling System |
Ice Water Tank | 2000L/3000L | |
| Wort Pump | 5m³/h | Cooling Machinery | 5HP/2sets | ||
| Heat Exchanger | 10m² | Ice Water Pump | 1.7m³/h | ||
| Wort Oxygenator | accessory | Pipeline&valves | accessory | ||
| Assemble Pipeline | accessory |
Control System |
DCS Style | box2000*700*400 | |
|
Fermentation System |
Fermentation Tank | 1000L/10pcs | PLC Style | box2000*700*400 | |
| Yeast Tank | 20L | Energy | Steamed Boiler | 72-100kg/h | |
|
Bright Beer Tank (optional) |
2000L | electrical heating | 45kw | ||
| Pipeline&valves | accessory | ||||
trade details
| Description of goods | Micro brewery |
| Capacity | 100L-100HL |
| Material | SUS304 or red copper |
| Warranty | Three years for main equipment |
| MOQ | 1set |
| Delivery time | 15-40 working days, based on the capacity |
| Supply ability | More than 100pcs,based on the capacity |
| Package | Steel frame or wooden cases, according to your requirement |
| Payment term | T/T |
| Trade term | FOB/EXW |
| Port of loading | Qingdao |

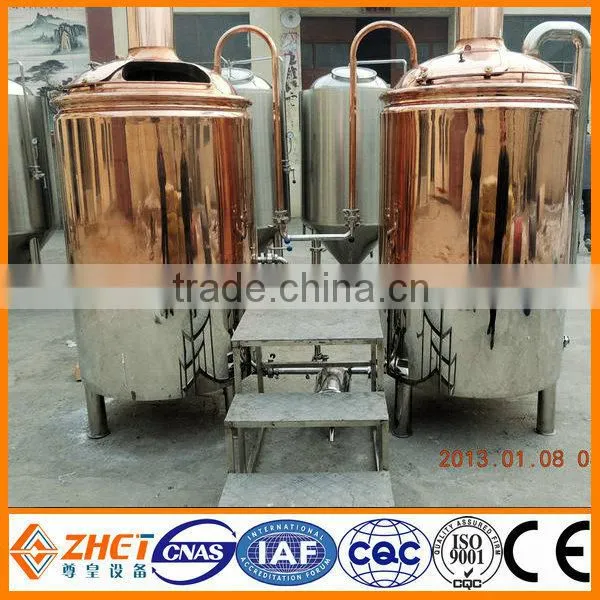

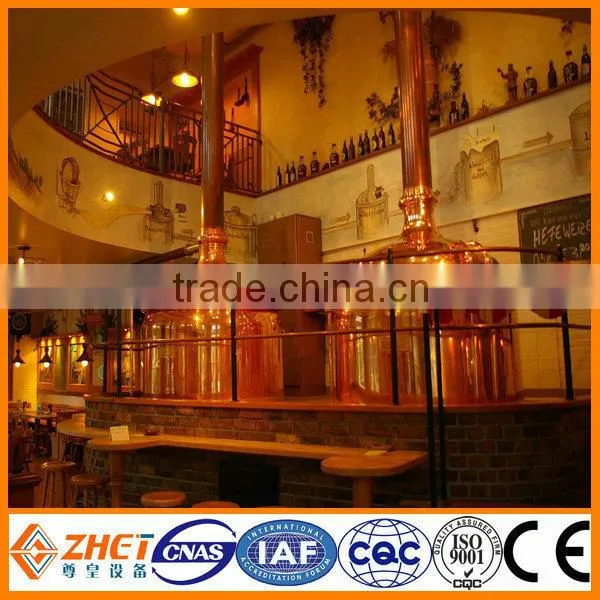

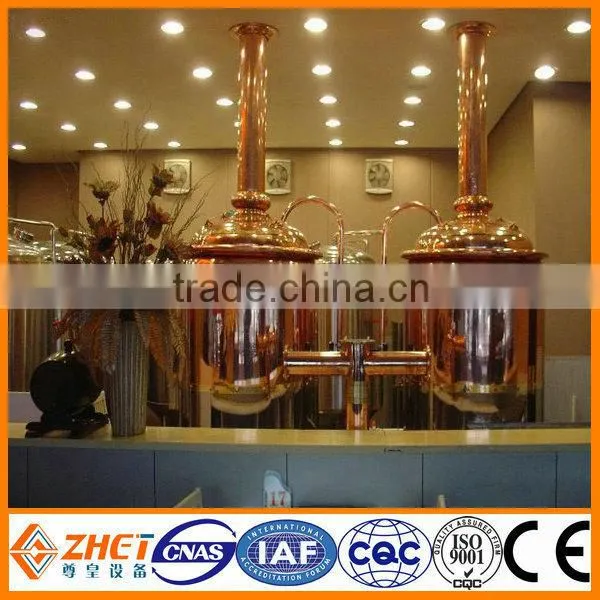

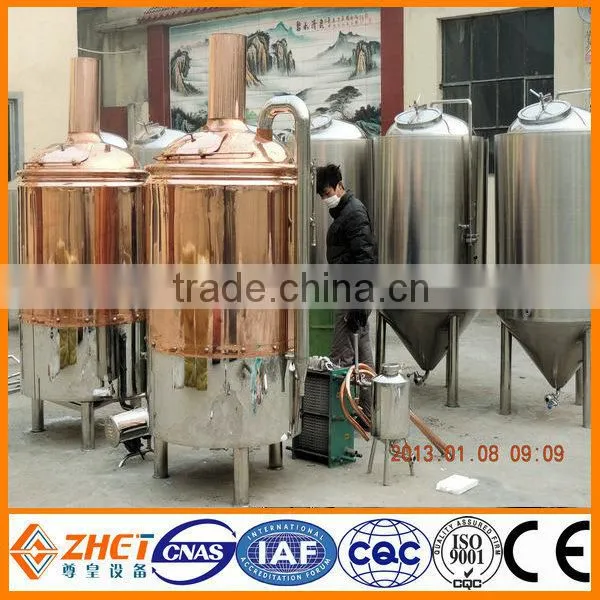

product photos
CE&ISO certification
our service
1. |
Free consultation service before, during, and after sales. |
2. |
Project planning and design services. |
3. |
Free debugging instruction of equipment until everything is functional |
4. |
Management of equipments' long distance shipping from seller's factory to named port or station by buyer. |
5. |
Training of equipment maintenance and operating personally |
6. |
New production techniques |
7. |
Provide 36 months complete warrantee for main parts and life-time maintenance service; The seller is r esponsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free |
