home brewing equipment

Specifications

home brewing equipment
1.high quality,best service
fessional design
3.free installlion
4.OEM factory ,CE&ISO



     because of professional,so we are respectable

production description

home brewing equipment :Mash system is composed by mash tun, brew kettle, lauter tun, whirlpool tank and valves and pipe fittings, the main heating methods of mash tun & brew kettle are steam heating, electrical heating, gas heating. The tank body is double-deck structure, the space between the decks is filled with materials like "rock wool or polyurethane". Heating area sufficiently achieve the required boiling evaporation capacity, can effectively prevent the leakage of heat energy consumption. The inside surface of tank using international standard stainless steel, the outside surface of tank using good quality red copper, the primitive simplicity and elegant appearance combines with the indoor decoration, not only can brew tasteful beer, but also has the ornamental value as the symbol of work of art.

beer process  flow diagram

1.  (1)Infiltrating ,crushing malt
     (2)Heating the brewing water in brew kettle
2.  (1)Pumping a certain amount of appropriate temperature of hot water into mash tun
     (2)starting rotary blade,uniformly putting into material ,stopping rotary blade when stirring uniformly .timing saccha
     (3)Controlling of water temperature and water quantity,keeping appropriate saccharification temperature ,stirring in every 15 minutes
3.  (1)refluxing turbid wort when saccharification ends .observing through the sight glass, beginning to filter when wort is charified
    (2)washing the tank when the tank exposes in the filtration process ,water temperature 78
    (3)Continue to filtrate after washing the tank,until sugar content meets the requirements.stopping washing the tank and filtrating
4.(1)pumping all the wort into brew kettle ,heated to boiling for 60 to 90 minutes
   (2)in the first ten minutes of boiling,batch adding bitter hops
   (3) adding sweet hops before the end of boiling

5. (1)after the end of boiling,immediately pumping wort into lauter tun&whirlpool tank.
    (2)starting to cyclotron precipitation,lay aside for 30 minutes
6.(1)starding cold water valve and wort pump at the same time,cooling wort to a certain temperature in the plate heat exchanger
   (2) after wort is cooling ,oxygenating to 8mg/l,pumping wortto fermentation tank
   (3)adding special beer yeast into fermentation tank to ferment
7.(1)controlling fermentation temperature and pressure,when brix  drop to 4.2,sealing tank to maintain pressure,automatically heating up to 12 °C,deoxidating cold diacetyl
   (2)at the end of deoxidating cold diacetyl,cooling uniformly and slowly,precipitating yeast in this process
   (3) wine temperature drop to 1 to 2 °C can be stored,tank bottom  yeast mud can be recycled

beer equipment list

Model          Eqiupment List		ZH-1.0	Model          Eqiupment List		ZH-1.0
Milling System	Malt Mill	300Kg/h	CIP Cleaning System	Washing Tank	1HL/2pcs
	Work Bin	accessory		Washing Pump	3m³/h
Mashing System	Mash Tun	500L/1000L		Pipeline&valves	accessory
	Lauter Tun	500L/1000L	Cooling System	Ice Water Tank	2000L/3000L
	Wort Pump	5m³/h		Cooling Machinery	5HP/2sets
	Heat Exchanger	10m²		Ice Water Pump	1.7m³/h
	Wort Oxygenator	accessory		Pipeline&valves	accessory
	Assemble Pipeline	accessory	Control System	DCS Style	box2000*700*400
Fermentation System	Fermentation Tank	1000L/10pcs		PLC Style	box2000*700*400
	Yeast Tank	20L	Energy	Steamed Boiler	72-100kg/h
	Bright Beer Tank (optional)	2000L		electrical heating	45kw
	Pipeline&valves	accessory





trade details

Description of goods	Micro brewery
Capacity	100L-100HL
Material	SUS304 or red copper
Warranty	Three years for main equipment
MOQ	1set
Delivery time	15-40 working days, based on the capacity
Supply ability	More than 100pcs,based on the capacity
Package	Steel frame or wooden cases, according to your requirement
Payment term	T/T
Trade term	FOB/EXW
Port of loading	Qingdao

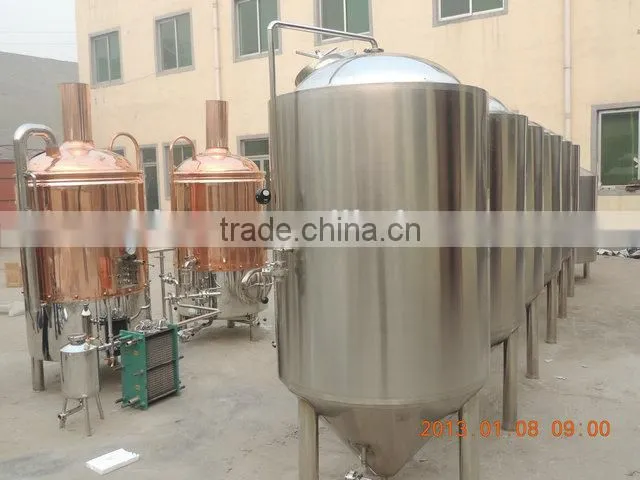

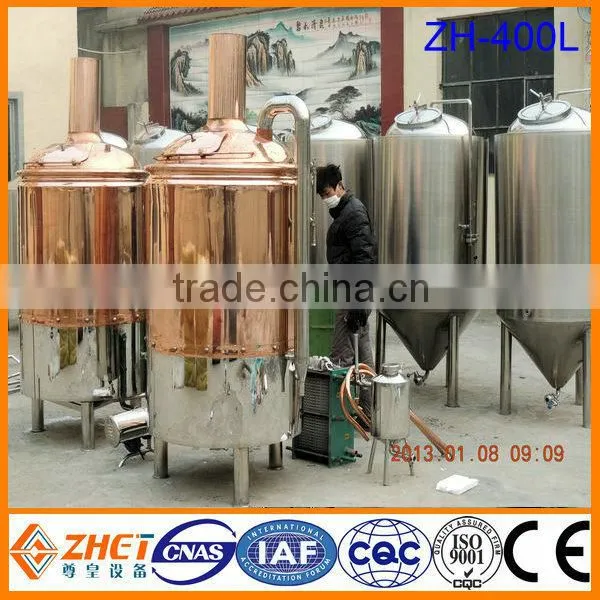

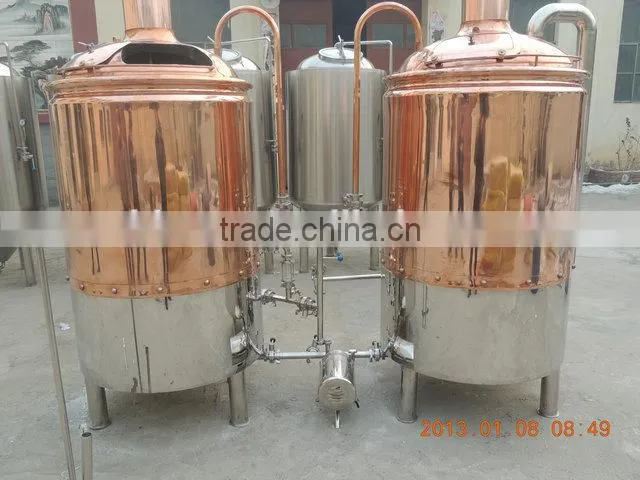

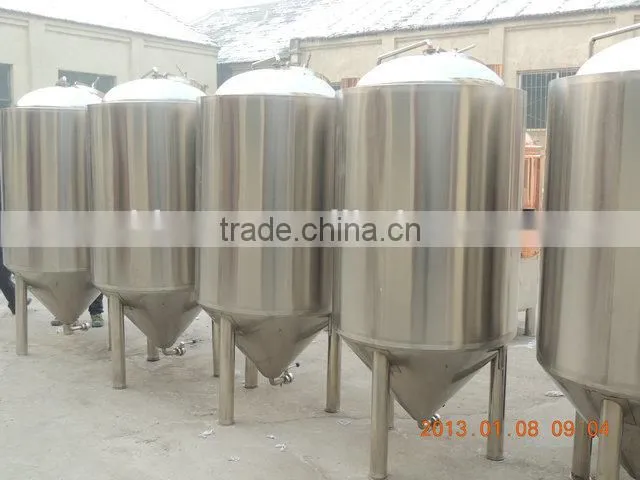

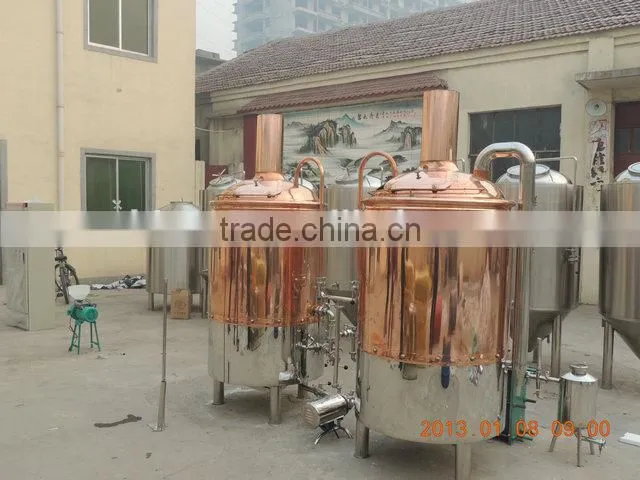

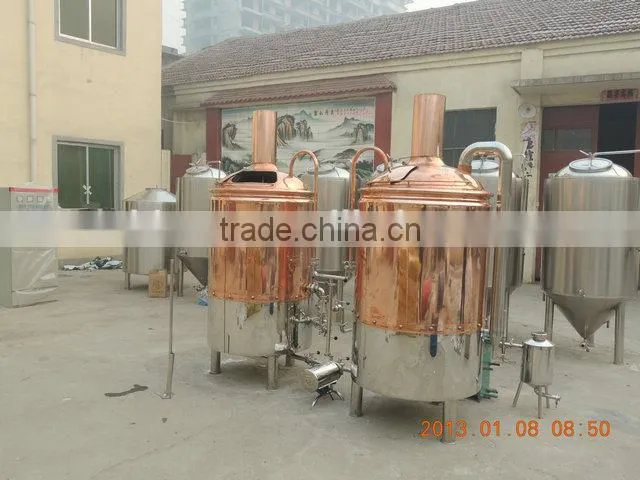

 product photos





CE&ISO certification



shiping and transport

contacting me
