Specifications
fessional design,2.finely processed,
3.superior quality,
4.easy and simple to handle
5.dependable performance
1 . Product info
Since the micro beer brewing equipment come into the world, it has greatly enriched the beer industry,also (brings)a new style and charm daily life for our human beings.It's and also ideal choice for the Hotel, grill house, restaurant, bar, dining and entertainment to self-brewing beer and directly provides an enjoyable feelings for customers. It features by exquisite and luxurious appearance, small footprint, it not only provides high ornamental value, but also allows guests to intuitively watch the whole process of beer production and knows more about the beer culture .
The whole set of equipment includes mashing system, fermentation system, cooling system, control system, CIP systems and other components, The vessels for various systems adopt Height to diameter ratio optimization design, all systems use 304 stainless steel and the argon protection side welding molding technology , thus the inner wall of the vessel welded corners are clean enough to provide quality assurance for the production of high quality puree biological beer. At the same time, the stability of the DCS control system makes the entire equipments high intelligence, it achieves unattended in the true sense,thus it becomes automatic intelligent bio-fermentation equipment to provide a strong guarantee for the production of the bio beer.
2 . Technical specification
Outside surface |
S.S.304,THK:2mm |
Inner surface |
S.S.304,THK:2mm-4mm |
Top shape |
Seal head or conical head |
Heating method |
Natural gas/electricity/LPG/direct fire |
Insulation layer |
Protected by polyurethane ,THK:80 mm |
Polishing precision |
≤0.4µm |
Manhole |
Side upward |
Spral ball |
In the center of the inside tank |
Agitator |
Raking system conneted into a top reducer |
Chimney |
On the top of the tank |
Processing |
Argon-arc welding |
3 . Benefit analysis:(CNY)
The analysis is based on chinese market.
Items |
ZH-0.1 |
ZH-0.2 |
ZH-0.3 |
ZH-0.5 |
ZH-1.0 |
ZH-2.0 |
Malt |
20kg×4.5 |
40kg×4.5 |
60kg×4.5 |
100kg×4.5 |
200kg×4.5 |
400kg×4.5 |
Hops |
0.06kg×150 |
0.12kg×150 |
0.18kg×150 |
0.3kg×150 |
0.6kg×150 |
1.2kg×150 |
Yeast |
0.1kg×1200/5 |
0.2kg×1200/5 |
0.3kg×1200/5 |
0.5kg×1200/5 |
1kg×1200/5 |
2kg×1200/5 |
Water consuming |
0.5t×4 |
1t×4 |
1.5t×4 |
2.5t×4 |
5t×4 |
10t×4 |
Power consuming |
30kw×1h |
50kw×1h |
60kw×1h |
80kw×1h |
150kw×1h |
250kw×1h |
Personal salary |
100×1 |
100×2 |
100×2 |
100×3 |
100×4 |
100×5 |
Missing5% |
8.5 |
17 |
35 |
60 |
60 |
120 |
Management cost |
10 |
10 |
20 |
20 |
30 |
30 |
Material cost |
2 74 |
527 |
690 |
1085 |
1890 |
3400 |
Income |
100L×15 |
200L×15 |
300L×15 |
500L×15 |
1000L×15 |
2000L×15 |
Tax4.4% |
66 |
132 |
198 |
330 |
660 |
1320 |
Day benefit |
1160 |
2341 |
3612 |
6085 |
12450 |
25280 |
Year(200days) benefit |
232000 |
468200 |
722400 |
1217000 |
2490000 |
5056000 |
4 .Detailed pics as below:

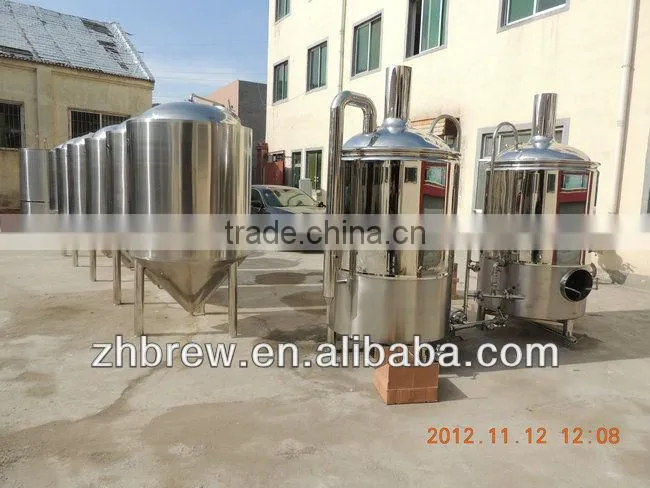

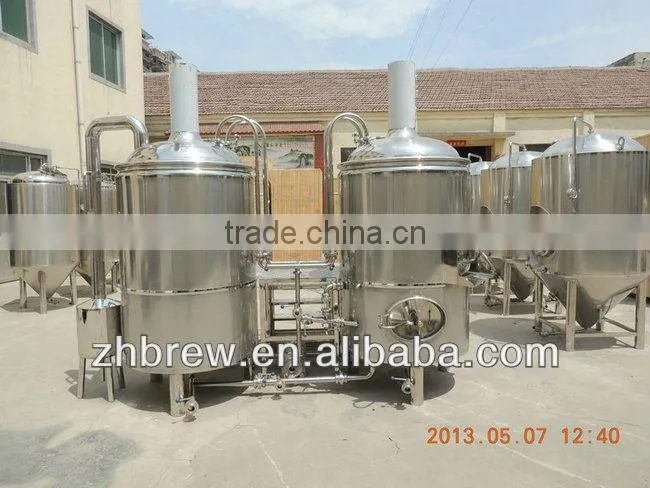

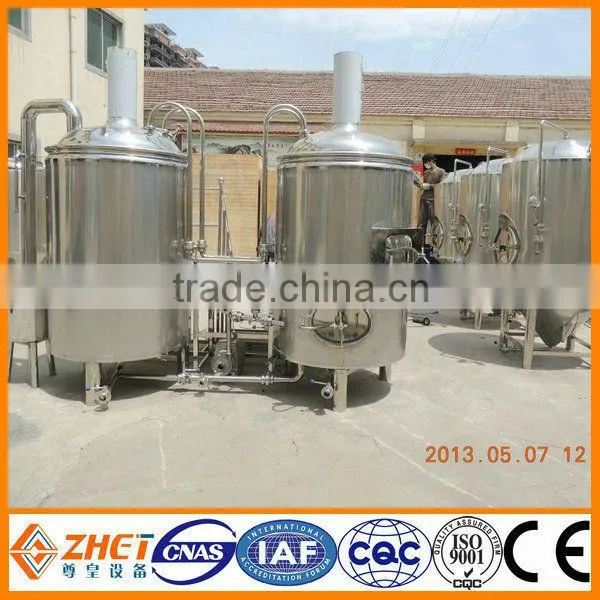

whole

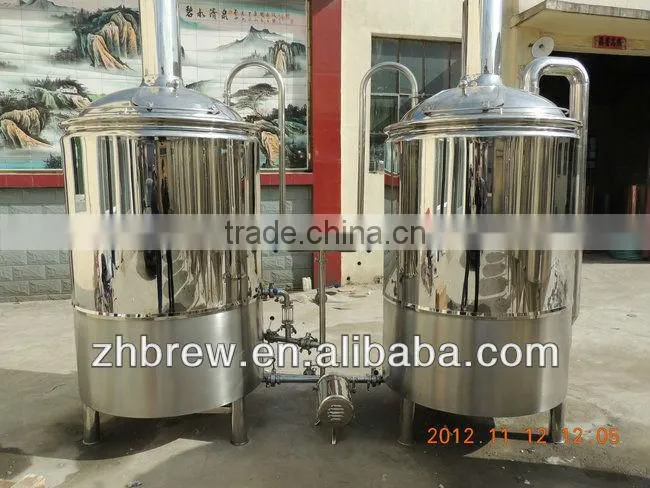

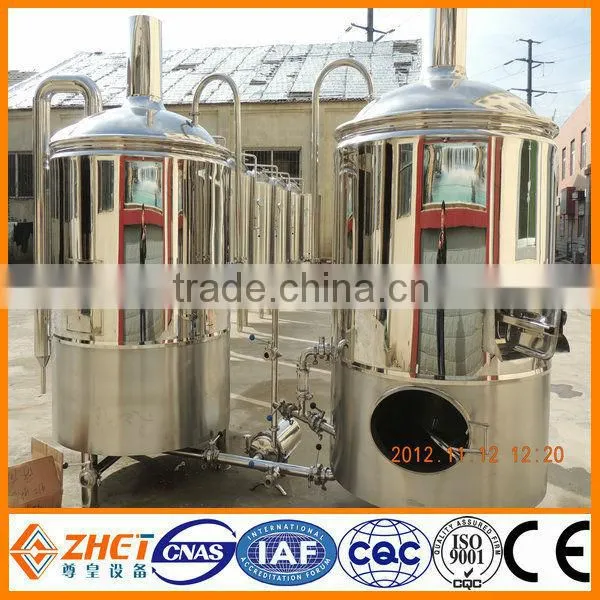

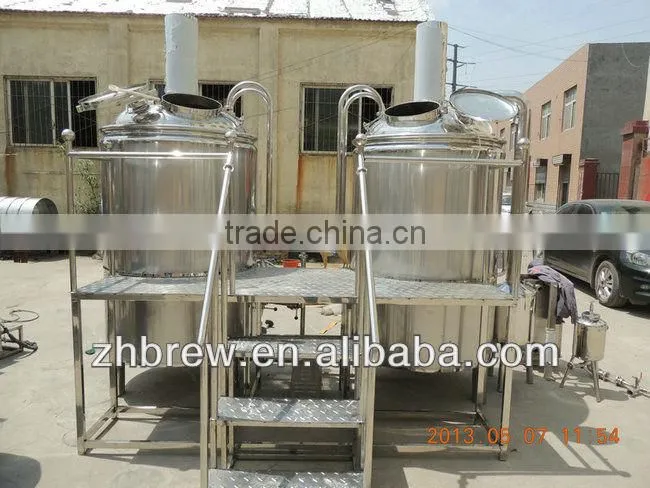

Mash system

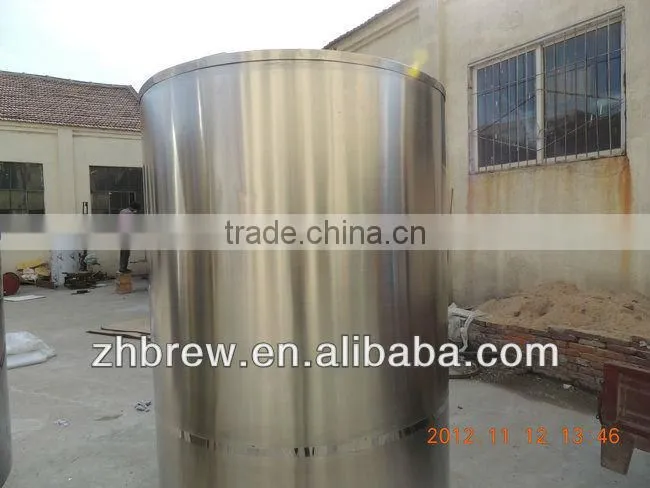

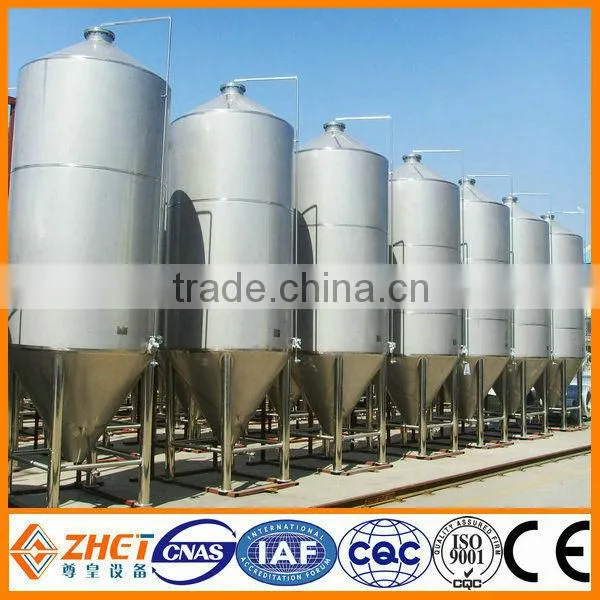

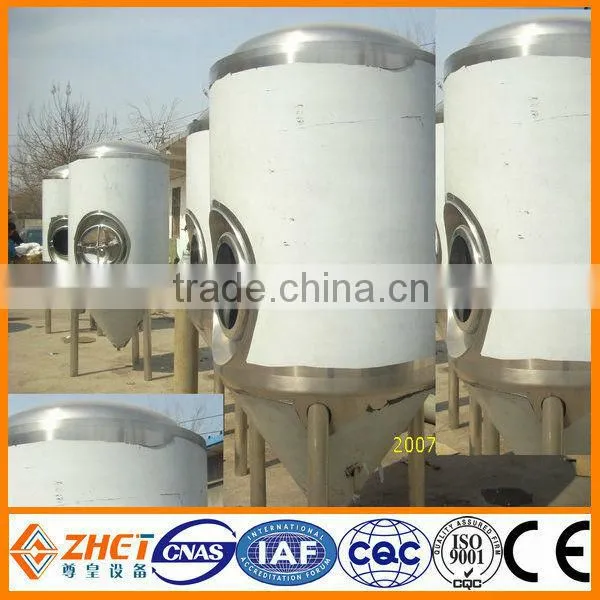

Fermentation system

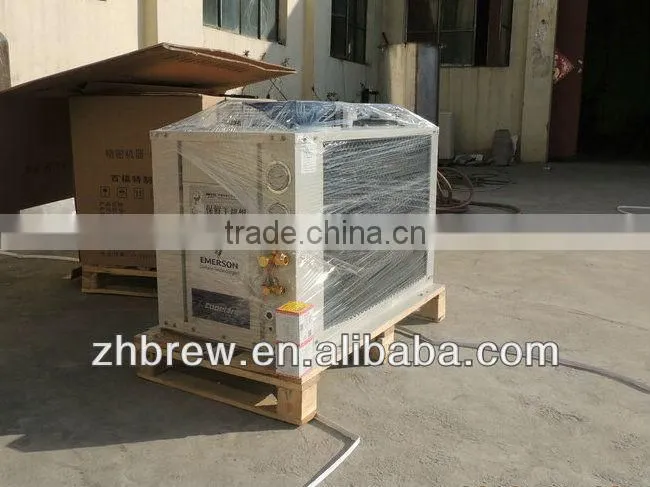

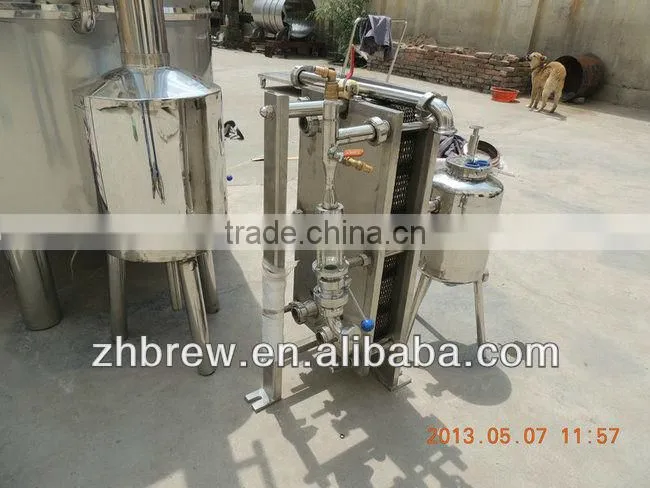

Cooling system

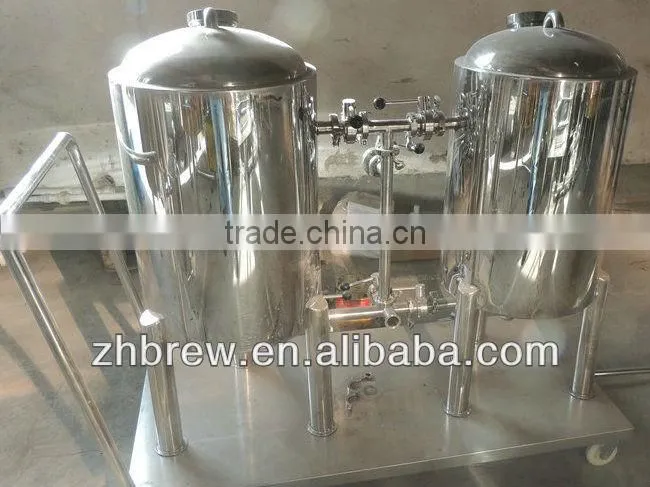

CIP system

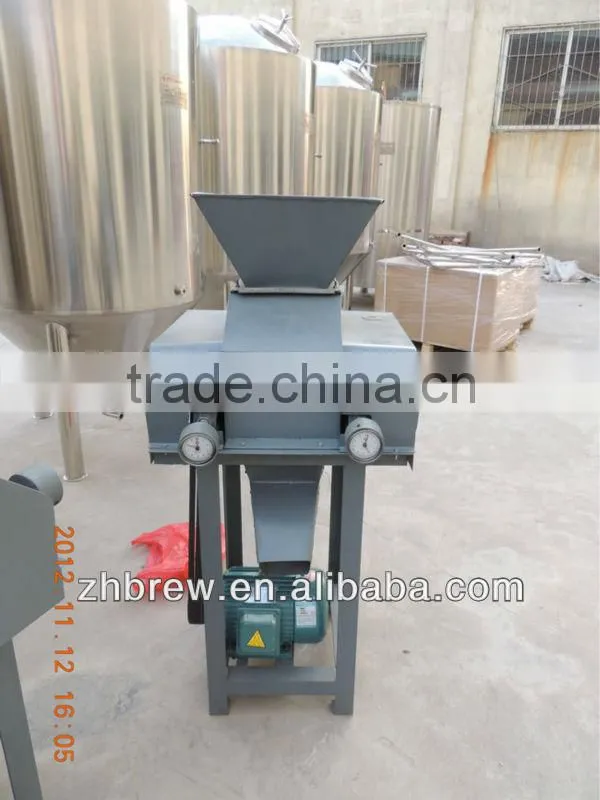

Milling system

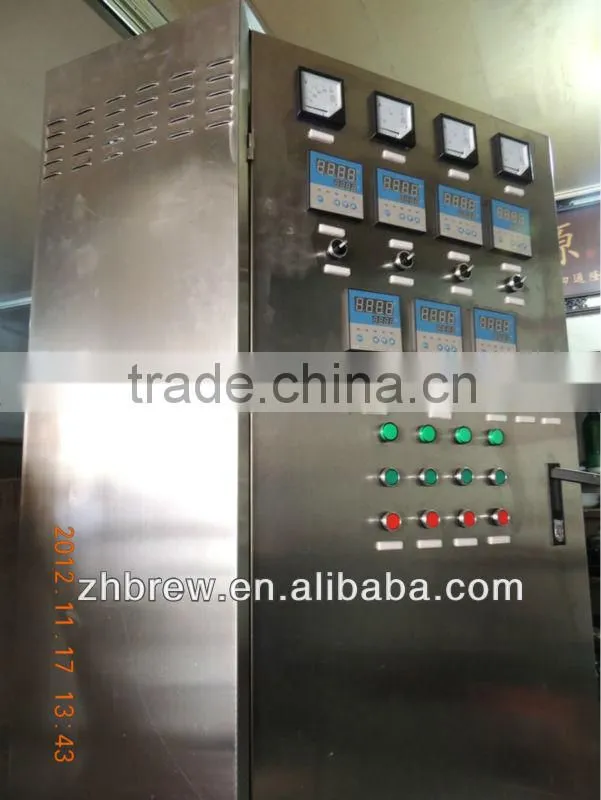

Control system
Delivery!
If interested, please contact with me freely for more information of beer equipment!
Beer equipment, prefer ZunHuang brewing equipment!
Let's drink to our long- term friendship and further mutually beneficial cooperation!
