Specifications
fessional design,2.finely processed,
3.CE,ISO9001
4.free installation,personnel training
5.can brew many kinds of beer
1 . Product info
1. Fermentation system is usually composed of 6 12 fermenter tank, specifications is from 100L to 2000L and all species diversity, can also be customized according to your need;the equipment bladder using international standards of high quality stainless steel material welded together, PU high pressure foaming insulation cone bottom structure;outsourcing can use stainless steel mirror, dumb light ,carbon steel ,spray and other forms according to customer demand .
2 .Adopts international standardization beer fermentation production technology, the internal mirror polishing which can achieve ≤0.8um≤0.6um≤0.2um polishing quality standard and fully meet the beer fermentation, PLC automatic cleaning ,disinfection system requirements.
3 .Fermenter cooling jacket, can meet the technical standard of countries all over the world, adopts the Maitreya edition ,arch channel ,corrugated channel ,screw and clip swap hot way to meet different cooling medium and the pressure of the heat exchange technology needs.
4.Connection with washing sterilization pipeline is between the fermenter material pipelines, cooling return pipe and Co2 pipeline. All stainless steel pipeline contact with material adopts health level ISO or PIN standard pipe, both inside and outside wall polishing to meet the food hygiene standards
2 . Technical specification
Total volume |
1100L |
Effective volume |
1000L |
Working pressure |
0.25MPA |
Pressure control |
Automatic or manual |
Tank type |
Vertical type |
Inside surface |
Stainless steel 304, Thickness:3.0mm |
Outside surface |
Polishing or frosting stainless steel, Thickness:3.0mm |
Mushroom head |
Stainless steel,thickness:3.0mm |
Lower Cone Design |
Cone sealing ,thickness :3.0mm, Conical degree:60° |
Seam |
Polishing processing |
Cleaning method |
CIP spray ball, CIP entrance on the top,spray ball inside |
Temperature Measurement |
PT100 Temperature Probe |
Thermal Insulation Material |
Polyurethane Insulation, Thickness:100mm |
Ice water bank |
thickness: 1.5mm,,Ice water inlet and outlet,sampling mouth. |
|
With |
CIP arm with sprayball, Blow off arm, Temperature ports, Perlick sample valve, Racking arm with rotation indicator, Shadowless inswing/outwing manway door, Glycol cooling jackets-22psi(2 bar), Pressure relief valve(s) |

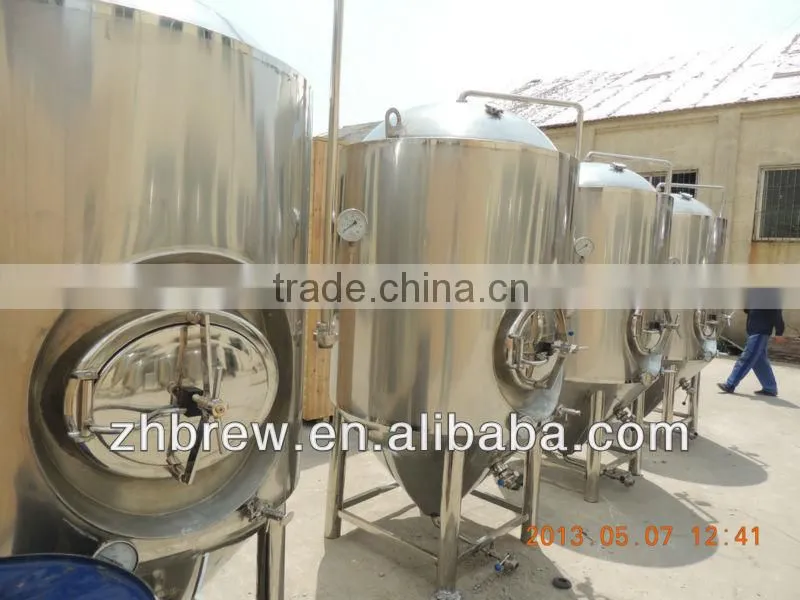

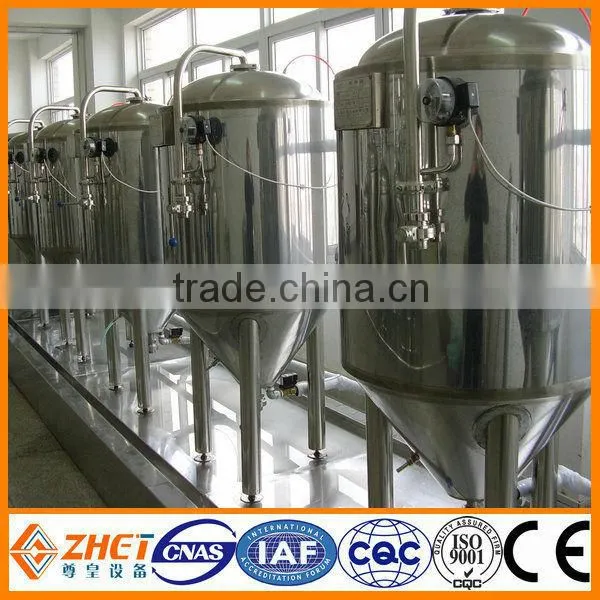

3.Detailed pics as below:

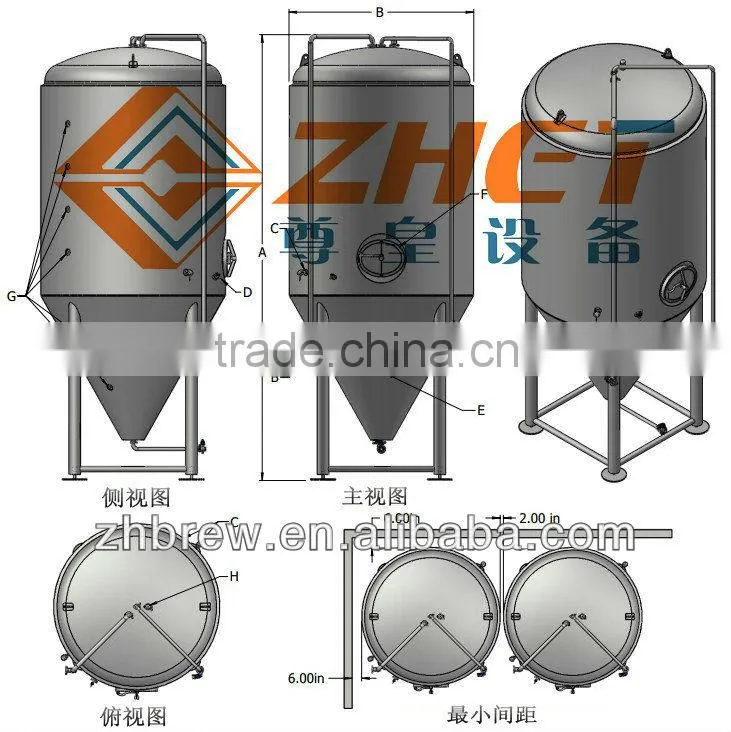

Diagram

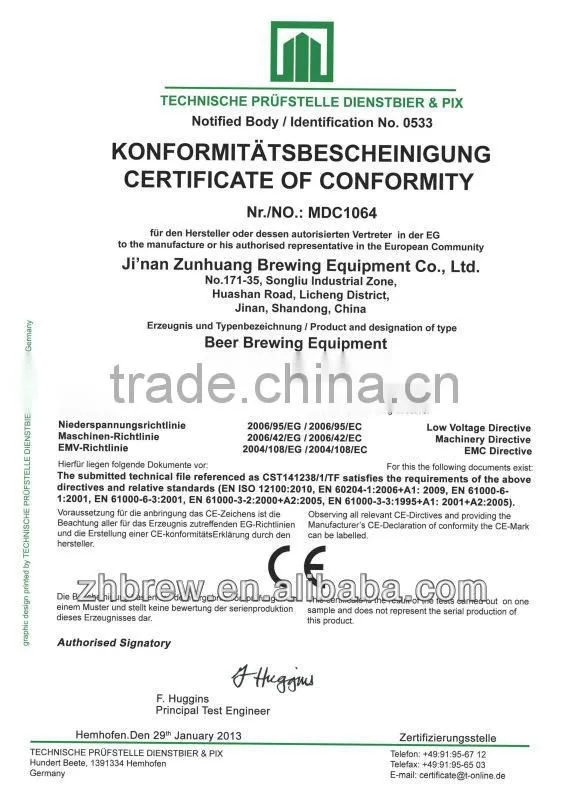

CE Certification
Let's drink to our long- term friendship and further mutually beneficial cooperation!
