stainless steel conical beer fermentation tanks

Name: stainless steel conical beer fermentation tanks
Brand: ZunHuang
Availability: InStock

FOB Price

USD $2,200 - $5,200 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	ZunHuang	Model Number	ZH-1.0
Processing Types	Alcohol	Voltage	220V/380V/100V
Certification	CE,ISO9001-2008	Warranty	3 years
After-sales Service Provided	Overseas service center available

fessional design,
2.finely processed,
3.superior quality,
4.easy and simple to handle,
5.dependable performance.

1. Product info

The fermentation tank ,Conical degree:60°

2 . Technical specification

Total volume	1100L
Effective volume	1000L
Working pressure	0.25MPA
Pressure control	Automatic or manual
Tank type	Vertical type
Inside surface	Stainless steel 304, Thickness:3.0mm
Outside surface	Polishing or frosting stainless steel, Thickness:3.0mm
Mushroom head	Stainless steel,thickness:3.0mm
Lower Cone Design	Cone sealing , stainless steel,thickness :3.0mm Conical degree:60°
Seam	Polishing processing
Cleaning method	CIP spray ball, CIP entrance on the top,spray ball inside
Temperature Measurement Method	PT100 Temperature Probe
Thermal Insulation Material	Polyurethane Insulation, Thickness:100mm
Ice water bank	thickness: 1.5mm,,Ice water inlet and outlet,sampling mouth.
With	CIP arm with sprayball, Blow off arm, Temperature ports, Perlick sample valve, Racking arm with rotation indicator, Shadowless inswing/outwing manway door, Glycol cooling jackets - 14.7psi (1 bar), Pressure relief valve(s)

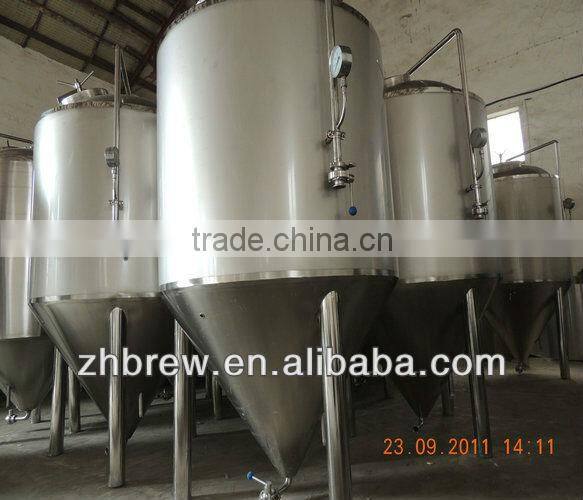

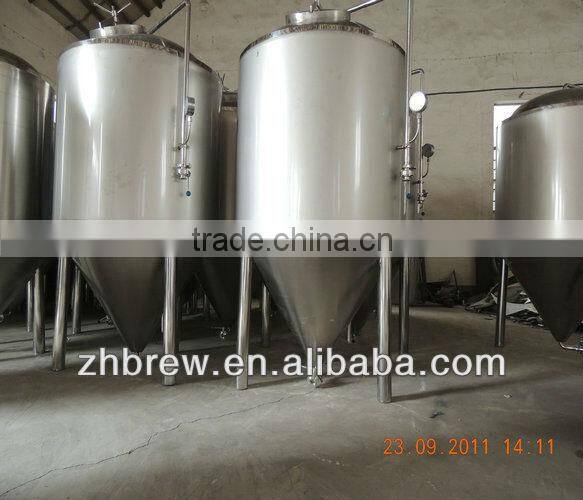

3 .Detailed pics as below:

Delivery!

Let's drink to our long- term friendship and further mutually beneficial cooperation!

If interested, please contact with me freely for more information of beer equipment!

Beer equipment, prefer ZunHuang brewing equipment!
