GMPT-2010 Microwave Plasma Torch System;

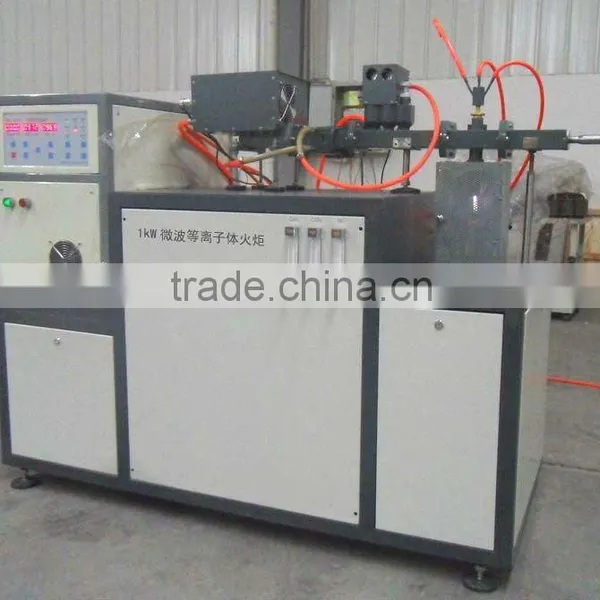

GMPT-2010 Microwave Plasma Torch System
Features:
The GMPT-2010 1kW Microwave Plasma Torch System is ideally suited for chemical using atomic emission spectroscopy (AES) and chemical processing that cannot be done in vacuum. It also finds application in CVD synthesizing of SiO2 and diamond films, surface modification of metal materials, surface fine processing of limestone slices, super fine powder, heating treatment an etc
High temperature, high plasma density and chemical reaction with materials easy controlled.
Compatible with most reactive gases.
Stable operation and easy controlled.
Specification |
|
Operation frequency |
2450±50MHz |
Output |
0.1kW to 1kW (continuously adjustable) |
Power Stability |
< ±1% ( at rated power level ) |
Waveguide |
WR340 with FD26 Flange |
|
Power Supply (1 and 2 optional) |
1)380V±10% 50Hz,3 Phase 4 Line,3kVA 2)220V±10% 50Hz,Single Phase,2kVA(switching power supply) |
Cooling Water |
> 3 L/min |
System VSWR |
VSWR ≤ 1.5 |
Leakage |
Accordance with IEC Standard ) |
Gas |
There are two-way gases (Compatible with most reactive gases) |
Operation range |
100 Torre to atmospheric pressure |
