2kW-2450MHz Microwave Power Source

Specifications

Summarizing our long year’s experience in manufacturing and developing high reliable microwave source and the feedback of customers, after elaborate design and improvement, we successfully manufacture GMG-2020P 2KW programmable control microwave source. It possesses the high reliability, excellent performance, stable working situation, and convenient operation.

This system adopts PLC program control, which has the features of high control accuracy, perfect stability, and easy operation.

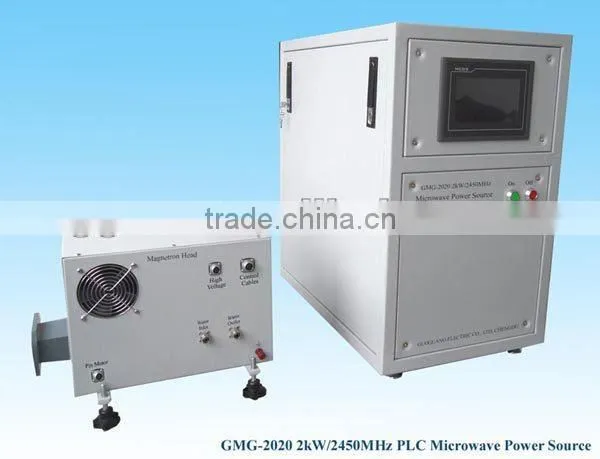

This system adopts the separated structure of control cabinet and power head, which is propitious to connect different models of waveguide system.

The user can connect it with corresponding reactors. It can be broadly used in scientific research and manufacture in high technology area, such as MPCVD of various kinds of film (diamond, diamond-like, and so on); microwave ECR system, microwave plasma source, and microwave exquisite ceramics sintering.

Features:

  a) Use the magnetron 2M-259 as microwave generator with 2kW output power.

   b) transmitting system: can optionally match according to the customer’s requirement, such as circulator, short load, electrical three-pins modulator, and so on.

   c) Control system: adopts PLC control, being capable of controlling microwave output power, reacting power and working time.

General Specification:

  1) Frequency:        2450MHz +- 25MHz

  2) Power supply:      380VAC+-5%, 50Hz, three phase, four wire

  3) Power output:      200W - 2000W  continuous adjustment.

  4) Power Consumption:  3.1 kW,

  5) Power stability:     +-1%(at the 2kW output power level).

  6) Power display:     Digital displays the power output, reflected power,

                        operating time and the input data.

  7) Transmitting system: This power source is suggested to match with WR-340 transmitting system, which consists of circulator, dummy load, tuner and others, so that it can be working stable with a various load.

  8) Interlock protection:  Power overload, lack of water and others.

  9) Microwave leakage:   Follow the International Standard.

 10) Output waveguide:   WR340 with FD340 standard flange.

 11) Cooling water flow:   0.15-0.2 m3 / h, clean and soft water

Water temperature:  Water inlet: < 25C; Water outlet: < 35C

 12) Size:  Control Cabinet  750(L) x 500(W) x 650(H) mm,

          Magnetron Head  350(L) x 340(W) x 280(H) mm.
