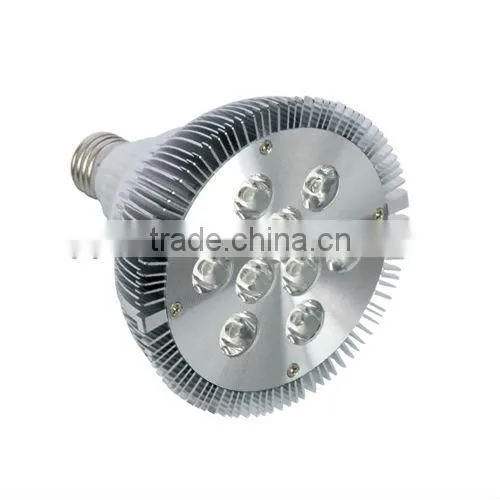

Help Center10W LED Spotlight
Related Products
Specifications
-LED Spotlight can better control the light spectral composition, which can well be used in museums and exhibition of partial or10W LED Spotlight
-LED Spotlight can better control the light spectral composition, which can well be used in museums and exhibition of partial or focus lighting.
-LED Sportlight is very strong luminous directivity, brightness attenuation is much lower than traditional source.
-LED Spotlight light energy is highly concentrated, concentrated in a smaller wavelengh window, high purity.
êElectrical Parameter(Ta=25°C±3°C)
Parameter |
Symbol |
Unit |
Min. |
Typ. |
Max. |
Input Voltage |
VIN |
V |
100 |
-- |
240 |
Input Current |
IIN |
mA |
55 |
-- |
175 |
Input Frequency |
F |
Hz |
50 |
-- |
60 |
Harmonics Current |
THD |
% |
12 |
14 |
16 |
Power |
P |
W |
9.5 |
10.0 |
10.5 |
Power Factor |
COSΦ |
-- |
0.83 |
0.88 |
0.93 |
Operating Temperature |
TOP |
°C |
-20 |
25 |
+60 |
Operating Humidity |
HOP |
%RH |
23 |
-- |
93 |
Storage Temperature |
HOP |
%RH |
10 |
20 |
30 |
êPhotometric Parameter(Ta=25°C±3°C)
Parameter |
Symbol |
Unit |
Min. |
Typ. |
Max. |
Lumen Output |
FLUX |
lm |
815 |
850 |
885 |
Lux at 1m |
E |
lx |
3515 |
3650 |
3775 |
Lux at 2m |
E |
lx |
865 |
910 |
952 |
Lux at 3m |
E |
lx |
382 |
400 |
419 |
Color Temperature |
TC |
K |
2700 |
-- |
6500 |
Color Rendering Index |
CRI |
-- |
67 |
70 |
73 |
Send Inquiry to This Supplier
