HOT 1x2 for 3D 1080P 4Kx2K H DMI Splitter

FOB Price

USD $15 - $25 / Piece

50 Pieces(Min.Order)

Product Details

Brand Name:

OEM

Model Number:

WH-SP002

Place of Origin:

Zhejiang, China

HOT 1x2 for 3D 1080P 4Kx2K HDMI Splitter

Model: WH-SP002

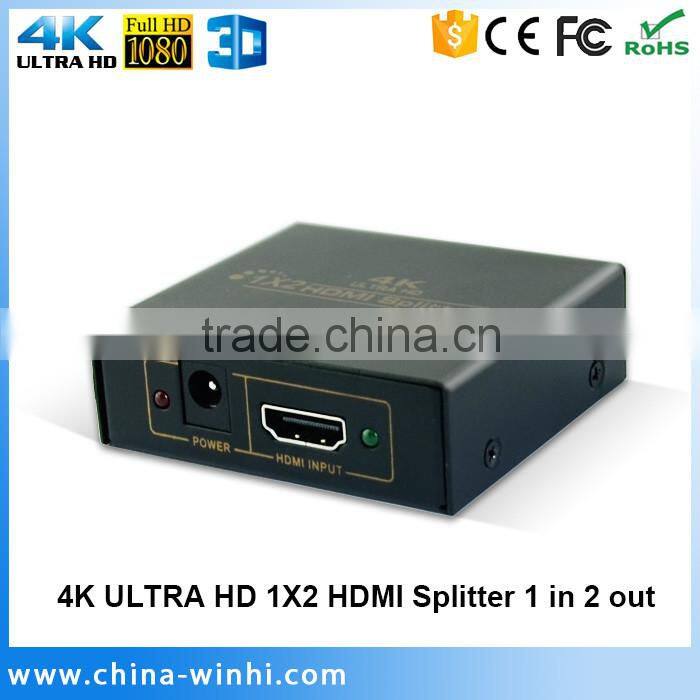

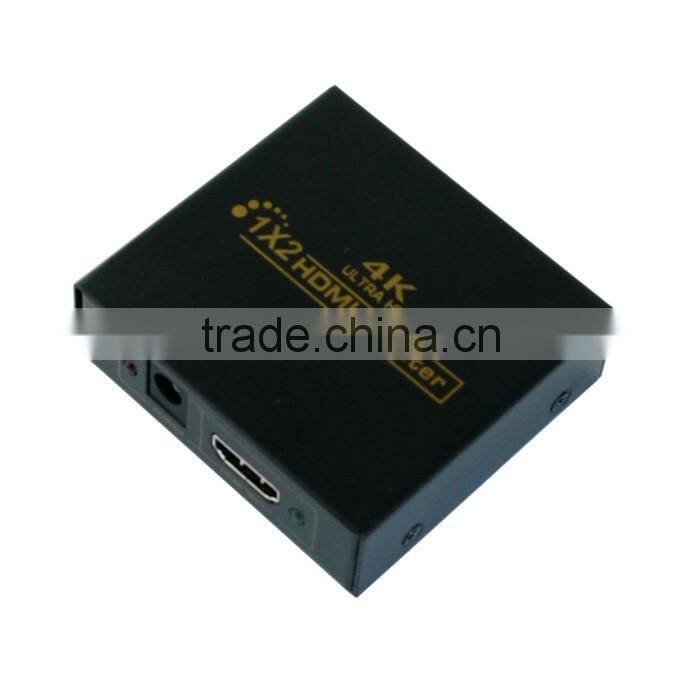

Item: 4K ULTRA HD 1X2 HDMI Splitter 1 in 2 out

Product Description

Feature

One HDMI input signal split to two HDMI sink devices

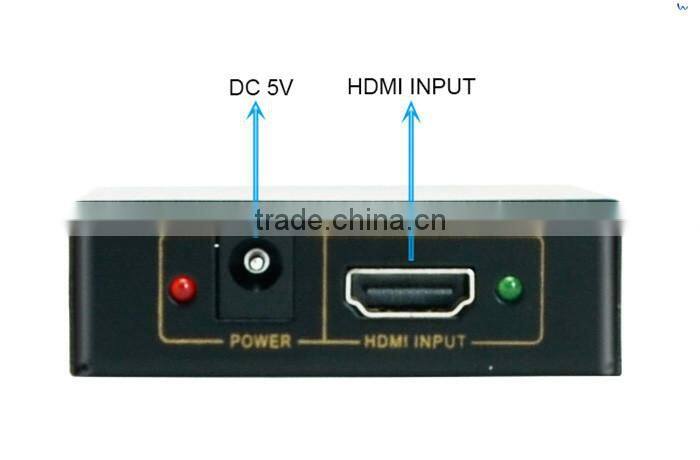

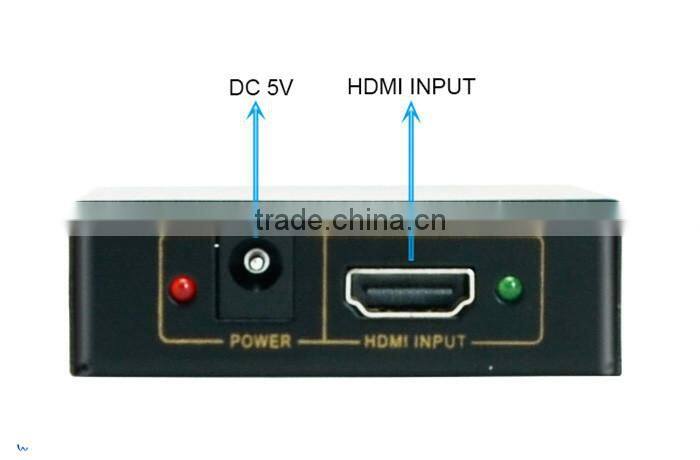

Connect one cable from HDMI source devices into HDMI Splitter input.

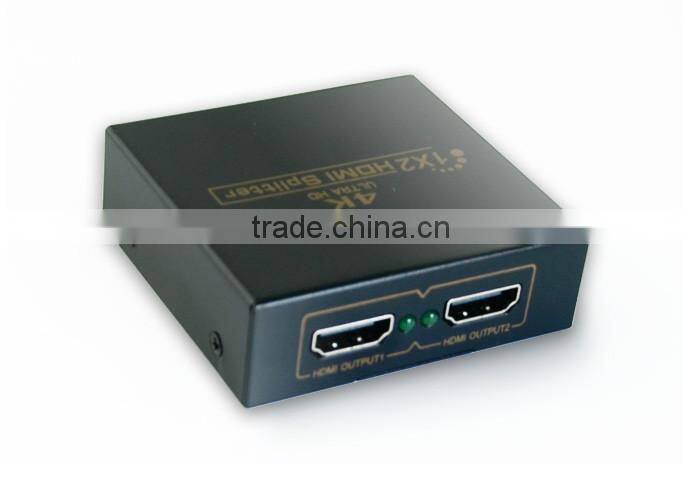

Connect one cable from HDMI Splitter outputs to two monitor.
Support 3D
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support signal retiming
Support input up to 5metres AWG26 HDMI standard cable length, output up to 10metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/1A power supply

Specification

HDMI resolution(Max)	1080p@120Hz, 4Kx2K@30Hz
Support video color format	24bit,30bit,36bit deep color
Support audio format	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth	340MHz
Max baud rate	10.2Gbps
Input/Output TMDS signal	0.5~1.5Volts p-p
Input/Output DDC signal	5Volts p-p
Input cable distance	≤15m AWG26 HDMI standard cable
Output cable distance	≤25m AWG26 HDMI standard cable
Max working current	500mA
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature Range	-15℃ to +55℃
Operating Humidity Range	5 to 90%RH (No Condensation)

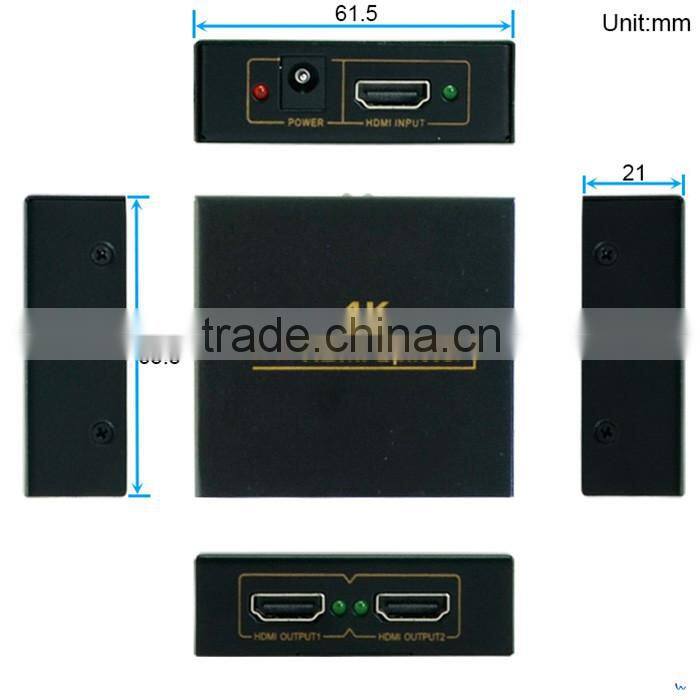

Dimension (L x W x H)	61.3x65.3x20.7 (mm)
Weight	90g


Our Services

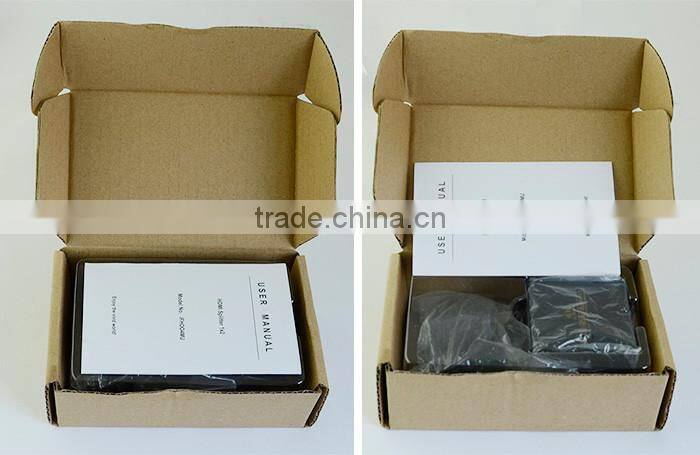

Packaging & Shipping
