Change h Dmi to AV Easy Operating Converter Mini

US$ 16 - 22 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

ODM

Model Number:

WH-CN206HHA

Ningbo Winhi Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name ODM

Model Number WH-CN206HHA

Type Other, H DMI to H DMI+Audio

Application Multimedia

Color White

Packing Double Blister

Outer Diameter Optional

Connector Color Other, White

Connector Type HDMI

Shielding Combination

Gender Other, No

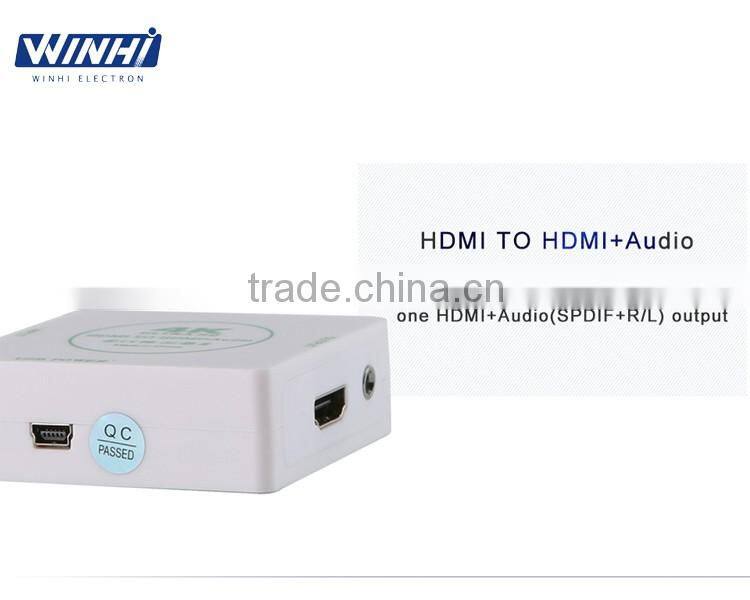

DC 5V/1A H DMI to H DMI+Audio flexible mini converter

Model:WH-CN206HHA

Item:4K UHD HDMI TO HDMI+Aidio Converter

Product Description

HDMI Resolution	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

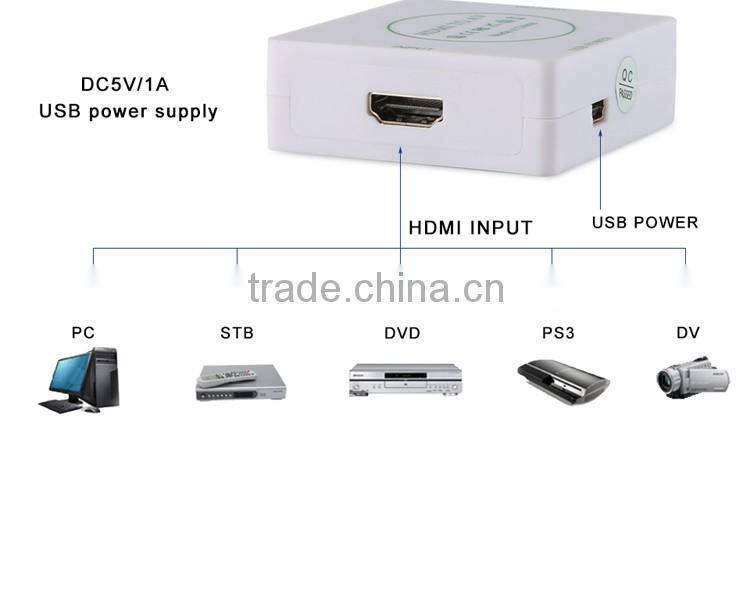

HDMI Input	Up to 1080P(50/60Hz)

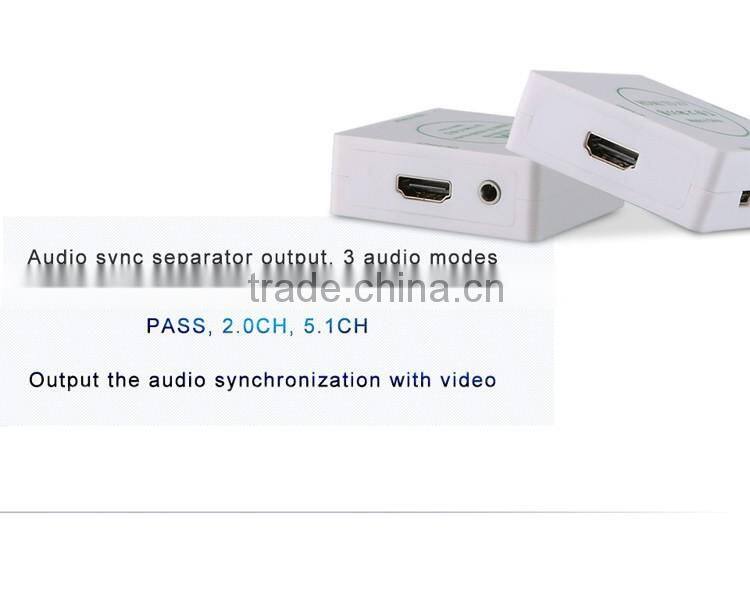

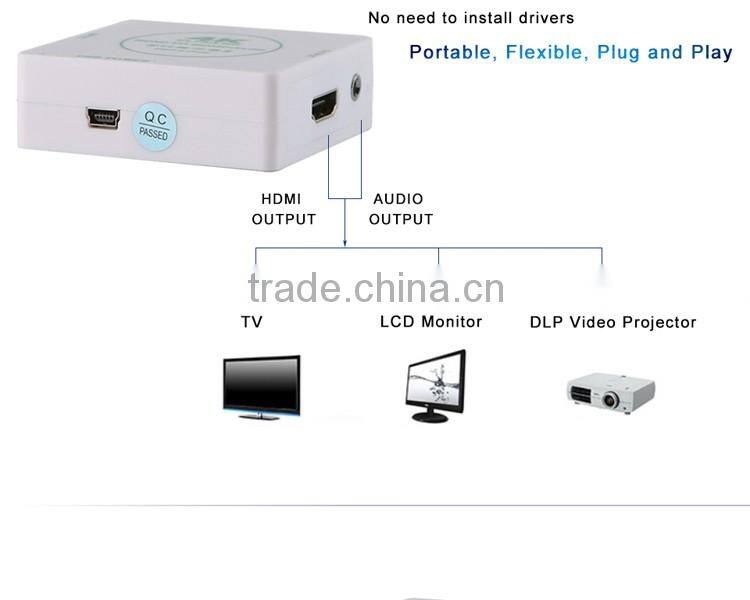

Audio Output Interface	SPDIF+Analog audio R/L output
Screen Color Format	24bit/deep color 30bit,36bit
Power Adapter Specifications	Input:AC(50HZ,60HZ)100V-240V;Output:DC5V/1A
Maximum Band Width	225MHz
Maximum Baud Rate	6.75Gbps
Input/output TMDS signal	0.5~1.5Volts p-p
Input/output DDC signal	5Volts p-p(TTL)
Input Cable Length	≤15m AWG26 HDMI standard cable
Output Cable Length	≤20m AWG26 HDMI standard cable
Maximum Operating Current	500mA
Operating Temperature Range	-15℃ to +55℃
Operating Humidity Range	5 to 90%RH (No Condensation)
Dimension(LxWxH)	605720mm
Remarks:We reserve the right of updating products and function without inform separately.
