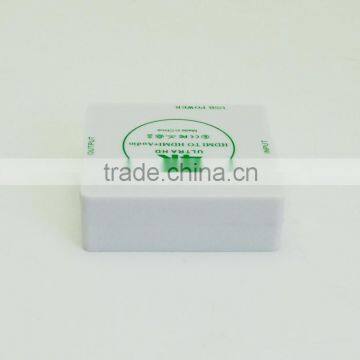

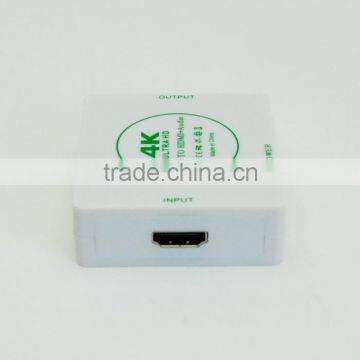

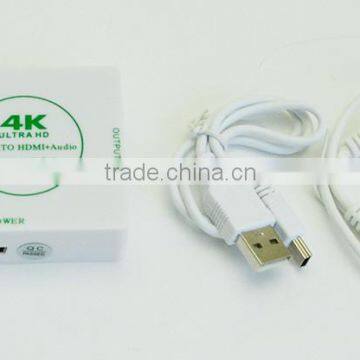

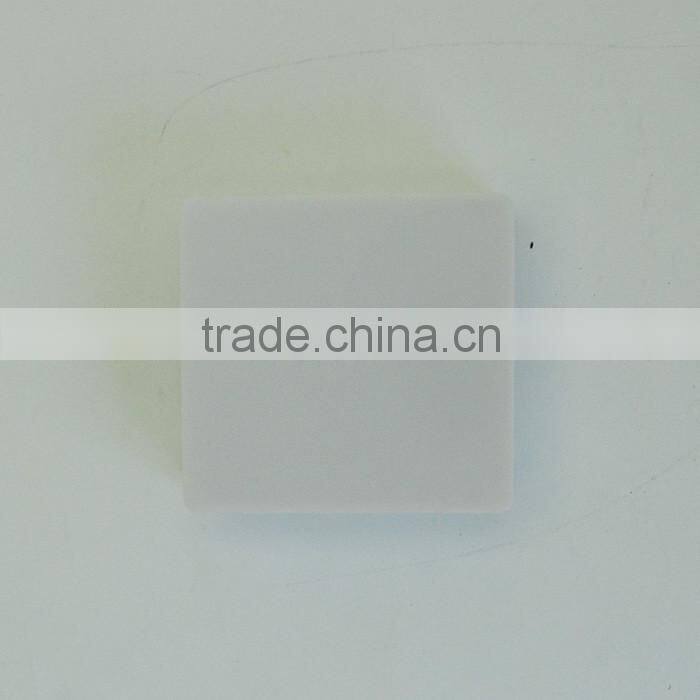

4K UHD HDMi Adapter HDMI TO HDMI Aidio Converter

US$ 15 - 20 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

ODM

Model Number:

WH-CN206HHA

Ningbo Winhi Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO PORT

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name ODM

Model Number WH-CN206HHA

Type Other, HDMI TO HDMI Aidio Converter, hdmi converter

Application Multimedia

Color White

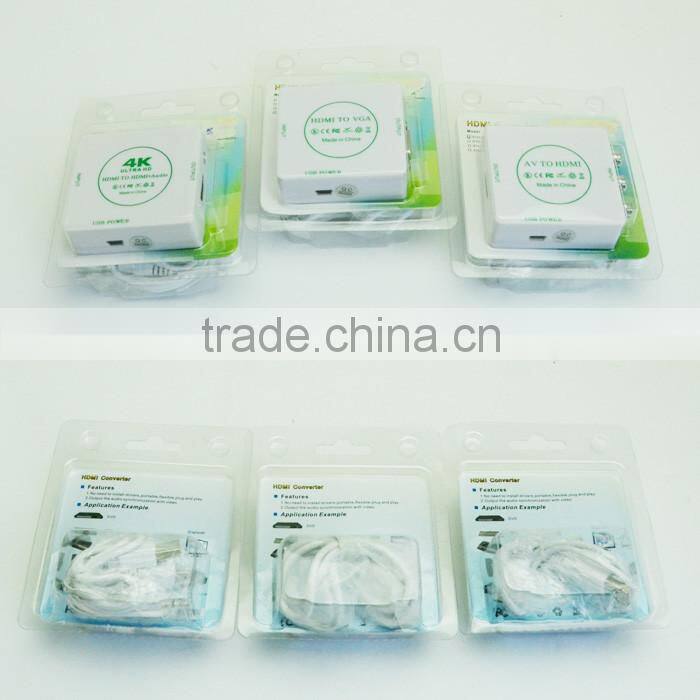

Packing Double Blister

Outer Diameter Optional

Connector Color Other, White

Connector Type HDMI

Shielding Combination

Gender Other, No

4K UHD HDMi Adapter HDMI TO HDMI Aidio Converter

Model: WH-CN206HHA

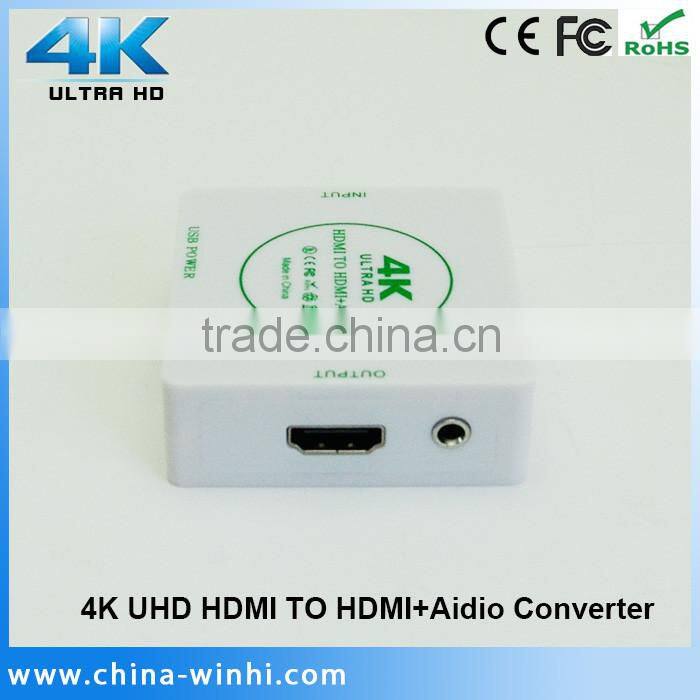

Item: 4K UHD HDMI TO HDMI+Aidio Converter

Product Description

Feature

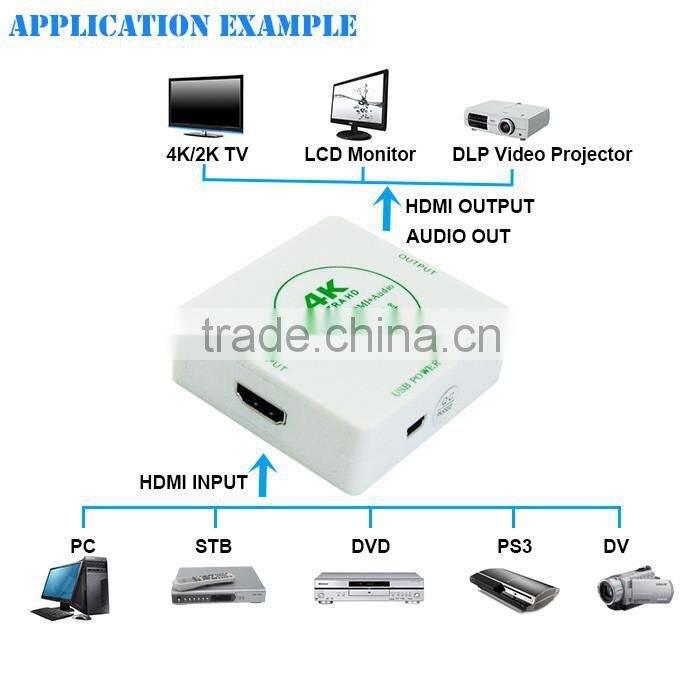

One HDMI signal into one HDMI+Audio(SPDIF+R/L) output
Audio sync separator output, 3 audio modes to choose from: PASS, 2.0CH, 5.1CH
No need to install drivers, portable, flexible, plug and play
Output the audio synchronization with video

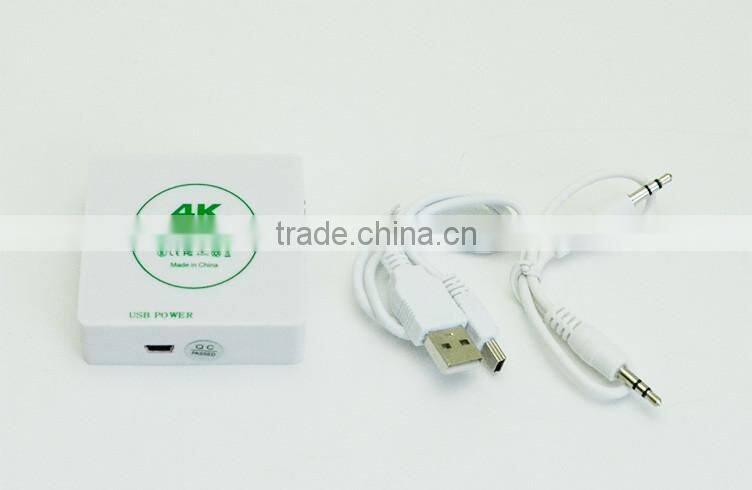

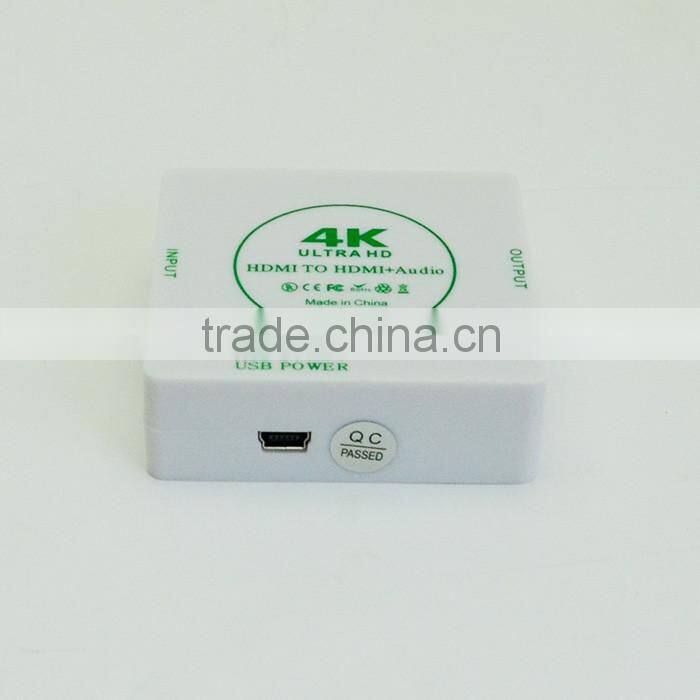

DC5V/1A USB power supply

Specification

HDMI Resolution	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
HDMI Input	Up to 1080P(50/60Hz)
Audio Output Interface	SPDIF+Analog audio R/L output
Screen Color Format	24bit/deep color 30bit, 36bit
Power Adapter Specifications	Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Maximum Band Width	225MHz
Maximum Baud Rate	6.75Gbps
Input/output TMDS signal	0.5~1.5Volts p-p
Input/output DDC signal	5Volts p-p (TTL)
Input Cable Length	≤15m AWG26 HDMI standard cable
Output Cable Length	≤20m AWG26 HDMI standard cable
Maximum Operating Current	500mA
Operating Temperature Range	-15℃ to +55℃
Operating Humidity Range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	605720mm
