10 inch portable tv open frame advertising products digital price display for supermarket

FOB Price

USD $90 - $105 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port NINGBO
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	OEM
Model Number	PT101MD-6	Type	TFT
Application	Indoor	Panel Size	10.1 Inch
Max Resolution	1280*800	Viewing Angle	160o / 160o
Pixel Pitch	0.4845mm	Color	16.7M
Contrast Ratio	500:1	Brightness	350cd/m2
Response Time	8ms	Input Voltage	110-220v

Product Description

10 inch portable tv open frame advertising products digital price display for supermarket

Product Description

Model: PT101MD-6(push button)

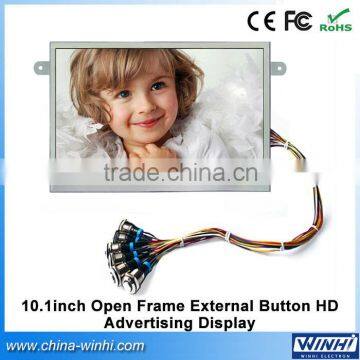

Item: 10.1inch Open Frame External Button HD Advertising Display

It supports at most 6 buttons. You can setup 7 file folders (folder 00, 01, 02, 03, 04, 05, 06) in the memory card. Folder 00 is played as homepage. If you push either button, it will play the files in the corresponding folder, when this folder is finished, it will turn to loop play the files in folder 00. For example, if you press button "k1", it will play files in folder 01. And if you press button "k1" again during the process of play, it will replay from the first file in folder 01. When it finished playing files in folder 01, it will turn to loop play files in folder 00. If you press button "k2" during the process of playing files in folder 01, it will turn to play files in folder 02. If no button being pressed it will loop play the files in folder 00. The button K5,K6 can be changed to control the volume(vol-/vol+).
Metal frame
Support real 1080P HD decode
Support digital optical out
Support 3.5 mm Earphone out
Support User-define button function
Support multi language OSD
Full function remote control, easy operation
There are two options for the external button: 1. common plastic button. 2. flickering LED button
The above same functions can also be applied to 10"-46" ad players
Our professional R&D team can customize personalized products for you.

Successful Application for your reference(pls contact our salesperson):
Demo button #1:
Press button #1, play video; Press button #1 again during playback, pause the video,

after 20s will go back to homepage files. If button #1 is pressed while paused, playback

will continue.
Demo button #2:
Press button #2, play 1st video; Press button #2 again during playback, goes to next

video #2. If button pushed when playing video #2 go to homepage files.
...

Display	LCD size	10.1″LED screen(16:9)
	Resolution	1280x800
	Luminance	350cd/m²
	Contrast Ratio	500:1
	Viewing Angle	160°(CR›5)
I/O	Integrated Speakers out	StereoL/R, 2W x 2, 8Ω (optional)
	3.5 mm Earphone out	yes
	Digital optical out	yes
	Power(work mode)	< 9W TYP
	PT101 input	12V
	Adaptor	Input: AC 100~240 V 50/60Hz Output: DC 12v 1.5A
Supported Card & Format	Interface	SD(HC)/USB(2.0)
	Photo	JPEG, BMP
	Video	MP4, AVI, DIVX, XVID, VOB, DAT, MPG, MPEG, RM, RMVB, MKV, MOV, HDMOV, M4V, PMP, AVC, FLV, H.264
	Audio	MP3, WMA
Other	Shell Color	Galvanized sheet
	Accessories	Adapter, remote control
	Operating temperature	0°C~ 40°C (32°F~104°F)

Our advantages:
1.High quality, various styles and competitive price.
2.Good service, fast delivery and we are worth being trusted.
3.We can guarantee you will be satisfied with our Supermarket advertising products
4. Professional customizing services available, such as specific firmware, logo printing,startup logo as per you request.
5.OEM is always welcome.
