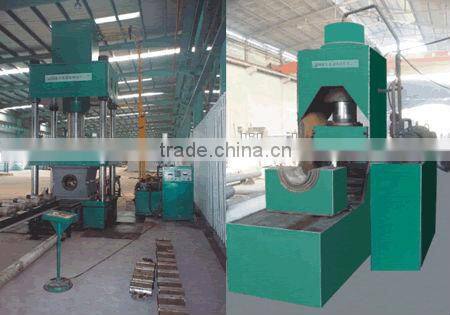

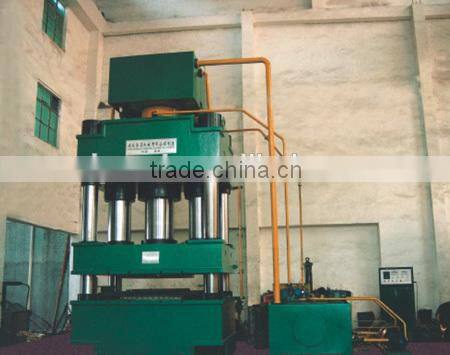

Uni-YK32 Four-column Universal Hydraulic Machine Hydraulic Press10000ton Made in China

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Tianjin
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	Unipand
Model Number	uni-YQ		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1)Stroke and pressure can be adjusted within specified scope
2)Low power consumption, high sealing

YK32 four-column universal hydraulic machine series

Cutting dampening system

Proportional regulation for slide speed

Moving table

Light curtain safety device

Oil heating/ cooling unit

Die protection unit

Displacement sensor

Die exchange cart

Industrial touching screen monitor

Upper ejector (hydraulic or mechanical type)

Floating guide-way and rolling bracket for die exchange

Working area lighting

Power socket

Hydraulic driving system upon upper platform

Quick die clamping device

Imported PLC

Slide upper locking device

Characteristics

1,Computer optimized design 3-beam &4-column compact structure with high performance cost ratio

2,cartridge valve integrated unit equipped in hydraulic control system,with high reliability,durability,oil leakage is avoided by means of proper piping and minimum hydraulic impact design

3,Adopt independent electrical control system with the advantage of reliable working, intuitive action and convenient maintenance .

4,adopt press-button for centralized control with two kinds of operation modes,including adjustment and two-hand single cycle.

5.preset stroke forming process or preset pressure forming process can be selected on control panel;pressure holding period can be preset according to requirements

6.Stroke and pressure can be adjusted within specified scope

Applications

Drawing,bending,flanging,cold extruding ,blanking processes for metal materials; stralghtening,press-in and forming processes for power and abrasive products ,plastic and insulation materials.

project		Company	100	100A	160	200	200A	200C
Nominal force		KN	1000	1000	1600	2000	2000	2000
Knockout force		KN	250		400	400	400	400
Daylight		mm	800	600	1100	1120	1100	1120
Stroke of slide		mm	500	500	700	710	710	710
Knockout cylinder stroke		mm	200		250	250	250	270
Speed of slide	Descent	mm/s	70	>100	>300	120	>90	>=100
	pressing	mm/s	15	15-40	8-12	10	10-6	10-21
	return	mm/s	100	100	220	70	60	120
Talbe area	L-R	mm	600	1200	1300	900	900	900
Talbe area	F-B	mm	600	1000	900	900	900	900
Table height above floor		mm	700	800	250	550	550	620
Overall diamensions	L-R	mm	2370	2800	3300	3200	3000	4300
	F-B	mm	900	1660	1250	900	900	2000
	Height above floor	mm	2770	3360	4070	4085	3875	4325
Total power		KW	11	11	26	15	15	37

project		Company	200G(I)	250	315(A)	315(D)	315(H)	315(M)	400
Nominal force		KN	2000	2500	3150	3150	3150	3150	4000
Knockout force		KN	150/400	630	630	630	1000	630
Daylight		mm	1100	1120	1120	1250	1250	1400	800
Stroke of slide		mm	550	710	800	800	800	800	600
Knockout cylinder stroke		mm	250	250	300	300	300	300
Speed of slide	Descent	mm/s	390	>150	120/100	>120	>100	>250	120
	pressing	mm/s	17-35	6-16	7-12	5-7	5-10	22-10	7.5
	return	mm/s	260	>150	65	40-65	65	240	100
Talbe area	L-R	mm	900	2500	1200/1120	1400	1200	1800	1000
Talbe area	F-B	mm	900	1400	1200/1120	1400	1200	1100	1000
Table height above floor		mm	670	650	700/660	700	700	400	790
Overall diamensions	L-R	mm	3580	5400	3400/3180		4750	3920	3785
	F-B	mm	2045	1500	1200/1120		1200	1400	1000
	Height above floor	mm	4225	4740	4670	4550	4556	4860	4667
Total power		KW	53.5	15	22	22	22	34	37

500D	500	500DI	630	630A	1000	1000A	1000DI	1250	1600	2000(A)	2000D
5000	5000	5000	6300	6300	10000	10000	10000	12500	16000	20000	20000
1000	1000	1000	1000		2000	1000	2000	1000		6300/3150	1000
1500	1500	1500	1500	550	1600	1500	1600	1500	1900	2000/1800	2400
900	900	900	900	200	1000	900	1000	900	1000	1200	1600
