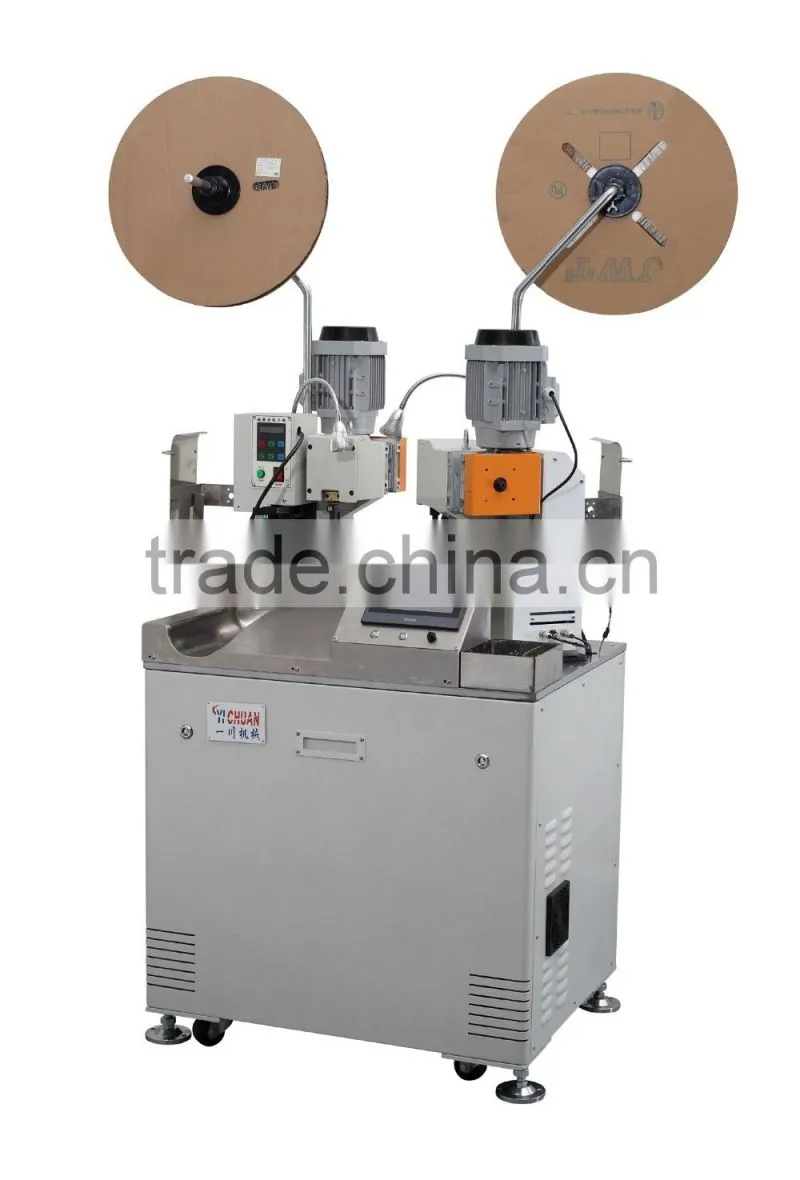

BX-330A Double automatic terminal Machines(Normal)
Device Function
This machine can realize double stripping and terminal. single end terminal or semi-stripping.
Equipment Featurs
1. The machine uses PLC controller with full stepper motor control.
2.The design is simple, compact, and practical.
3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.
4.all other requiremens can be equipped according to customer
Function Parameter
1.Power:AC220V 50/60HZ
2.Power:2500w
3.The pressure focused on:1.5T/can be customized according to customer requirements.
ducction efficiency: 5000pcs(length within 200mm)
5.wire processing length:45mm-9999mm, tangential cut length precision1mm+0.1%*.
6.Stripping Length:0mm-12mm
7.wire specification:wire AWG18-AWG28, other specifications can be customized.
8.the air pressure:4.5-6kgf(need to use clean air)
9. Put Line means:According to customer product line with normal playback devices,other special requirements can be customized.
10. the detection device: Pressure testing, without wires,tie detection.presence or absence of the terminal crimping detection
11. the device size:1000*700*1500mm excluding projecting portions.
12. Weight:260KG
13.take-up device:optional according to customer request.(1.5m-10m)
ure sensor:optional according to customer request.
