Automatic Electric Cable Wire Terminal Crimping Machine

Automatic Electric Cable Wire Terminal Crimping Machine photo-1

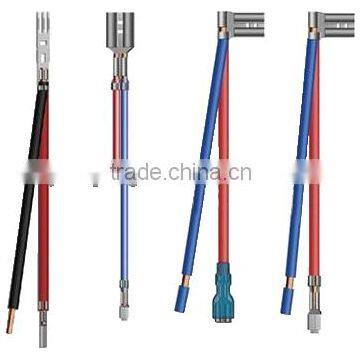

Automatic Electric Cable Wire Terminal Crimping Machine photo-2
Automatic Electric Cable Wire Terminal Crimping Machine photo-3
Automatic Electric Cable Wire Terminal Crimping Machine photo-4
Automatic Electric Cable Wire Terminal Crimping Machine photo-5
Automatic Electric Cable Wire Terminal Crimping Machine photo-6
US$ 8,333 - 13,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YICHUAN
Model Number:
BX-330A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name YICHUAN
Model Number BX-330A
Usage Crimping

automatic electric cable wire terminal crimping machine

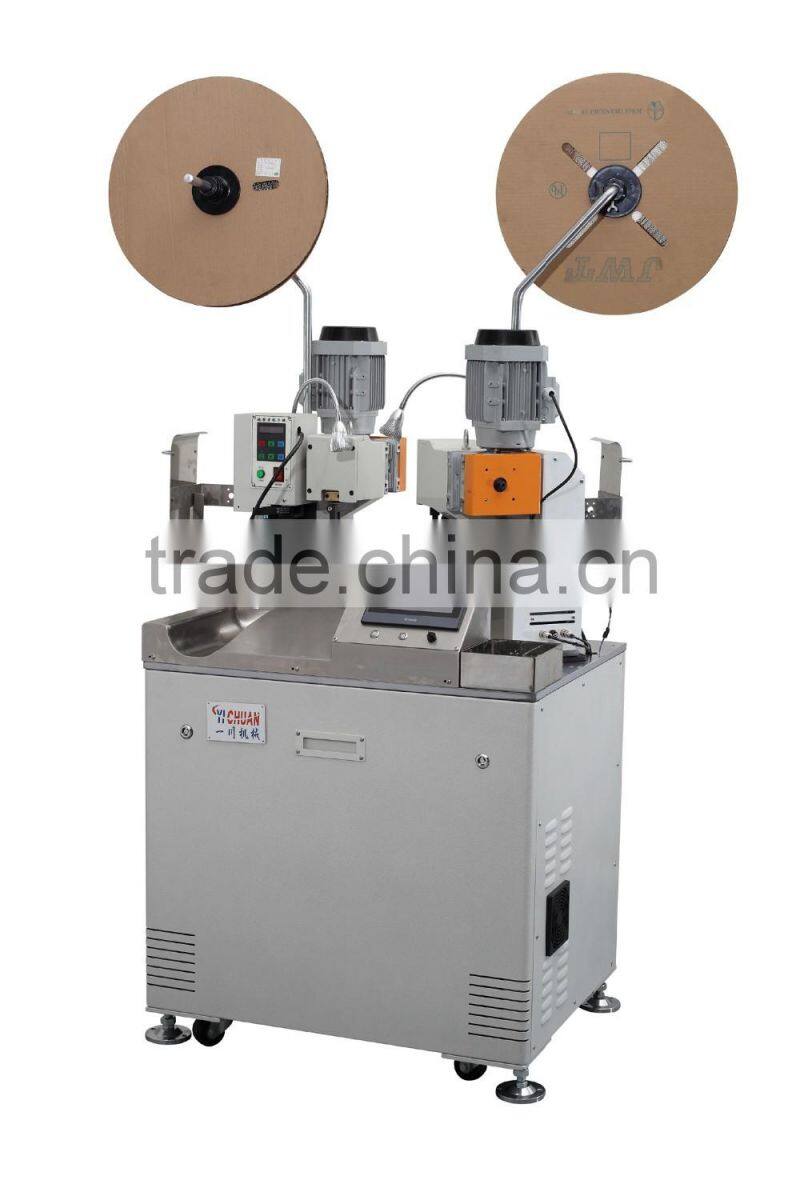

BX-330A Double automatic terminal Machine


Device Function
This machine can realize double stripping and terminal. single end terminal or semi-stripping.


Equipment Featurs
1. The machine uses PLC controller with full stepper motor control.
2.The design is simple, compact, and practical.
3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.
4.all other requiremens can be equipped according to customer

Function Parameter
1.Power:AC220V 50/60HZ
2.Power:2500w
3.The pressure focused on:1.5T/can be customized according to customer requirements.
ducction efficiency: 5000pcs(length within 200mm)
5.wire processing length:45mm-9999mm, tangential cut length precision 1mm+0.1%
6.Stripping Length: 0mm-12mm
7.wire specification:wire AWG18-AWG28, other specifications can be customized.
8.the air pressure:4.5-6kgf(need to use clean air)
9. Put Line means:According to customer product line with normal playback devices,other special requirements can be customized.
10. the detection device: Pressure testing, without wires,tie detection.presence or absence of the terminal crimping detection
11. the device size:1000*700*1500mm excluding projecting portions.
12. Weight:260KG
13.take-up device:optional according to customer request.(1.5m-10m)
ure sensor:optional according to customer request.

automatic electric cable wire terminal crimping machine









automatic electric cable wire terminal crimping machine







automatic electric cable wire terminal crimping machine







automatic electric cable wire terminal crimping machine







automatic electric cable wire terminal crimping machine









automatic electric cable wire terminal crimping machine







automatic electric cable wire terminal crimping machineautomatic electric cable wire terminal crimping machine
