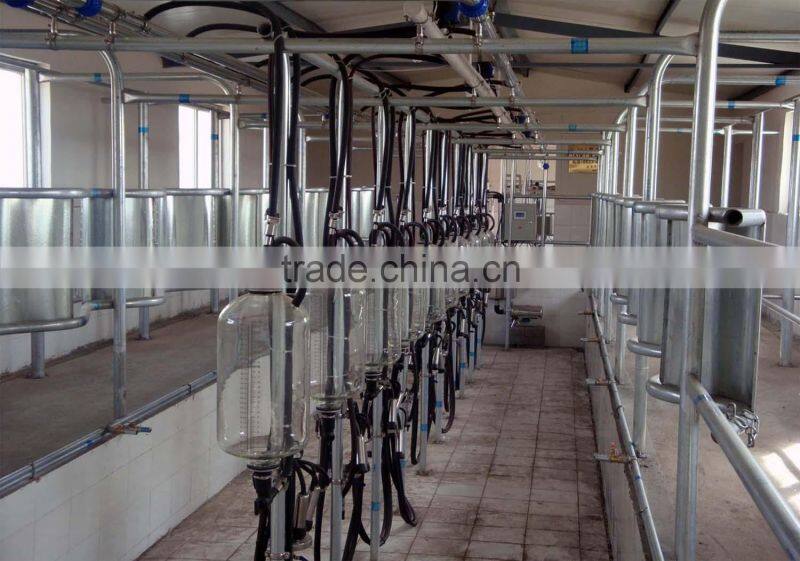

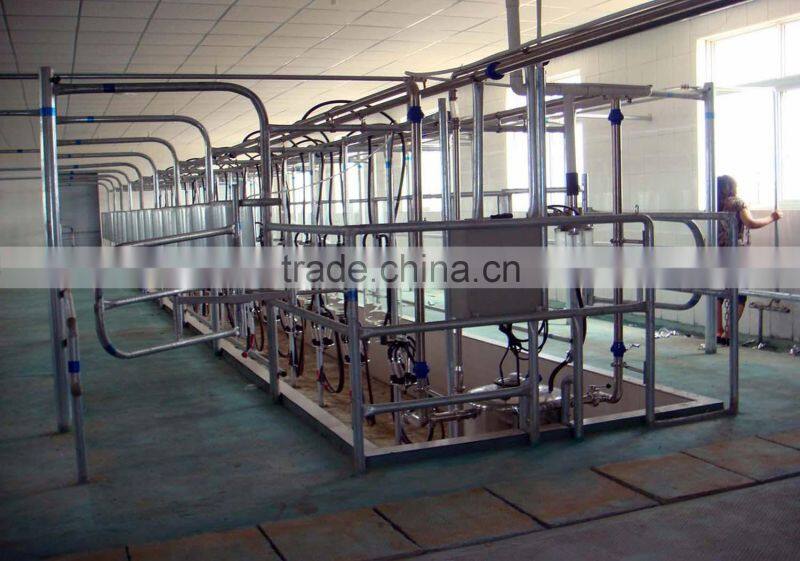

Help CenterMiddle-set Milking Parlor for Big Farm
Related Products
-
Middle-set Type Milking HallUS$ 980 - 1,050MOQ: 1 Set -
Parrel Type Full Automatic Large Milking Parlor PriceUS$ 900 - 1,200MOQ: 8 Sets
-
Mid-set Type Big Milking ParlorUS$ 950 - 1,200MOQ: 8 Sets
-
Mid-set Mode Beauty Huge Milking ParlourUS$ 7,800 - 16,000MOQ: 1 Set
-
Mid-set Milking Parlor for Cow FarmUS$ 1,000 - 1,500MOQ: 6 Sets
Specifications
recycle the residual milkSave water and electricity
benefits from the National Allowance
Suitable for large farm or dairy
Specifications:
This series product can recycle the residual milk which is attached to the main pipeline.
Throughly clean the dirt in the main pipeline especially in hot summer, which can reduce bacterial content and fresh the milk .
Save water and electricity.
To large extent, it reduced the loaded and unloaded trouble of cleaning the inner dirt in main pipeline.
This series goes into <The 2009 -2011 Directory of National Support and Dissemination > <The 2010 Directory of National Allowance for Agricultural Machinery Purchase>, and benefits from the National Allowance.
This series are mainly for adult cows to milking. Suitable for large and medium-sized farm or milk collection station to provide advanced centralized milking equipment.
Technical parameters: | ||||||||
Model |
9JZ-1*12 |
9JZ-1*14 |
9JZ-1*16 |
9JZ-1*18 |
9JZ-2*8 |
9JZ-2*12 |
9JZ-2*16 |
9JZ-2*20 |
Working Vacuum |
50Kpa |
50Kpa |
50Kpa |
50Kpa |
50Kpa |
50Kpa |
50Kpa |
50Kpa |
Pulsation Ratio |
60/40 |
60/40 |
60/40 |
60/40 |
60/40 |
60/40 |
60/40 |
60/40 |
Frequency |
60 ± 3 RPM |
60 ± 3 RPM |
60 ± 3 RPM |
60 ± 3 RPM |
60 ± 3 RPM |
60 ± 3 RPM |
60 ± 3 RPM |
60 ± 3 RPM |
Vacuum pump power |
4 KW |
5.5 KW |
5.5 KW |
5.5 KW |
5.5 KW |
2*4 KW |
2*4 KW |
2*5.5 KW |
Vacuum pump speed |
1400L/min |
2300L/min |
2300L/min |
2300L/min |
2300L/min |
2*1400L/min |
2*1400L/min |
2*2300L/min |
Milk pump speed |
5T/h |
5T/h |
8T/h |
8T/h |
8T/h |
20T/h |
20T/h |
20T/h |
Milk pump power |
1.5KW |
1.5KW |
2.2KW |
2.2KW |
2.2KW |
4KW |
4KW |
4KW |
