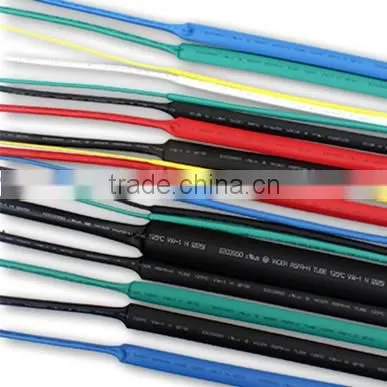

Polyethylene Thin Wall Flexible Heat Shrink Tubing. (2:1)

Polyethylene Thin Wall Flexible Heat Shrink Tubing. (2:1) thumbnail-1
Polyethylene Thin Wall Flexible Heat Shrink Tubing. (2:1) photo-1
US$ 0.1 - 5 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
RU
Model Number:
RU-MT100
Type:
Insulation Sleeving
Contact Supplier Request Quote Chat Now
Realyou Power International Development Co., Ltd. (Dalian)
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RU
Model Number RU-MT100
Type Insulation Sleeving
Material PE
Application High Temperature
Rated Voltage 660V
Tensile Strength 14 MPA

Specifications

halogen-free, flexible, flame retardant heat-shrinkable tubing.

Polyethylene Thin wall flexible heat shrink tubing. (2:1)


Product Description

   RU-MT100  is halogen-free, flexible, flame retardant heat-shrinkable tubing. This tubing is free of Pb,Cd, Hg,Cr+6, PBB and PBDE.CB-HFT can be used in any enclosed area where a flame-retardant, halogen-free environment is required, such as Metro, skyscraper, mass transit vehicles and ships. The product is UL recognized at 600V and the file No is E180908. All are F mark



Size As Supplied (mm) After Recovery (mm)
Inside Diameter Wall-thickness Inside Diameter Wall-thickness
φ0.8 1.3±0.2 0.15±0.05 ≤0.45 0.28±0.05
φ1.0 1.5±0.2 0.18±0.05 ≤0.6 0.30±0.05
φ1.5 2.0±0.2 0.18±0.05 ≤0.8 0.32±0.05
φ2.0 2.5±0.2 0.18±0.05 ≤1.00 0.35±0.05
φ2.5 3.0±0.2 0.20±0.05 ≤1.25 0.38±0.05
φ3.0 3.5±0.3 0.20±0.05 ≤1.5 0.38±0.05
φ3.5 4.0±0.3 0.20±0.05 ≤1.75 0.38±0.05
φ4.0 4.5±0.3 0.23±0.05 ≤2.0 0.45±0.05
φ4.5 4.8±0.3 0.23±0.05 ≤2.25 0.45±0.05
φ5.0 5.5±0.3 0.23±0.05 ≤2.5 0.45±0.05
φ6.0 6.5±0.4 0.25±0.05 ≤3.0 0.50±0.05
φ6.5 7.0±0.4 0.25±0.05 ≤3.0 0.52±0.05
φ7.0 7.5±0.4 0.30±0.08 ≤3.5 0.60±0.05
φ8.0 8.5±0.3 0.30±0.08 ≤4.0 0.60±0.08
φ9.0 9.5±0.4 0.30±0.08 ≤4.5 0.60±0.08
φ10 10.5±0.5 0.30±0.08 ≤5.0 0.60±0.08
φ11 11.5±0.5 0.30±0.08 ≤5.5 0.60±0.08
φ12 12.5±0.5 0.30±0.08 ≤6.0 0.60±0.08
φ13 13.5±0.5 0.36±0.12 ≤6.5 0.65±0.12
φ14 14.5±0.5 0.36±0.12 ≤7.0 0.65±0.12
φ15 15.5±0.5 0.36±0.12 ≤7.5 0.65±0.12
φ16 16.5±0.5 0.36±0.12 ≤8.0 0.70±0.12
φ17 17.5±0.5 0.36±0.12 ≤8.5 0.70±0.12
φ18 18.7±0.5 0.40±0.15 ≤9.0 0.75±0.12
φ20 20.6±0.6 0.40±0.15 ≤10.0 0.80±0.12
φ22 22.7±0.6 0.40±0.15 ≤11.0 0.80±0.12
φ25 25.5±0.7 0.45±0.15 ≤12.5 0.90±0.12
φ28 29.2±0.7 045±0.15 ≤14.0 0.90±0.12
φ30 31.0±0.7 0.45±0.15 ≤15.0 0.90±0.12
φ35 ≥35 0.50±0.15 ≤19 1.00±0.30
φ40 ≥40 0.50±0.15 ≤21 1.00±0.30
φ50 ≥50 0.50±0.15 ≤27 1.00±0.30
φ55 ≥55 0.50±0.15 ≤28 1.00±0.30
φ60 ≥60 0.50±0.15 ≤31 1.00±0.30
φ70 ≥70 0.70±0.30 ≤35.0 1.45±0.25
φ80 ≥80 0.70±0.30 ≤40.0 1.45±0.25
φ90 ≥90 0.70±0.30 ≤45.0 1.45±0.25
φ100 ≥100 0.70±0.30 ≤50.0 1.45±0.25
Item Specifications
Shrink Temperature(°C) USD 90.00
Temperature Range(°C) USD 125.00
Radial Shrinking Ratio(%) ≥50
Longitudinal Change(%) ≤5
Tensile Strength(MPa) ≥10.4
Ultimate Elongation (%) ≥200
Aging in Circulating-air Oven 158.0±1.0°C, 168hrs
After aging Tensile Strength(MPa) ≥7.3
Ultimate Elongation(%) ≥100
Volume Resistivity(Ω.cm) ≥1014
Dielectric Strength(KV/mm) ≥15
Flammability VW-1
Concentricity(%) ≥65
