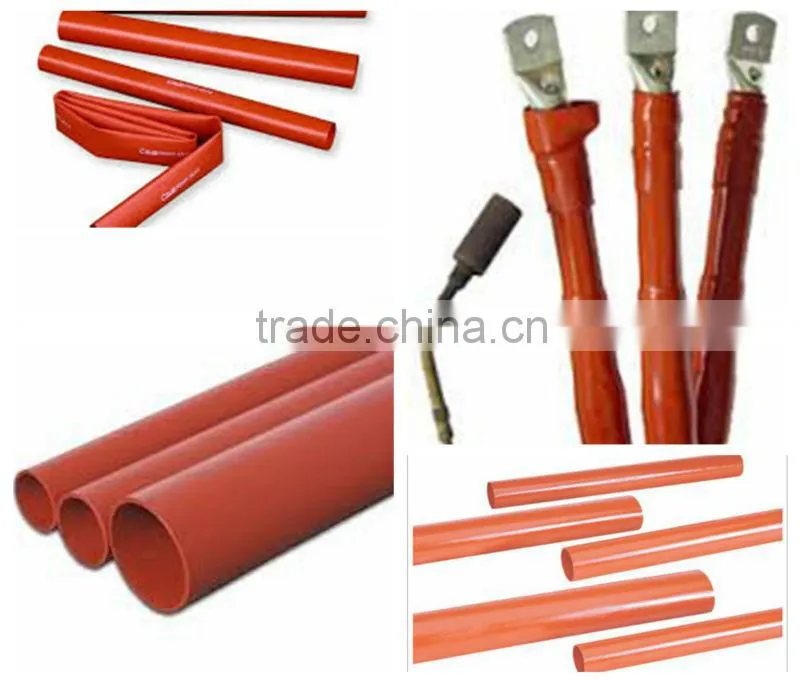

Polyethylene Heat Shrinkable High Insulation Tubing Non-tracking Tube for Cable Termination and Joint
US$ 0.5 - 10
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
RU
Model Number:
RU-MT200
Type:
Insulation Sleeving
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PE Heat-Shrinkable Stress Control Tube for Cable Joint XLPE CableUS$ 2 - 10MOQ: 1000 Meters -
10 ~ 35kV Cold Shrink Cable JointUS$ 15 - 350MOQ: 50 Sets
-
LDPE PE Heat Shrinkable Straight Through 3-core Cable Joint up to 36kv for XLPE CableUS$ 5 - 200MOQ: 50 Sets
-
Poly PE Heat Shrinkable Indoor Termination up to 36kv for XLPE/PILC CableUS$ 5 - 200MOQ: 50 Sets
-
Heat-shrinkable Wraparound Sleeves for Cable RepairUS$ 20 - 50MOQ: 100 Sets
Brand Name
RU
Model Number
RU-MT200
Type
Insulation Sleeving
Material
PE
Application
High Voltage
Rated Voltage
UP to 36kv
Specifications
Features:High Insulation Tubing
Excellent insulation properties
Extra heavy wall.
Up to 36kV.
Product Description
Applications:

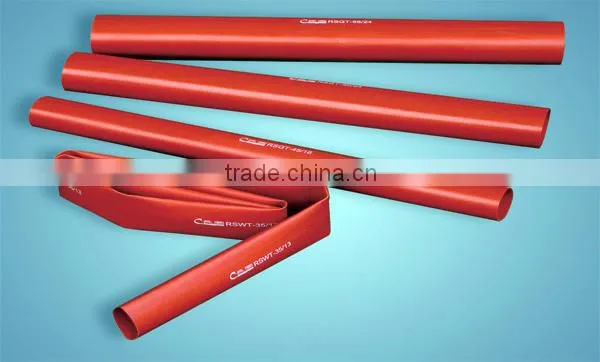

HGT is made from radiation cross-linked polyolefin, Designed for applications to seal and protect power cable joints from 11kV to 36kV.
Features:
High Insulation Tubing
Excellent insulation properties
Extra heavy wall.
Up to 36kV.
| Performancc of peroduct | ||
| Property | Test Method | Typical Data |
| Physical | ||
| Hardness | ASTM D 2240 | 50D |
| Tensile strength | ASTM D 2671 | ≥13MPa |
| Elongation at breek | ASTM D 2671 | ≥500% |
| Chemical | ||
| Tensile strength after aging | ASTM D 2671 120°C,168hrs | ≥11MPa |
| Elongation at breek after aging | ASTM D 2671 120°C,168hrs | ≥450% |
| Copper corrosion | ASTM D 2671 | 125°C,168hrs,no corrosion |
| Cold bend | ASTM D 2671 | -40°C,4hrs,no corrosion |
| Electrical | ||
| Dielectric strength | IEC 243 | ≥20KV/mm |
| Dielectric constant | IEC 250 | 3.0(max) |
| Volume resistance | ASTM D 2303 | 1014Ω.cm(min.) |
| Dimensions: | |||||
| Cat No. | Size | As | After Recovery | Standard | |
| Supplied | (mm) | length(m) | |||
| (mm) | (mm) | ||||
| D* (Min.) | d*(Max.) | w*(Min.) | |||
| 1 | HGT 35/12 | 35 | 12 | 3.2 | 1.0-1.5 |
| 2 | HGT 45/14 | 45 | 14 | 3.5 | 1.0-1.5 |
| 3 | HGT 52/15 | 52 | 15 | 3.9 | 1.0-1.5 |
| 4 | HGT 55/18 | 55 | 18 | 3.9 | 1.0-1.5 |
| 5 | HGT 62/18 | 62 | 18 | 3.9 | 1.0-1.5 |
| 6 | HGT 66/18 | 66 | 18 | 3.9 | 1.0-1.5 |
| 7 | HGT 66/20 | 66 | 20 | 4.4 | 1.0-1.5 |
| 8 | HGT 75/25 | 75 | 25 | 4.7 | 1.0-1.5 |
| 9 | HGT 85/25 | 85 | 25 | 4.7 | 1.0-1.5 |
| 10 | HGT 95/30 | 95 | 30 | 4.7 | 1.0-1.5 |
| 11 | HGT 105/40 | 105 | 40 | 4.7 | 1.0-1.5 |
| HGT120/45 | 120 | 45 | 4.7 | 1.0-1.5 | |
