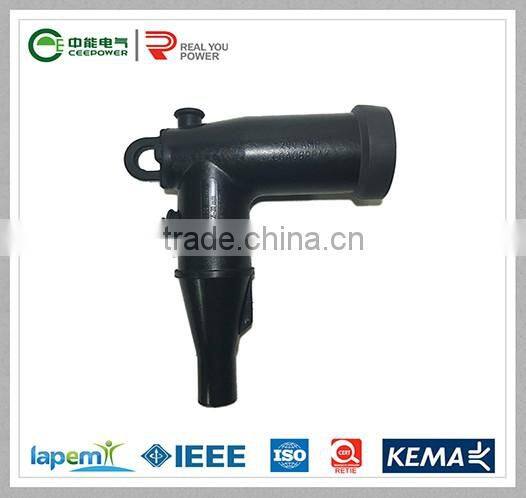

Loadbreak Elbow Connector 35kV 200A

Realyou Power International Development Co., Ltd. (Dalian)
Loadbreak Elbow Connector 35kV 200A thumbnail-1
Loadbreak Elbow Connector 35kV 200A thumbnail-2
Loadbreak Elbow Connector 35kV 200A photo-1

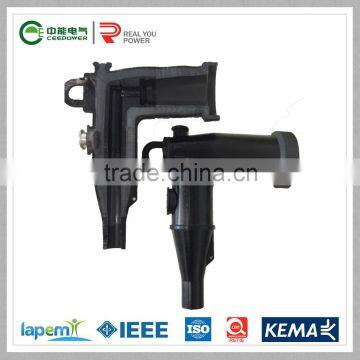

Loadbreak Elbow Connector 35kV 200A photo-2
US$ 50 - 60 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
CEE Power
Model Number:
CEE ZT-35kV/200A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name CEE Power
Model Number CEE ZT-35kV/200A
Product Introduction

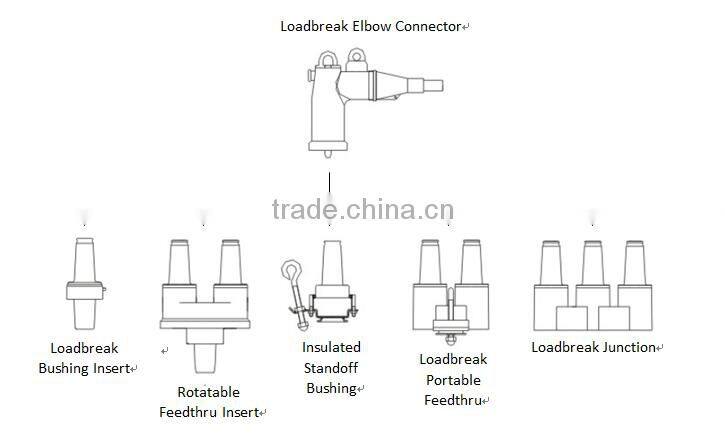

The CEE ZT-35/200 Loadbreak Elbow Connector is a fully-shielded and insulated plug-in termination, connects underground cable with transformers, switchgears, loadbreak juctions equipped with loadbreak bushings.

It is in accordance with ANSI/IEEE 386-2006, its electrical, mechanical and dimension are all designed to be fully interchangeable with many major manufacturers which complying with IEEE 386 and IEC 60502-4.

Specifications
Voltage Rating
35kV
Standard Voltage Class
35
Max. Rating Phase-to-Phase
36.6
Max. Rating Phase-to-Ground
21.1
AC 60/50 Hz 1Min Withstand
50
DC 15 Min Withstand
103
BIL and Full Wave Crest
150
Minimum Partial Discharge
26
Current Rating
35kV
Continuous
200A
Switching
10 Operations at 200A, 36.6kV
Fault Closure
10kA
Short Time
10kA rms sym. for 0.17s (60 Hz)/0.2s (50Hz)
3.5kA rms sym. for 3.0s
Product Details Show

Kit Contents:

1
Loadbreak Elbow Connector
1
Cable Lug
1
Test Point Cap
1
Grounding Wire Kits
1
Probe
Why Choose Us

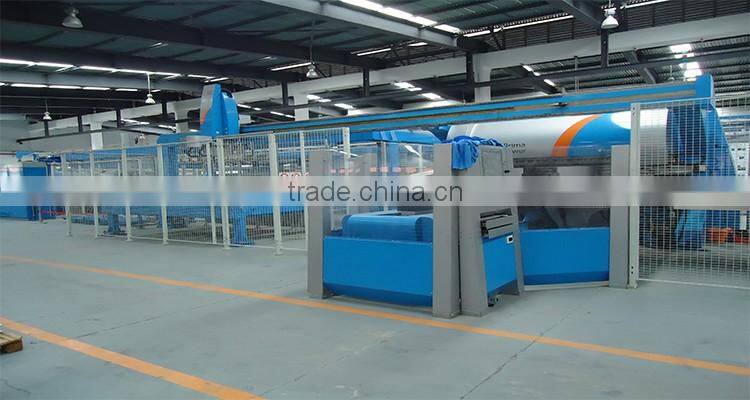

Product Processing

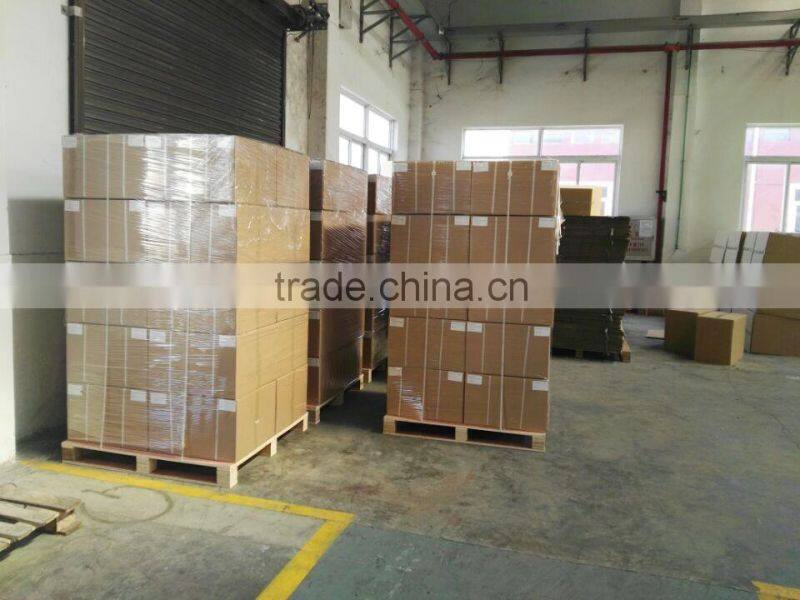

Product Packing
