Programable Constant Temperature Humidity Chamber

Name: Programable Constant Temperature Humidity Chamber
Brand: Gient
SKU: 134939555
Availability: InStock

Programable Constant Temperature Humidity Chamber thumbnail-1

Programable Constant Temperature Humidity Chamber photo-1

US$ 5,000 - 9,500 MOQ: 5 Sets

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Gient

Model Number:

JJ-2100

Contact Supplier Request Quote Chat Now

Beijing Eversun Sci-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Gient

Model Number JJ-2100

Power Electronic

Usage Other, Temperature humidity test chamber

Specifications

accurately simulate such environments as temperature,humidity;
LED display;
liquid crystal display;
memory function.etc.

FEATURES:

1.Good appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.

2.Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.

3.Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.

4.With an external water supply system can be easy to supply water and automatically reuse.

5.Compressor circulatory system from French " Tecumseh ", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).

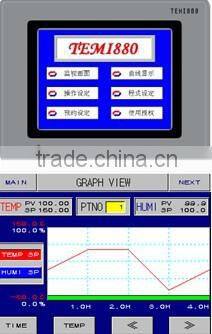

6.Controller imported LCD display screen can be displayed measuring values and setting the value and time.

7.Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).

8.Built-in mobile pulley easy to move and has a strong positioning screw fixed position

executive standard:GB10589-89 high and low temperature test chamber technical standard ;
GB10586-93 thermal-humidity test chamber technical standard
criteria meeted:GB2423.1-89 low temperature test method

GB2423.2-89 high temperature test method GB2423-93 test D6 alternating hot and humid test method
IEC68-2-30 test methodD6

model number		JJ-2100	JJ-2150		JJ-2225		JJ-2408	JJ-2800		JJ-1000L
parameter
	Temp. range	-20°C~+130°C(150°C) -40°C~+130°C(150°C) -60°C~130°C(150°C)
	Humidity Range	30%-98%R·H
	Temp. uniformity	±1.5°C
	Temp. fluctuation	±0.5°C
	Humidity uniformity	±3%R·H
	Humidity fluctuation	±2%R·H
	Heat rate	-20°C~+130°C/70min -40°C~+130°C /80min -60°C~130°C/80min
	Cooling rate	+20°C~-20°C/40min +20°C~-40°C/60min +20°C~-60°C /70min
Inside Capacity(L)		100		150	225	408		800	1000
Interior Dimension(mm)		400×500×500		500×600×500	500×600×750	600×800×850		800×1000×1000	1000×1000×1000
Weight(kg)		200		250	300	400		600	700
Material	liner material	High-quality SUS304 stainless steel plate
	shell material	High-quality SUS304 stainless steel plate
	insulation material	Ultra-fine glass fiber insulation cotton / rigid polyurethane foam Ultra-fine glass fiber insulation cotton / rigid polyurethane foam
regulator	refrigerating method	Mechanical single stage refrigeration method Mechanical binary refrigeration method
	refrigerator	totally enclosed (import) compressor
	refrigerant	R22 R404A R502
	condensaton method	air cooling or water cooling
	heater	Nickel-chromium alloy strip heater
	humidifier	Forced air circulation (evaporative) surface
	blower	Centrifugal fan
	gas flow mode	Broadband type forced air circulation ( upper-lower path )
water supply	water supply mode	circulating water supply
	water supply tank	built-in and portable(capacity:30kg)
	water quality	electrical resistivity>500 Ω ·M
standard configuration		inspection window:1;test hole 60mm(on the left):1;speciment hoder:2;fluorescent lamp:1; water supply tank:1;wet bulb with meteorological belt:1;caster:4;power line:1.
safety device		leakage protector,dry heating protector,water system protectoe,extreme high and low temprature protector,temperature differential alarming,and protector against overpressure,overload,water shortage,phase lackage.
