Help CenterGabion Machine
US$ 1 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
tuohua
Model Number:
THJQMACHINE-001
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang and so on
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Punching MachineUS$ 20,000 - 80,000MOQ: 1 Set -
Common Nail MachineUS$ 500 - 5,000MOQ: 1 Set
-
Galvanized Chain Link Fence MachineUS$ 20,000 - 70,000MOQ: 1 Set
-
Manual Operated Chain Link Fence Machine MakingUS$ 20,000 - 70,000MOQ: 1 Set
-
Used Chain Link Fence MachineUS$ 20,000 - 70,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
tuohua
Model Number
THJQMACHINE-001
Specifications

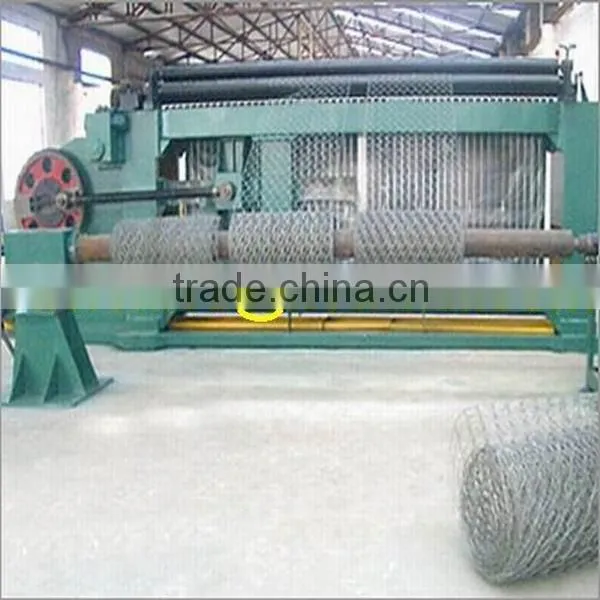

Gabion Machine for making of hexagonal wire netting.It's can continuously work, Smooth running, low noise, automatically stop.Gabion Machine
Gabion Machine actually refers to the machine for making of hexagonal wire netting.
The maximum wire diameter applied for production: 3mm
Roll length of wire netting: 1200mm
Numbers of spiral shaft: 4PCS
JS-Ga Gabion machine is specially used to produce the large size and heavy duty hexagonal (PVC & Galv. Plated) wire meshes for the fence and the stone gabions usage. It has nine models for three size of meshes and the maximum netting width is up to four meters. This series hexagonal wire netting machines have the properties of high efficiency in producing and easy operation and maintenance. We can also supply the complete set of equipment for your whole netting workshop.
JS-Gb Gabion machine is designed to produce hexagonal meshes with galvanized low carbon steel wires, suitable for structural, heat insulation, protective, and fencing applications. The machines of this series are of horizontal design, ensuring smooth running and high productivity.
Specification:
Specification:
| Mesh Opening (mm) |
Maximun Width (mm) |
Maximum Wire Diameter (mm) | PVC wire Diameter (mm) |
Theoretic output (m/hr) |
Overall size L x W x H(mm) |
Total Weight (T) |
Motor Power (kw) |
| 50 x 70 | 4300 | 3 | 4 | 150 | 7200x1400x2400 | 15 | 22 |
| 60 x 80 | 4300 | 3 | 4.1 | 165 | 15 | 22 | |
| 80 x 100 | 4300 | 3.2 | 4.3 | 195 | 15 | 22 | |
| 100 x 120 | 4300 | 4 | 5 | 225 | 15 | 22 | |
| 50x70and100x140 | 4300 | 3 and 4 | 4and 5 | 150and255 | 15 | 22 | |
| 60x80and 120x150 | 4300 | 3 and 4 | 4.1 and 5.1 | 165 and216 | 16 | 22 | |
| 80x100and160x180 | 4300 | 3.2 and 4 | 4.3 and 5 | 195 and390 | 16 | 22 | |
| 80x100and 80x120 | 4300 | 3.2 | 4.3 | 195 and220 | 16 | 22 | |
| 100x120and100x140 | 4300 | 4 | 5 | 225 and255 | 16 | 22 | |
| 120 x 150 | 4300 | 4 | 5 | 216 | 15 | 22 | |
| 180 x 200 | 4300 | 4 | 5 | 500 | 14 | 22 |
