Automatic Trolley Type Vertical Stainless Steel Noodles Machine Manufacturer PriceUS$ 100 - 200MOQ: 1 Unit

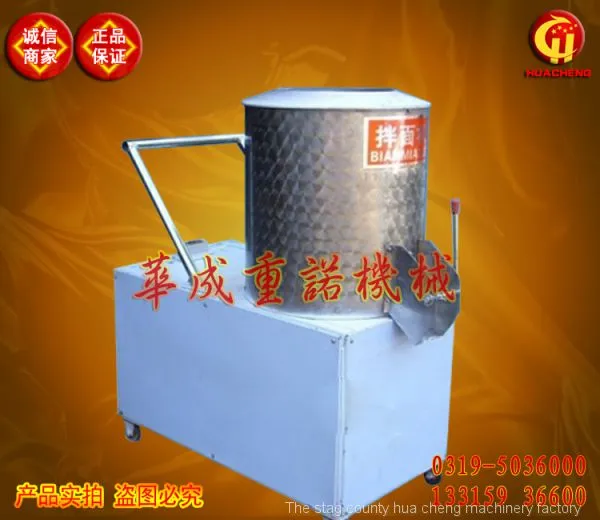

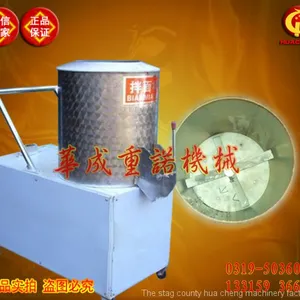

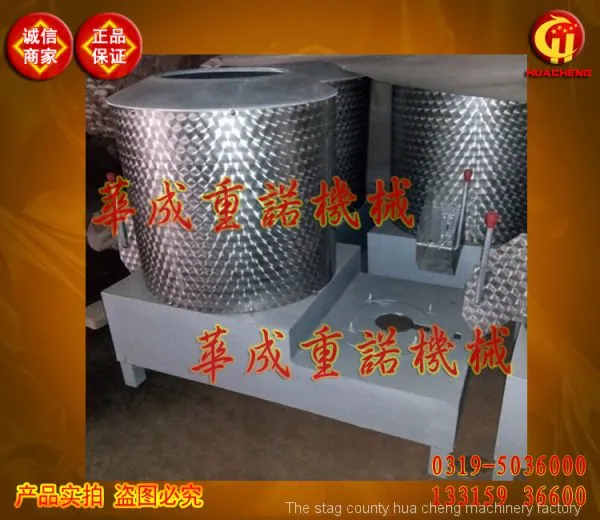

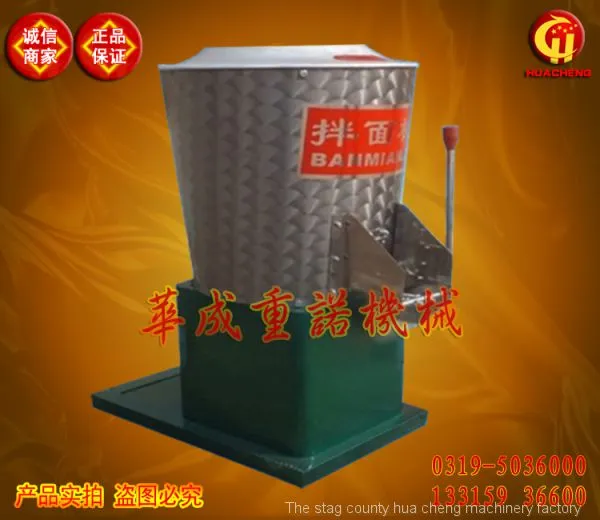

BMJ-15 type noodles machine parameters:
Power 2.2kw can be equipped with small surface pressure machine, lever outlet, easy to operate
Yield 10-15kg/ times
Weight 72 kg
Size 550*500*850
BMJ-25 type noodles machine parameters
Power 3kw face barrel material stainless steel
Yield 25kg/ times
Weight 130kg
Size 790*480*1150mm
BMJ-50 type noodles machine parameters
Matching power 7.5kw surface barrel material stainless steel
Production capacity 50kg/ times
Weight 280 kg
Outline dimension 1050*500*900mm
Noodles machine:
Noodles machine is all kinds of noodle machine, noodle machine, also can be applied to a variety of pasta and other surface and other powdery objects or powder colloid stirring equipment, mixing with other materials can also be! Its role is to mix flour and water allocation.
Noodles machine features:
The utility model has the advantages of high efficiency, uniform mixing, improvement of the production efficiency of noodle equipment, and improvement of noodle quality, and can also be used for stirring raw powder materials and a small amount of liquid raw materials in food and pharmacy industries. Such as: Pastry stuffing or dry powder, etc..
Installation and commissioning
1, four machine should be placed flat, reduce vibration; connect the ground on the bottom of the frame, to prevent leakage of danger.
2, check the fasteners are loose, check the power cord switch is intact, gear with appropriate amount of lubricating oil.
3, the oil hole or an oil cup plus the amount of lubricating oil and insist on 2-3 times per year, the operation should be smooth, no abnormal sound.
4, connect the power blender turn back, empty running fasteners 30 minutes later, and then work.
Usage method：
First pour the flour into the barrel, after starting the motor, adding water (making noodles flour and water ratio is 4:1) when meet the requirements, you can open the gate, the flour will be pushed out of leaf wing.
Matters needing attention：
1 use the machine before the power supply, test run, check the machine parts are normal.
2 the direction of rotation of the stirring wings should be consistent with the direction indicated by the arrow;
3 every year on the mixing spindle on the two bearing a butter, check the sealing effect of oil seal, found damaged timely replacement. Mixing should not be hand into the cylinder, the cabinet must be ground.
Disassembly sequence of machine:
Remove the lid "removed" removed the stirring wing chassis and barrel can be "plugged in.
Cleaning and maintenance:
1 in use frequently check each component fasteners, if loose timely fastening;
2 the machine gear meshing zone lubricated by grease, oil once every half month, the bearing in powder metallurgy bearing, each class must to the bearing seat oiling cup two times, otherwise the consequences and the axle bush scuffing;
3 when the amount of flour noodles should not exceed the surface of the barrel so as not to burn the motor capacity;
4 if found dough oil, should be timely maintenance, replacement of oil seal, the machine for drip type appliances, prohibit the use of water spray tube cleaning.
5 after the use of the machine should be cleaned in time, so as not to affect the use of;
The lowest height should not exceed 6 barrels of water in the shaft surface cleaning, to prevent the life of shaft hole overflow water from the side surface or into the side in the interlayer barrel.
Safety technical regulations:
1 before driving check electrical parts are insulation good, motor grounding is reliable. No wet hand press switch button. Please electrician handle problems, according to the provisions of the machine and the surface is put into dry flour, not overload transfer.
2 according to the maintenance requirements of the machine regularly refueling, and in the face, should cover the lid. Do not hand or other hard objects into the face of the bucket, so as to avoid dangerous accidents.
3 must be cut off the surface, mixing after the shell fell again after a time, do not want to use a knife to cut the net, go to the car, no one to take another car surface.
The 4 is the operation must not touch the rotating parts, found sound, loose, debris, vibration is not normal, should stop for inspection and maintenance.
