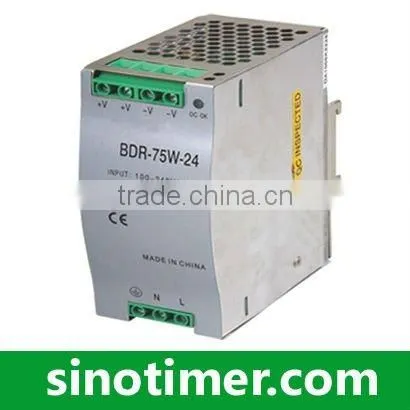

75W DIN RAIL Power Supply
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
X&Y
Model Number:
BDR-75W
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
X&Y
Model Number
BDR-75W
Output Power
101 - 200W
Output Type
Single
Input Voltage
Other, Universal AC input: 90-264VAC
Output Voltage
12v
Specifications
Din rail LED power supply 75WMini size:65.5*125.2*100mm
Universal AC input: 96V~264V
CE approved, 2 years
120w din rail power supply
| Specification | BDR-120-12 | BDR-120-15 | BDR-120-24 | BDR-120-48 |
| DC output | 12V 10A | 15V 8A | 24V 5A | 48V 2.5A |
| Wave and noise | 75mVp-p | 75mVp-p | 75mVp-p | 75mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 80% | 81% | 84% | 85% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 90-132VAC/176-264VAC 47-63Hz |
| AC Inrush current | Cold-start current 15A/115V 30A/230 |
| OverLoad protection | 105%-150% constant current limiting |
| Over-Voltage protection | 120%-140% rated output voltage |
| Setup,rise,hold up time | 500ms,70ms,36ms at full load and 230VAC |
| Withstand voltage | I/P-O/P:3KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute |
| Isolation resistanc | I/P-O/P IP/FG OP-FG:500VDC/100M |
| Working temperature | -10ºC—+50ºC |
| Safety Standards | Design refer to GB4943,UL60950,EN60950 |
| EMC Standards | Design refer to GB9254,EN55022 Class B |
| Weight | 0.79Kg |
