Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 25W DIN RAIL Power Supply
25W DIN RAIL Power Supply
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
X&Y
Model Number:
BRS-25W
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
X&Y
Model Number
BRS-25W
Output Power
1 - 50W
Output Type
Single
Input Voltage
Other, Universal AC input: 90-264VAC
Output Voltage
12v
Specifications
25W din rail power supply30,45,60,75,120,240W also
Mini size:110*78*35mm
Universal AC input: 96V~264V
CE approved, 2 years

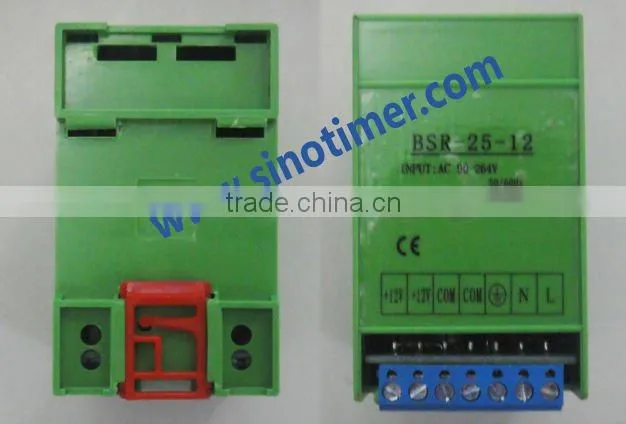

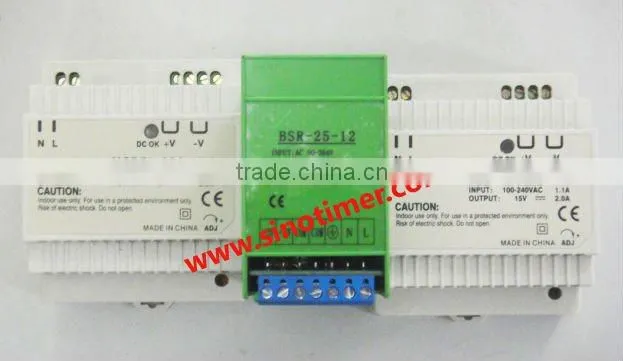

25W DIN RAIL power supply
| specification | BSR-25-12 | BSR-25-15 | BSR-25-24 | BSR-25-48 |
| DC output | 12V 2A | 15V 1.7A | 24V 1A | 48V 0.5A |
| Wave and noise | 75mVp-p | 75mVp-p | 75mVp-p | 75mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 76% | 77% | 80% | 82% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 85-264VAC 47-63Hz 120-370VDC |
| AC Inrush current | Cold-start current 15A/115V 30A/230 |
| OverLoad protection | 105%-150% hiccup mode,auto-recovery |
| Over-Voltage protection | 115%-135% rated output voltage |
| Setup,rise,hold up time | 300ms,50ms,80ms/230VAC |
| Withstand voltage | I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute |
| Isolation resistanc | I/P-O/P IP/FG OP-FG:500VDC/100M |
| Working temperature | -10ºC—+50ºC |
| Safety Standards | Design refer to GB4943,UL60950,EN60950 |
| EMC Standards | Design refer to GB9254,EN55022 Class B |
| Weight | 0.20Kg |
30,45,60,75,120,240W DIN rail power supply
