Help Center120W Quad Output Power Supply
Related Products
Specifications
120W Quad Output power supply100%full load burn-in test
2 years warranty

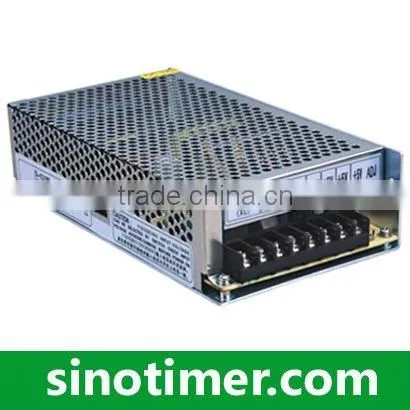

120W Quad Output power supply
100% full load burn-in test
AC input: 110/220VAC± 20%, selectable by switch
Protections: Short circuit/Overload
Low cost, high reliability
Size: 199*110*50mm
1 year warranty
Model |
Q-120B |
Q-120C |
Q-120D |
|||||||||
Specification |
CH1 |
CH2 |
CH3 |
CH4 |
CH1 |
CH2 |
CH3 |
CH4 |
CH1 |
CH2 |
CH3 |
CH4 |
Specification |
5V 6A |
12V 3A |
-5V 0.5A |
-12V 1A |
5V 5A |
12V 2.8A |
-12V 0.5A |
-15V 1A |
5V 8A |
12V 2A |
24V 2A |
-12V 1A |
Wave and noise |
80mV |
120mV |
80mV |
120mV |
80mV |
150mV |
80mV |
150mV |
80mV |
120mV |
180mV |
120mV |
Inlet stability |
± 0.5% |
± 1% |
± 1% |
± 1% |
± 0.5% |
± 1% |
± 1% |
± 1% |
± 0.5% |
± 1% |
± 1% |
± 1% |
Load stability |
± 0.5% |
± 5% |
± 5% |
± 5% |
± 0.5% |
± 6% |
± 5% |
± 5% |
± 0.5% |
± 5% |
± 5% |
± 5% |
Efficiency |
77% |
76% |
80% |
|||||||||
Adjustable range for DC voltage |
CH1: +10, -5% |
CH1: +10, -5% |
CH1: +10, -5% |
|||||||||
AC input voltage range |
85-264VAC? 47-63Hz; 120-370VDC |
|||||||||||
AC input voltage range |
Cold-start current 30 A/115V 60A/230V |
|||||||||||
OverLoad protection |
105%-150% hiccup mode, auto-recovery |
|||||||||||
OverLoad protection |
CH1.5.75-6.75V |
|||||||||||
Setup, rise, hold up time |
800ms, 50ms, 10ms/115VAC? 300ms, 50ms, 80ms/230VAC |
|||||||||||
Withstand voltage |
I/P-O/P: 3KvAC I/P-FG: 1.5KvAC O/P-FG: 0.5KvAC 1minute |
|||||||||||
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ |
|||||||||||
Working temperature |
-10— +/-50 |
|||||||||||
Safety standards |
Design refer to GB4943, UL60950, EN60950 |
|||||||||||
EMC standards |
Design refer to GB9254, EN55022 class A |
|||||||||||
Weight |
0.88kg |
|||||||||||
