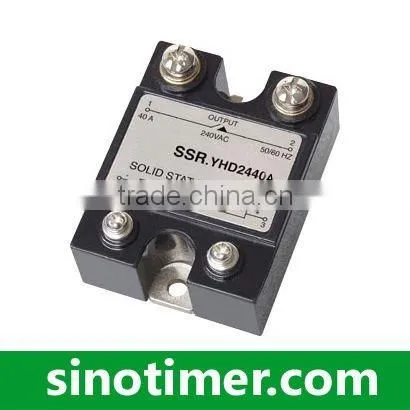

40A SSR

Name: 40A SSR
Brand: Neutral
SKU: 134922989

US$ 2.5 - 4.8 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Neutral

Model Number:

40A

Yueqing Xinyang Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Neutral

Model Number 40A

Theory Solid State Relay

Usage Protective

Size Miniature

Protect Feature Sealed

Contact Load Low Power

Specifications

40A SSR , Solid State Relay
Input:3-32vdc
Output:240V,480V,660V,1200VAC
Current:10A,15A,20A,25A,30A,40A,50A,60A,75A,80A,100A

Solid State Relay, SSR

10-120A, SSR-YH DA (DC-AC)

Model Name:

Model	YHD2410A YHD4810A YHD6610A YHD12010A YHD2415A YHD4815A YHD6615A YHD12015A YHD2420A YHD4820A YHD6620A YHD12020A YHD2425A YHD4825A YHD6625A YHD12025A YHD2430A YHD4830A YHD6630A YHD12030A YHD2440A YHD4840A YHD6640A YHD12040A YHD2450A YHD4850A YHD6650A YHD12050A YHD2460A YHD4860A YHD6660A YHD12060A YHD2480A YHD4880A YHD6680A YHD12080A YHD24100A YHD48100A YHD66100A YHD120100A YHD24120A YHD48120A YHD66120A YHD120120A
Control Mode	DC-AC
Load Current	10A,15A,20A,25A,30A,40A,50A,60A,75A,80A,100A,120A
Load Voltage	240VAC ,480VAC,660VAC,1200VAC
Control Voltage	3-32VDC
Control Current	DC:3-25mA
Off Leakage Current	≤2mA
On Voltage	≤1.5VAC
On-off Time	≤10mS
Dielectric Strength	2500VAC
Insulation Resistance	500MΩ/500VDC
Ambient Temperature	-30°C - +75°C
Mounting Methods	Bolting
The working instructions	LED
Weight	90g(10A,15A), 135g(above 40A)
