2016 API 5L LSAW PIPE
Introduction of Company
Introduction of Product
Process: LSAW - UO(UOE),RB(RBE),JCO(JCOE,COE)
DSAW -Double Submerged arc welded
Usage: Used for low pressure liquid delivery, such as water, gas, and oil.
Standard: API 5L, API 5CT, ASTM A53, ASTM A252, EN10217, DIN 2458, IS 3589, SY/T5037, GB/T3091, GB/T9711
Certificate: API 5L PSL1 / PSL2, API 5CT, ISO, CE
Outer Diameter: 219mm – 1820mm (8"-72")
Wall Thickness: 5.0 - 50mm
Length: 6 – 12m
Steel Grade: API 5L GR.B, X42, X46, X52, X56, X60, X65, X70
ASTM A53 GRADE A, GRADE B
EN10217: S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33, St37, St44, ST5
GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Surface: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate: EN 10204/3.1B
Any further information, please access emilywang073(at)

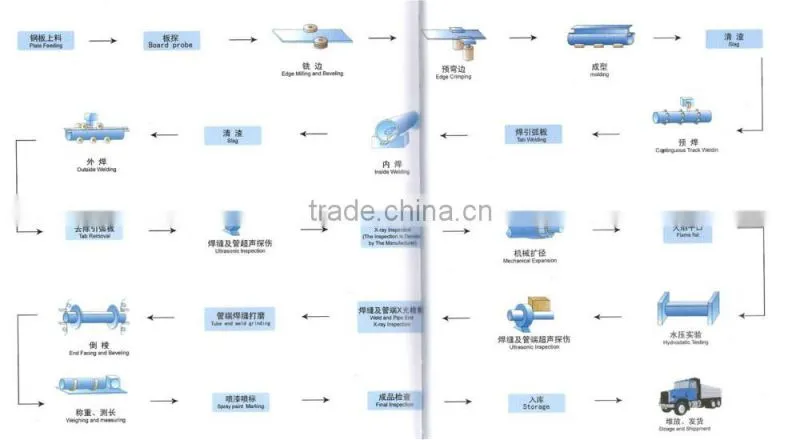

Producing Process

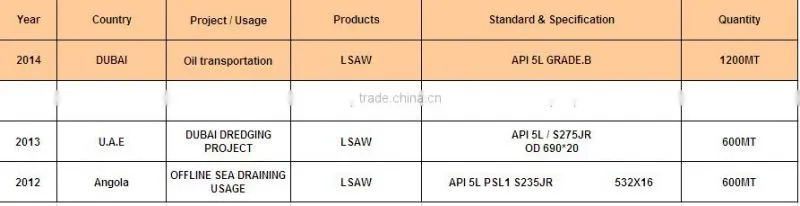

Project List
