Home > Products > Drip irrigation machine > ZQSJ-65/33 High Speed Flat Dripper PE Drip Irrigation Pipe Line
ZQSJ-65/33 High Speed Flat Dripper PE Drip Irrigation Pipe Line
- Qingdao
- T/T
You May Like
-
ZQSJ-65/33 High Speed 120m/min Plastic Flat Dripper Drip Irrigation Tape Making Machine
-
High Quality 120m/min Flat Dripper Drip Irrigation Pipe Making Machinery
-
ZHENGQI Newest Style High Speed Flat Dripper Drip Irrigation Pipe Producing Unit/line
-
ZQSJ-65/33 Flat Dripper Plastic Drip Irrigation Tube Machine
-
ZQSJ-65/33 Flat Dripper pe Drip Irrigation Pipe Making Machine for Agriculture Irrigation
-
ZQSJ-65/33 High Efficient Flat Dripper Drip Irrigation Tape Production Line for Irrigation Products
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | Full-automatic | Place of Origin | Shandong, China | |
| Brand Name | ZHENGQI | Model Number | ZQSJ-65/33 | |
| Voltage | 380V/220V | Power(W) | 37KW | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.The producing speed can be 120m/min.2.Stable performance and long service life.

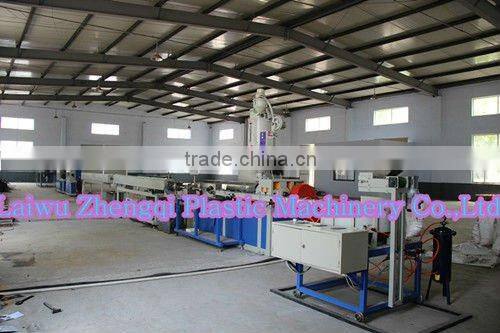

ZQSJ-65/33 Flat dripper drip irrigation pipe production line
1.Brief introduction:

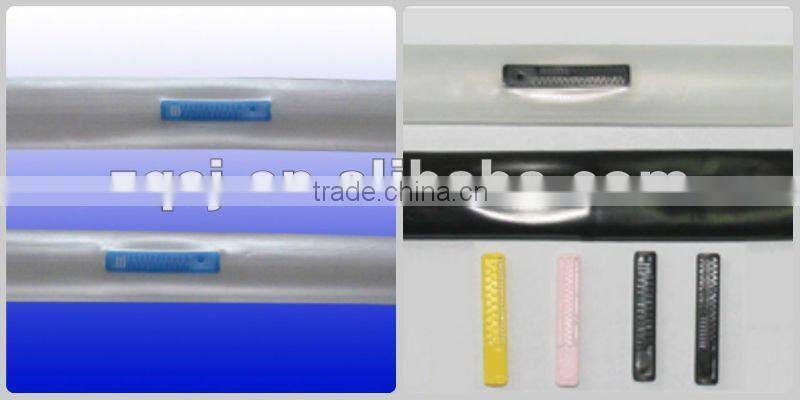

Inlaid chip drip irrigation pipe is a kind of drip irrigation pipe that inlaid with flat emitter in the inwall of the pipe.It is widely used in the irrigation of greenhouse and land for growing field crops.The feature of the products:
1. Emitter and pipe unified,it is convenient for installation and usage, low cost and small investment.
2. The emitter has inherent filtration window,it has good performance of resist blocking.
3. The machine adopts labyrinth type passageway,it has certain pressure compensation effect.
4. The space between the emitter can adjust according to the customers’requirements.
2.Product superiority:
1.This product adopts post forming technology,it has high precision.
2.New-type wide and long passageway, it has the advantage of full turbulent flow,automatic washing and strong anti blocking.
3.Optimized material formula, anti-corrosion and anti-aging.
4. Low head loss on-way,long laying length.
3.Main technical parameters:
Diameter of pipe(mm) | 12, 16 |
Wall thickness(mm) | 0.2-0.6 |
Space between the emitter(mm) | 100-2000 |
Working pressure(Mpa) | 0.08-0.22 |
Quantity of flow(L/h) | 1.38-2.2-2.7-3.0 |
Length of each roll(m) | 1000-1500-2000-2500 |
4.Final products:
