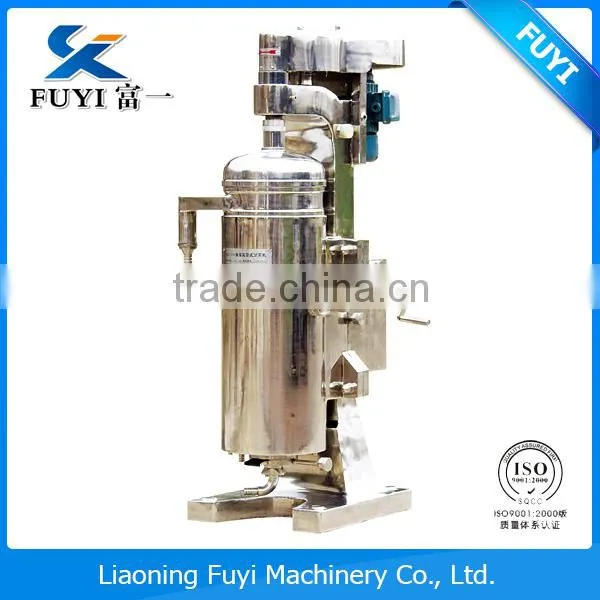

Help CenterHigh Speed Biological Type Bio-product Tubular Separator Centrifuge Machine
Related Products
-
GFSY Series Biodiesel Separator CentrifugeUS$ 1500 - 16800MOQ: 1 Set -
GQLB-Z Series Tubular Separator MachineUS$ 1500 - 16800MOQ: 1 Unit
-
GQLY Series Tubular SeparatorNegotiableMOQ: 1 Set
-
GQ/GF Series High Speed Tubular Bowl Separator for InterferonUS$ 1500 - 16800MOQ: 1 Set
-
GQ/GF Series High Speed Tubular Bowl Separator for EndoenzymeUS$ 1500 - 16800MOQ: 1 Set
tubular separator
General Description
Tubular separator is a precise separation machinery which fit for the lower solid content suspension liquid and lower small proportion dissolve liquid.It was the key machinery for the pharmaceutical,food,chemical,bio-products and beverage etc.
Based on the separation function,our company have two type separator:Clarify GQ and Separation GF.GQ series tubular separator is mainly used for liquid and solid separation and GF series works on the three phase separation including the light liquid,heavy liquid and solid.
For various application and machinery operation,the tubular separator is categorized:General purpose,special type(Laboratory model,Chinese Medicine Clarification,Blood separator,Bacteria type,Biodiesel type),Explosion-proof type,Fully sealing explosion-proof type,Cooling type,Swing type,Front open type.
tubular separator
Main Parameter :
| Type | 75 | 105 | 125 | 150 |
| Diameter (mm) | 75 | 105 | 125 | 142 |
| Bowl Speed (r/min) | 19000 | 16300 | 15000 | 13400 |
| Bowl Volume (L) | 2.2 | 6 | 8 | 10 |
| Separating Factors (ω2.r/g) | 15700 | 15620 | 15750 | 15700 |
| Though output Capacity (L/h) | 600 | 1200 | 1500 | 2500 |
| Motor Power (kw) | 1.5 | 2.2 | 3.0 | 3.0 |
| Weight (kg) | 300 | 570 | 610 | 665 |
| Dimension(mm) L×W×H | 760×450×1120 | 840×500×1600 | 900×550×1600 | 1020×600×1600 |
Notice:
GQ: separator for liquid-solid
GF: separator for liqudi-liquid-solid
every parts of the centrifuge is made by ourself except for the machine body molding, thus it keep the centrifuge quality we can control by ourself as well and keep the long-time running without problem .
From the spindle to the separator bowl , each technics have at least more than 30 step to finish a parts .
tubular separator

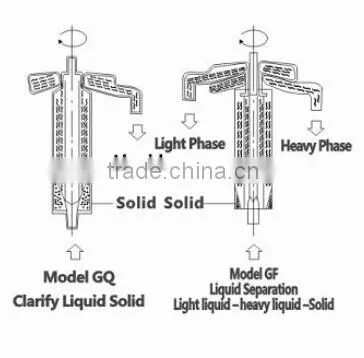

Separation theorem
Tubular separator is a high-speed precise,energy efficiency,environmental machinery within the all separation machinery.To achieve the separation purpose by the different material liquid proportion based the centrifugal force.As photo show the raw material liquid is feeding by the lower of the separator and outlet by the upper machine body and the solid remain the bowl inner surface by the high centrifugal force.
APPLICATION
Bio-product tubular separator is one kind of tubular separator series which is specially designed for biological production industry.in view of the great viscosity small volume and difficult separation features etc, this separator has been improved on the original general type in order to raise efficiency and increase output .
And in view of the requirements of low temperature for biological making product cooling unit can be installed in order to meet the technological requirements .Check valve and bowl lining can be used in order to ensure bacteria alive and to prevent the materials from bacterial contamination in the bacterial separation technology.
Liaoning Fuyi Machinery Co.,Ltd.was established in June 2011 formerly known as Liaoning Sunny Pharmaceutical Machinery Co.,Ltd.which was National Separation Machinery Standardization Board Member and China General Machinery Industry Association Director.Today the company is the leader in mechanical separation technology in China.
Fuyi is specializing in the production and design of centrifuge,separator and filter equipment which is a high-tech enterprise combine with R&D,Manufacturing,market prompting and sale.
The company cover more than 60 acres including the advanced production workshop,office,research center and test lab.
Fuyis president was the first developer and designed Chinese First Tubular Separator who won many national reward.The “tubular separator”National Standardization,currently in effect is drafted by our company.The company is certified in accordance with ISO9001:2008.
Fuyi Separator provide solution to all technological problems of liquid and solid with more than 30 years experience in centrifugal separation market.For better separation result,every series products is designed and manufactured based on the different liquid material thus customer can achieve perfect separation performance.
Separator and centrifuge made by Fuyi Separator are widely used below the range of areas
1.Pharmaceutical bio-tech and medicine
2.Food and Dairy
3.Chemical various oil
Fuyi Separator promise to provide the most professional technology and advanced quality product for global customers.
We made the standard,we beyond it.
