Codeine Disc Stack Centrifuge

Fuyi-tech Disc Stack Centrifuge technolog can provide customer the best Made-in-China Centrifuge and separator . We are not only enrich only the separator and centrifuge technics but aslo have experiences for variety of different industry technics . Any questions or problem please contact us by further support.

Pharmaceutical Biotechnology Model No. DCFPB

Human vaccines and veterinary vaccines

Insulin from biomass

Enzymes

Starter cultures(bacteria cultures)

Human blood proteins

Synthetic pharmaceutical products

Animal cell cultures

Extraction

Essential oils

Alkaloids

Antibiotics

Aromatic substances

Fragrances

Medicinal teas

Organ extracts

Pectins

Herbal medicines

Statins

Steroids,hormones

Vitamins

Polycarbonate

Pharmaceuticla Centrifuge Performance

The actual throughputs depend on variables such as the amount and type of solid , the temperature , viscosity and degree of separation required. The following figures indicate the rate of performance, although no guarantees are given.

Fuyi Centrifuge Separator representatives or sale man will be please to provide you with further information and details.

Pharmaceuticla  Decanter Centrifuge Out-shape

Pharmaceuticla  Disc Stack Centrifuge

Pharmaceuticla Tubular Separator Out-shape

Centrifuge machine Standard design

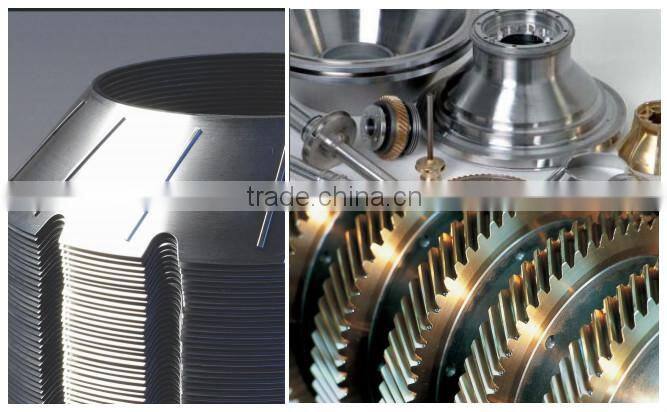

The machine consists of a frame that has a horizontal drive shaft with clutch and brake, worm gear , lubricating oil bath and vertical bowl spindle in the lower part.

The bowl is mounted on top of the spindle in the lower part. The bowl is mounted on top of the spindle , inside the space formed by the upper parts of the frame , the ring solid cover, the collecting cover, and frame hood . The feed and liquid discharge system , including the paring disc pump for the heavy phase, also rests on this structure. All parts in contact with the process liquid are made of stainless steel. The bowl is of the solid-ejecting disc type with hydraulic operating system. The electric motor is of the variable frequency drive type or of controlled-torque type.

Basic equipment

Concentrator or purifier parts, inlet and outlet devices, revolution counter, set of erosion-protective parts ,illuminated sight glass box for light phase outlet , vibration switch , vibration-isolating base plate , flange motor, set of tool and standard set of spare.

Optional extras

Started equipment, frequency converter, discharge control panel, standard set of fittings, set of CIP valves and fittings and serviceability package for online viewing of separator status

Material data

Bowl body , hood and locking ring S.S304

Solids cover and frame hood S.S

Frame bottom parts green cast iron , cald with

In and outlet parts S.S

Gasket and o-ring Nitrile rubber

Operating principles

Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe (1),and is accelerated in the distributor(2),which was specially designed to ensure smooth acceleration of the feed liquid(4). Leaving the distributor, the feed enters the disc stack(3). The separation into liquid-liquid-solid takes place between the discs, with the oil phase moving through the disc stack to the centre. When it reaches the centre, it is discharged through hole (5) and ejected into the collecting frame. The water and heavy solid separated from the oil move to the periphery, and the water flows via channels in the top disc(6) to the paring chamber, where it is pumped out of the rotor by means of a built-in paring disc(7).During purification, hot water is fed into the inlet of the bowl before the process liquid is introduced. The water forms a seal around the outer edge of the top disc. The solid collect in the periphery where they are discharged intermittently via the centrifuge cyclone. The solid are discharged by means of a hydraulic system, which forces the sliding bowl bottom(8)to drop down at preset suitable intervals, thus opening the solid ports at the bowl periphery

Centrifuge machine Main Parameter
